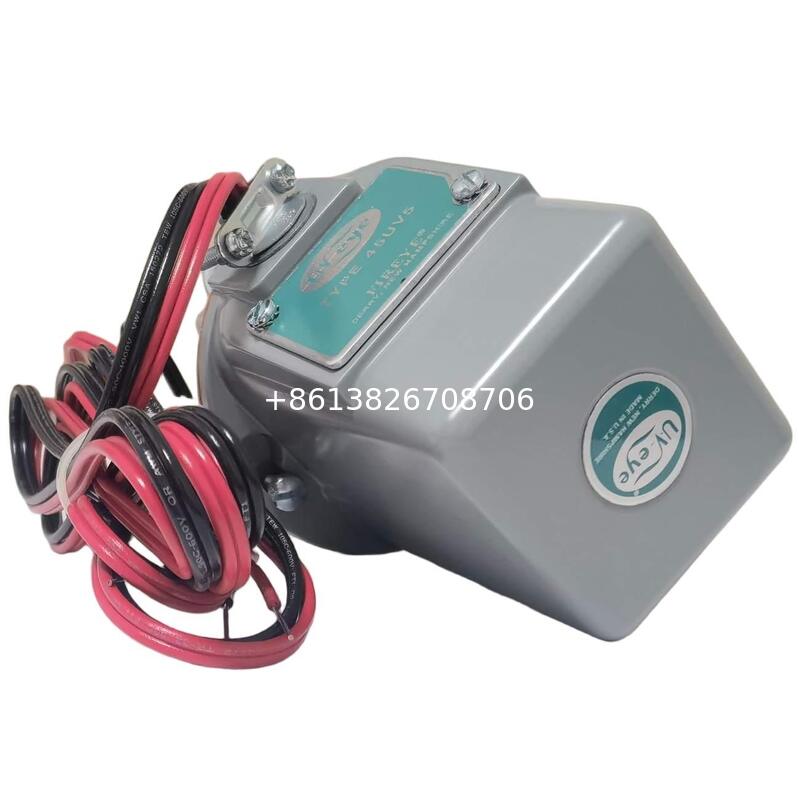

The FIREYE 45UV5-1103 Flame Scanner is a high-sensitivity ultraviolet (UV) flame detector designed for reliable flame monitoring in industrial burners and combustion systems. It is typically used with compatible FIREYE flame safeguard controls to ensure safe start-up, continuous supervision, and secure shutdown of gas, oil, or combination burners.

Using UV sensing technology, the 45UV5-1103 can distinguish the presence or absence of flame within milliseconds. This fast response helps protect boilers, furnaces, incinerators, and process heaters from dangerous conditions such as fuel buildup, misfires, or flameouts. The scanner is housed in a rugged enclosure suitable for harsh industrial environments, providing stable performance even under high temperature and vibration conditions.

In combustion safety systems, reliability matters more than marketing poetry. The 45UV5-1103 is engineered as a practical workhorse: easy to install, straightforward to wire, and designed to integrate into existing FIREYE control systems with minimal modification.

2. Key Features and Technical Highlights

• UV flame sensing technology for gas and light-oil flames

• Fast flame detection and loss-of-flame response, supporting rapid safety shutdown

• Compatible with FIREYE flame safeguard and burner management systems

• Designed for continuous 24/7 operation in industrial environments

• Rugged housing for high-temperature, high-vibration conditions

• Simple electrical connection and mechanical mounting

• Supports precision flame discrimination to reduce nuisance trips

3. Technical Data Table

Below is a general technical summary table for easy reference. (Exact values can vary slightly by system configuration; always refer to your official FIREYE documentation for final design.)

4. Working Principle

The FIREYE 45UV5-1103 uses a UV-sensitive tube or solid-state sensor that responds to the ultraviolet radiation naturally emitted by a stable gas or light-oil flame. This UV energy is invisible to the human eye but can be detected electronically.

The basic process:

1. The scanner “looks” at the flame through a sight port or viewing sleeve.

2. When flame is present, UV radiation hits the sensor.

3. The sensor generates an electrical signal proportional to the flame intensity.

4. This signal is transmitted to the connected FIREYE flame safeguard control.

5. The control validates the flame signal and allows fuel valves to remain open as long as a proper flame is detected.

6. If the flame goes out or drops below a safe threshold, the signal disappears and the flame safeguard initiates a safe fuel shutoff.

By relying on UV energy instead of visible light, the 45UV5-1103 helps to avoid false readings from hot refractory surfaces, ignition sparks, or ambient light sources. This improves safety and reduces nuisance trips, especially in complex combustion chambers.

5. Typical Applications

The 45UV5-1103 is suited for a wide range of industrial combustion systems where precise and dependable flame detection is required:

• Steam boilers and hot water boilers in power plants, hospitals, and industrial facilities

• Process heaters and furnaces in petrochemical and refinery environments

• Heat-treating and metallurgical furnaces in steel and metal processing plants

• Industrial ovens and dryers used in food, textile, or coating industries

• Incinerators and waste-to-energy systems, where flame stability is critical

In each of these systems, the scanner plays a crucial role in the overall burner management system (BMS), ensuring that fuel is only admitted when a confirmed flame is present.

6. Benefits for Operators and Engineers

1. Enhanced Safety
The primary task of the 45UV5-1103 is simple and serious: prevent fuel from flowing without flame. This is essential to avoid explosions, furnace damage, and unplanned downtime. Its fast reaction to flame failure supports timely shutdown, allowing the system to purge and restart under controlled conditions.

2. High Reliability in Harsh Environments
Industrial burners do not live in gentle places. Temperatures are high, vibration is common, and dust or fumes may be present. The 45UV5-1103 is designed with these realities in mind, offering a robust mechanical housing and stable UV sensing to maintain consistent performance over long service periods.

3. Reduced Nuisance Trips
False flame failures cost time and money. With proper installation and alignment, the UV technology used in this scanner helps to distinguish genuine flame signals from background radiation, sparks, or hot surfaces. That means fewer unnecessary shutdowns and more productive operating hours.

4. Compatibility and Integration
The 45UV5-1103 is designed to work seamlessly with FIREYE flame safeguard controls and burner management systems. This simplifies wiring, commissioning, and troubleshooting, because the scanner and control platform come from the same design family.

5. Serviceability
The device typically allows straightforward access for cleaning and inspection. Maintenance technicians can remove the scanner, check the lens or viewing window, clean soot or contaminants, and reinstall it without major dismantling of the burner assembly.

7. Installation and Commissioning Considerations

To get the best out of the FIREYE 45UV5-1103, some practical engineering rules apply:

• Proper sighting: The scanner should have a clear, unobstructed view of the main stable portion of the flame, not just the ignition spark.

• Avoid direct view of refractory: Excessive view of hot refractory can sometimes influence UV detection, so the sighting angle should be selected to focus on the flame core.

• Secure mounting: Use the recommended mounting hardware and ensure the scanner is firmly fixed to handle vibration from fans, burners, or boiler shells.

• Cable routing: Signal and power wiring should be routed away from high-voltage ignition leads or heavy power cables to reduce electrical noise.

• Periodic checks: Flame scanners are safety devices; periodic tests and calibration checks should be included in the plant’s preventive maintenance schedule.

Proper commissioning typically involves verifying that the flame signal is strong and stable in normal operation, then confirming that fuel is shut off quickly on intentional flame failure tests.

8. Why Choose FIREYE 45UV5-1103

In industrial combustion systems, a flame scanner is not a decorative accessory; it is a critical safety component. Choosing the FIREYE 45UV5-1103 offers:

• A proven UV detection technology widely used in industry

• Integration with well-known FIREYE burner control platforms

• Mechanical robustness suited for long-term service

• Improved flame discrimination, supporting safe and efficient burner operation

For engineers, maintenance teams, and plant operators, the 45UV5-1103 provides a clear value: reliable flame detection with a straightforward design, minimizing both risk and unnecessary complexity.
