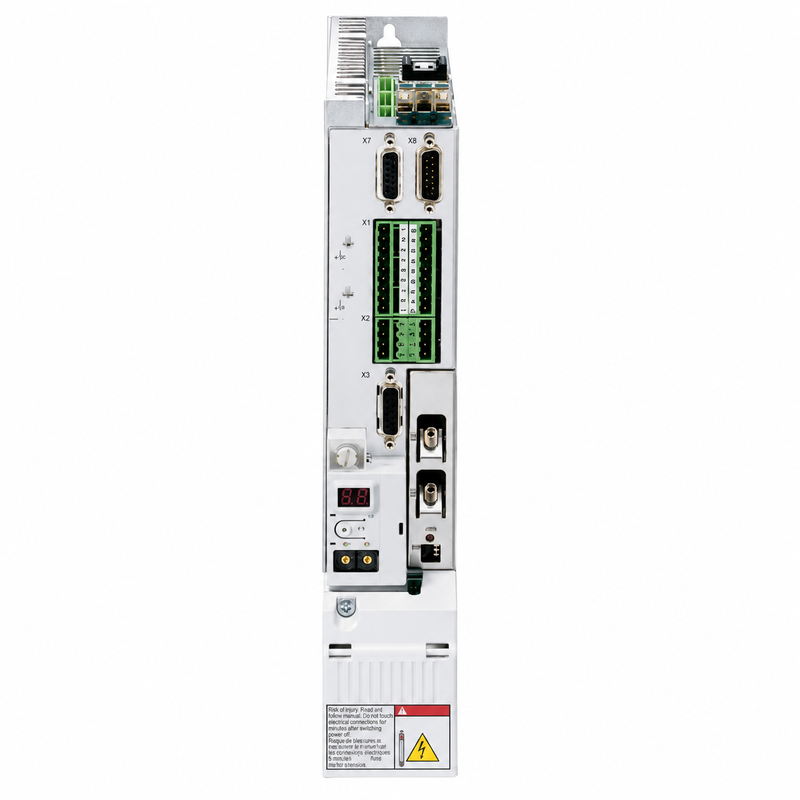

Rexroth DKC22.3-040-7-FW ECODRIVE 03 Servo Drive Controller
| Place of Origin | Germany |
| Brand Name | Rexroth |
| Certification | CE |
| Model Number | DKC22.3-040-7-FW |
DKC22.3-040-7-FW ECODRIVE 03 Servo Drive Controller
The Rexroth Indramat DKC22.3-040-7-FW is listed for spare-part enquiries relating to installed ECODRIVE 03 motion systems. This page identifies the complete drive designation so overseas maintenance teams, machine builders and industrial buyers can request the correct legacy component. The full code is the starting point for selection; the actual hardware revision, firmware and connected equipment must also be reviewed before a unit is offered.
For an existing machine, retaining the correct drive generation and command interface helps narrow the search and reduces avoidable ordering mistakes. A similar appearance or a matching current code does not establish interchangeability. Please use the complete DKC22.3-040-7-FW designation in your enquiry and send clear photographs of the original nameplate and front connections.
Product Identification and Technical Profile
| Complete Model | DKC22.3-040-7-FW |
|---|---|
| Product Family | ECODRIVE 03 |
| Product Type | Digital AC servo drive controller |
| Design Series | DKC22.3 |
| Current Class Code | 040; continuous and peak ratings require model-specific verification |
| Voltage Class Code | 7; verify actual mains and DC-bus ratings |
| Command Interface | SERCOS optical interface 2 |
| Firmware Identification | FW; installed firmware version to be confirmed |
| Motor Matching | Match installed motor, feedback and parameter set |
| Installation | Control cabinet mounting; verify dimensions and cooling clearance |
| Supply Condition | Legacy genuine spare part; actual condition and availability confirmed on request |
Drive Family and Interface Matching
This listing belongs to ECODRIVE 03, design series DKC22.3. Its command-interface profile is SERCOS optical interface 2. The interface must match the machine control architecture, wiring and software configuration. Verify the connector arrangement and the controller-side communication settings against the installed drive and the relevant project documentation. This is an ECODRIVE servo drive controller listing. Identification should follow the DKC nameplate and the corresponding drive documentation rather than a general PLC or control-section description.
The 040 and 7 fields are retained as type-code identifiers. They should not be used on their own to determine continuous output current, input voltage or motor power. Electrical ratings, cabinet conditions and permissible loading must be checked for the specific drive variant and installation.
Firmware, Parameters and Included Parts
The FW suffix identifies a firmware-dependent drive designation; it does not confirm which firmware release or software module is installed in an available unit. Before quotation, please specify the software reference currently used by the machine, any parameter backup and the required included items. Firmware modules, terminal plugs, covers, cables and documentation are included only when expressly listed in the offer.
Parameter transfer, drive commissioning and machine validation depend on the existing system. The buyer should have the original settings available and arrange installation by personnel familiar with the machine. A complete hardware match still requires verification of motor feedback, control signals and application parameters before returning the axis to service.
Information to Send with Your Enquiry
- Full model: DKC22.3-040-7-FW, with a readable nameplate photograph.
- Any material number shown on the original unit, hardware change index and serial label.
- Installed firmware identification and available parameter or project backup.
- Connected motor designation, feedback type and command-interface details.
- Required condition, quantity, included accessories and delivery destination.
These details allow the offered unit to be compared with the original equipment. If the supplied photographs or records are incomplete, the matching points will be listed for clarification. A material number will only be confirmed against appropriate documentation and the actual unit; a number from a different drive or motor will not be assigned to this product by assumption.
Condition, Price and Delivery
This is a legacy genuine spare-part sourcing listing. Availability, condition, completeness and any inspection information are confirmed for the actual unit before order acceptance. Please request a quotation for the required unit. Please refer to the transaction fields and the final quotation for order quantity and supply arrangements.
Dispatch timing and non-stock sourcing are confirmed with the quotation. Packaging and transport arrangements are confirmed with the quotation. Please request photographs and the available condition information for the actual offered item before purchasing.
Request a Quote for DKC22.3-040-7-FW
Send the full type code, nameplate photographs and machine matching requirements to request a model-specific offer. The quotation will state the actual condition, included parts, confirmed price and agreed lead time. This listing does not establish manufacturer authorization, a fixed stock quantity, a warranty period or compatibility with an unreviewed installation.
