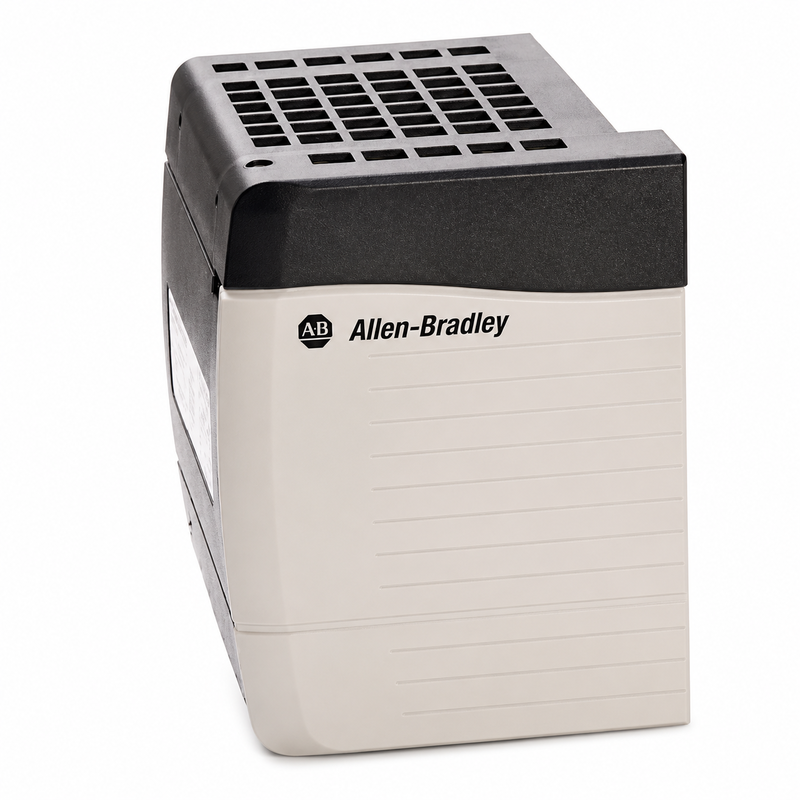

1756-OF8 ControlLogix Analog Output Module for PLC Control Panels
| Place of Origin | USA |
| Brand Name | ControlLogix Controllers |
| Certification | CE |
| Model Number | 1756-OF8 |
Product Overview
1756-OF8 is a ControlLogix analog output module used in 1756 PLC control systems, process automation panels, machine control cabinets, and factory maintenance replacement projects. It is designed to send analog command signals from the PLC system to field devices such as control valves, variable speed drives, actuators, proportional valves, signal converters, and other process control equipment.
This module is suitable for applications where continuous analog control is required instead of simple on/off output. It is commonly used in process control loops, production machinery, utility systems, extrusion equipment, water treatment panels, packaging machines, and industrial automation cabinets.
Main Features
- ControlLogix 1756 series analog output module
- Used for analog voltage or current output applications
- Suitable for PLC control panels and process automation systems
- Supports field device control such as valves, drives, and actuators
- Useful for replacement, maintenance, and system expansion projects
Technical Specifications
| Model | 1756-OF8 |
| Product Type | ControlLogix Analog Output Module |
| Series | ControlLogix 1756 |
| Function | Analog Signal Output |
| Typical Signal Type | Voltage or Current Output, subject to configuration |
| Mounting | Installed in 1756 PLC Chassis |
| Application | PLC Process Control Output |
| Software Check | Confirm Studio 5000 project and module profile |
Compatible System and Chassis Use
1756-OF8 is used in ControlLogix 1756 chassis systems together with controllers, communication modules, power supplies, terminal blocks, and other I/O modules. Before replacement, users should confirm the installed chassis, slot position, terminal block model, field wiring method, signal type, load requirement, and project configuration.
Industrial Applications
This module is commonly used in water treatment systems, process skids, packaging lines, extrusion machines, utility control panels, material handling equipment, and manufacturing production lines. It is suitable for analog control loops where the PLC must provide a stable command signal to field equipment.
Maintenance and Replacement Notes
When replacing 1756-OF8, confirm the complete catalog number, output signal type, terminal block, wiring diagram, chassis compatibility, and original nameplate. Analog output faults may be related to module failure, field wiring, scaling parameters, external load problems, or incorrect configuration, so the installed system should be checked before ordering.
Related Models
Related models include 1756-OF4, 1756-OF6CI, 1756-OF6VI, 1756-OF8, and 1756-OF8I. These models may differ by channel count, voltage output, current output, isolation, wiring method, or terminal block requirement.
Inquiry and Supply Notes
DF Automatic supplies ControlLogix analog output modules, analog input modules, digital I/O modules, PLC controllers, communication modules, power supplies, chassis, terminal blocks, and industrial automation spare parts for factory maintenance, equipment repair, and spare parts replacement.
