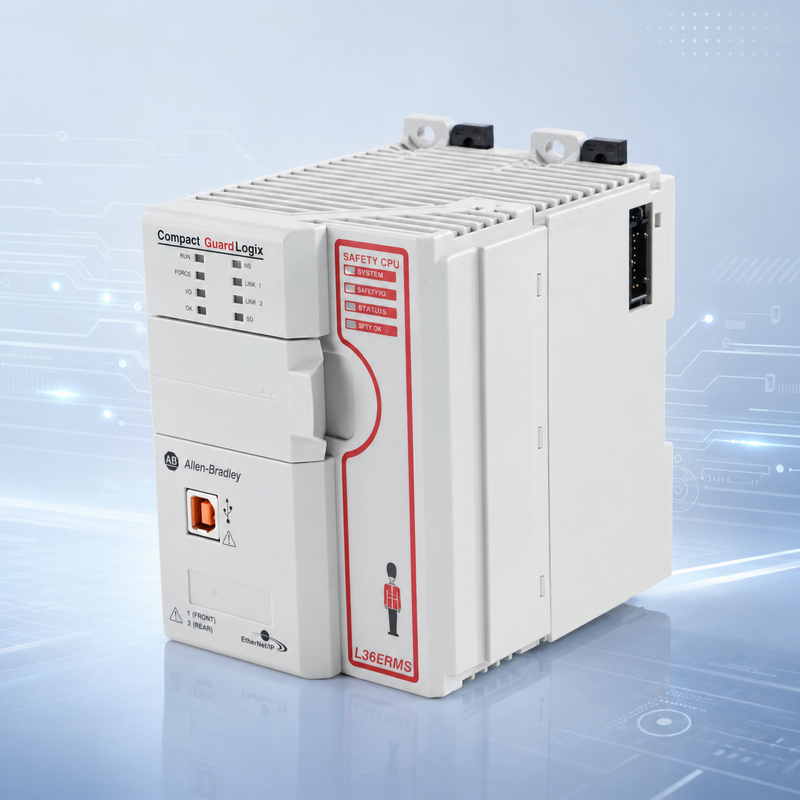

5069-L350ERMS2 Compact GuardLogix 5380 SIL2 High-Capacity Motion Safety Controller
| Place of Origin | USA |
| Brand Name | ControlLogix Controllers |
| Certification | CE |
| Model Number | 5069-L350ERMS2 |
Product Overview
5069-L350ERMS2 is a Compact GuardLogix 5380 SIL2 high-capacity motion safety controller used in larger machine automation systems, production line safety control, compact PLC cabinets, and factory automation applications. It provides higher memory, greater node capacity, and expanded motion capability compared with lower-capacity 5069 safety controller models.
This model is suitable for users who need a current-generation compact safety controller for machine control, motion coordination, safety functions, Ethernet communication, and modular 5069 I/O expansion. It is a strong product page for current platform searches and for migration planning from older 1769 or 1768 safety systems.
Main Features
- Compact GuardLogix 5380 SIL2 high-capacity safety controller
- Motion safety controller version for advanced machine applications
- 5 MB standard memory and 2.5 MB safety memory
- Supports up to 120 EtherNet/IP nodes, subject to system design
- Suitable for production lines, large machines, and safety automation systems
Technical Specifications
| Model | 5069-L350ERMS2 |
| Product Type | Compact GuardLogix Motion Safety Controller |
| Series | Compact GuardLogix 5380 |
| Safety Level | SIL2 / PLd, Category 3 |
| Standard Memory | 5 MB |
| Safety Memory | 2.5 MB |
| EtherNet/IP Nodes | 120 Nodes |
| Local I/O Support | Up to 31 local 5069 Compact 5000 I/O modules |
| Motion Axes | Up to 24 axes, subject to project design |
| Communication | Dual 1 Gb EtherNet/IP + USB |
| Software Check | Confirm Studio 5000 project, firmware, safety task, and motion configuration |
Compatible System and Chassis Use
5069-L350ERMS2 is used in 5069 Compact GuardLogix systems with compatible 5069 Compact 5000 I/O modules, power modules, terminal blocks, Ethernet networks, safety devices, servo drives, and machine control hardware. Before replacement or project selection, users should confirm node capacity, local I/O quantity, safety memory, motion axes, firmware revision, and Studio 5000 project compatibility.
Industrial Applications
This controller is used in large packaging machines, material handling systems, automated assembly lines, conveyor networks, production cells, safety guarding systems, servo-controlled machines, robotic cells, and industrial automation systems requiring compact but higher-capacity safety control.
Maintenance and Replacement Notes
When replacing 5069-L350ERMS2, users should verify the full catalog number, firmware version, safety task, safety signature, motion axis configuration, Ethernet settings, local I/O layout, node capacity, and original product label. For migration from older controller platforms, the controller, I/O modules, wiring, safety validation, and project conversion should be reviewed before ordering.
Related Models
Related models include 5069-L350ERS2, 5069-L350ERMS2, 5069-L350ERMS2K, 5069-L320ERMS2, 5069-L330ERMS2, 5069-L350ERMS3, and 5069-L380ERM. These models may differ by safety level, memory capacity, node capacity, motion support, conformal coating, or platform generation.
Inquiry and Supply Notes
DF Automatic supplies Compact GuardLogix 5380 controllers, CompactLogix controllers, 5069 Compact I/O modules, power modules, terminal blocks, safety I/O modules, and industrial automation spare parts for machine safety systems, factory maintenance, and equipment repair.
