Schneider ELAU VIA1003C31F0000 PacDrive iSH100/30058 Intelligent Servo Module
| Place of Origin | Germany |
| Brand Name | Schneider |
| Model Number | VIA1003C31F0000 |
Product Overview

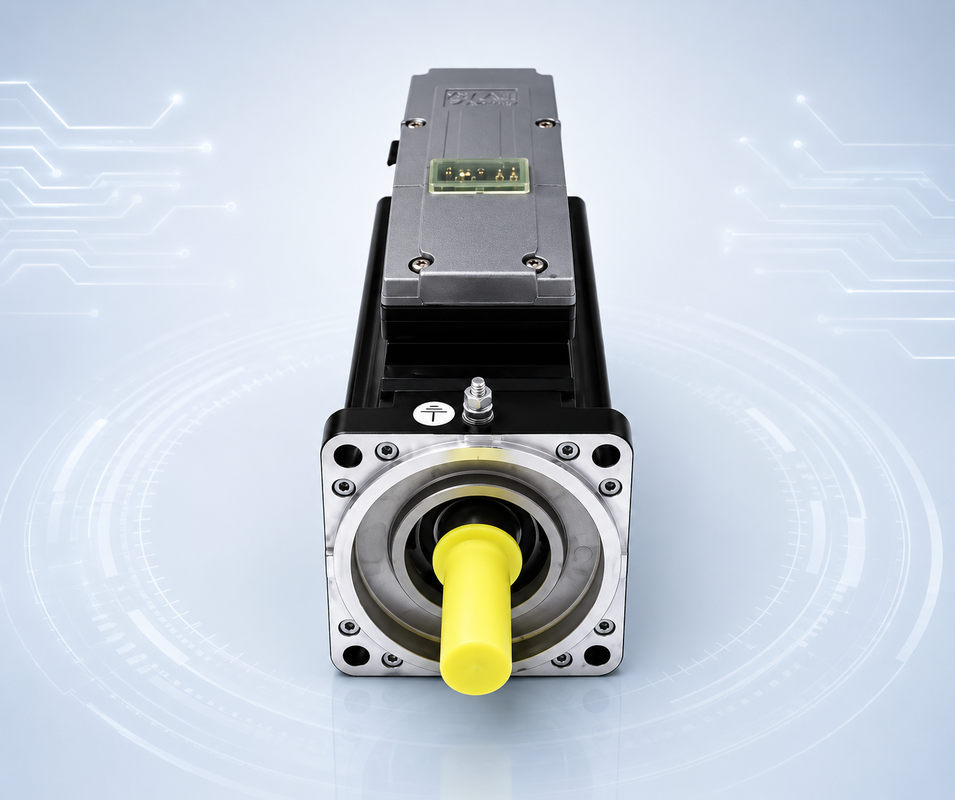

Schneider ELAU VIA1003C31F0000 is a PacDrive iSH100 intelligent servo module used in packaging machines, multi-axis motion systems, production lines, and legacy PacDrive M automation systems. Its core model is iSH100/30058, and the full technical type is iSH100/30058/0/1/00/0/10/01/00.
This model is a high-torque iSH100/30058 variant with keyed steel shaft, shaft seal, SKS36 singleturn feedback, and holding brake. It is suitable for exact-model upload because users searching this VIA number usually need a direct replacement for an installed machine axis.
Main Features
- PacDrive M iSH100 intelligent servo module
- Commercial reference VIA1003C31F0000
- Core model iSH100/30058
- 1.1kW rated power and 3000 rpm rated speed
- 5.8 Nm standstill torque and 28.3 Nm peak torque
- Keyed steel shaft with shaft seal
- SKS36 singleturn SinCos feedback
- With holding brake
- Integrated SERCOS interface for distributed PacDrive systems
Technical Specifications
| Commercial Ref. | VIA1003C31F0000 |
| Core Model | iSH100/30058 |
| Full Technical Model | iSH100/30058/0/1/00/0/10/01/00 |
| Brand | Schneider ELAU |
| Series | PacDrive M iSH100 |
| Product Type | Intelligent Servo Module / Integrated Servo Drive Motor |
| Rated Power | 1.1 kW |
| Rated Speed | 3000 rpm |
| Standstill Torque | 5.8 Nm |
| Rated Torque | 3.5 Nm |
| Peak Torque | 28.3 Nm |
| Shaft Configuration | Keyed steel shaft |
| Protection | Shaft seal IP65 / IP65 housing |
| Encoder | SinCos SKS36 singleturn |
| Holding Brake | Yes |
| Communication | Integrated SERCOS interface |
| Required Power System | PS-5 power supply + DB-5 distribution box |
| Approx. Weight | 8.9 kg |
| Motor Length A | 279 mm |
| Shaft Diameter | 19 mm |
| Key Specification | DIN 6885-A 6x6x30 |
Compatible System and Applications
VIA1003C31F0000 is used in Schneider ELAU PacDrive M systems with compatible motion controllers, PS-5 power supplies, DB-5 distribution boxes, SERCOS motion networks, HMI panels, and machine I/O. Typical applications include packaging machinery, filling lines, wrapping equipment, cartoners, conveyors, indexing systems, and synchronized servo production equipment.
Maintenance and Replacement Notes
When replacing VIA1003C31F0000, confirm whether the installed machine requires SKS36 singleturn feedback. It should not be replaced with a multiturn version unless the controller project and axis settings are compatible. Also confirm the brake circuit, shaft seal, cable set, firmware, mechanical coupling, and PacDrive controller configuration.
Related Models
Related iSH100/30058 models include VIA1003C31F0000, VIA1003C32F0000, VIA1003C31A0000, VIA1003C32A0000, VIA1003C21F0000, VIA1003C22F0000, VIA1003C11F0000, VIA1003C12F0000, VIA1003C01F0000, and VIA1003C02F0000. These models may differ by encoder type, brake, shaft seal, shaft design, and commercial suffix.
Inquiry and Supply Notes
DF Automatic supplies Schneider ELAU VIA1003C31F0000 intelligent servo modules, VIA1003C32F0000 modules, PacDrive iSH100 modules, C200 and C600 controllers, power supplies, cables, HMI panels, and industrial automation spare parts for packaging machine repair and servo axis replacement.
