Schneider ELAU VIA1003C32F0000 PacDrive iSH100/30058 Intelligent Servo Module
| Place of Origin | Germany |
| Brand Name | Schneider |
| Model Number | VIA1003C32F0000 |
Product Overview

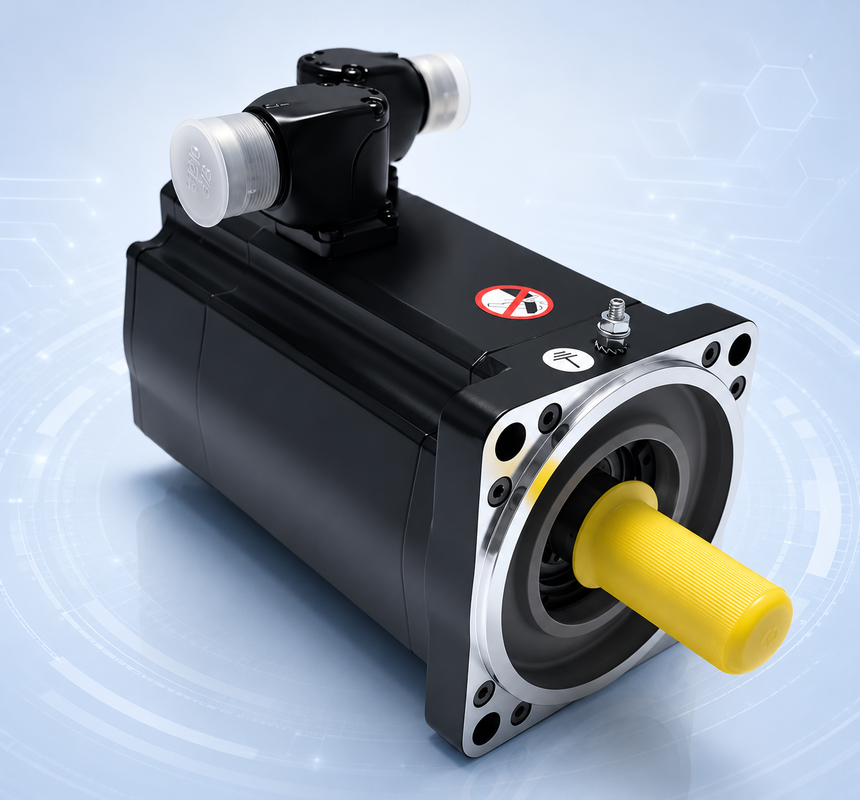

Schneider ELAU VIA1003C32F0000 is a PacDrive iSH100 intelligent servo module used in packaging machines, synchronized motion systems, production equipment, and legacy PacDrive automation systems. Its core model is iSH100/30058, and the full technical type is iSH100/30058/0/1/00/0/10/11/00.
This model is a high-value replacement part for PacDrive M distributed servo systems. It combines integrated servo electronics, SERCOS communication, keyed steel shaft, shaft seal, SKM36 multiturn feedback, and holding brake. For small industrial websites, this precise VIA model is suitable for long-tail search traffic and exact replacement inquiries.
Main Features
- PacDrive M iSH100 intelligent servo module
- Commercial reference VIA1003C32F0000
- Core model iSH100/30058
- 1.1kW rated power and 3000 rpm rated speed
- 5.8 Nm standstill torque and 28.3 Nm peak torque
- Keyed steel shaft with shaft seal
- SKM36 multiturn SinCos feedback
- With holding brake
- Integrated SERCOS interface for PacDrive systems
Technical Specifications
| Commercial Ref. | VIA1003C32F0000 |
| Core Model | iSH100/30058 |
| Full Technical Model | iSH100/30058/0/1/00/0/10/11/00 |
| Brand | Schneider ELAU |
| Series | PacDrive M iSH100 |
| Product Type | Intelligent Servo Module / Integrated Servo Drive Motor |
| Rated Power | 1.1 kW |
| Rated Speed | 3000 rpm |
| Standstill Torque | 5.8 Nm |
| Rated Torque | 3.5 Nm |
| Peak Torque | 28.3 Nm |
| Shaft Configuration | Keyed steel shaft |
| Protection | Shaft seal IP65 / IP65 housing |
| Encoder | SinCos SKM36 multiturn |
| Holding Brake | Yes |
| Communication | Integrated SERCOS interface |
| Required Power System | PS-5 power supply + DB-5 distribution box |
| Approx. Weight | 8.9 kg |
| Motor Length A | 279 mm |
| Shaft Diameter | 19 mm |
| Key Specification | DIN 6885-A 6x6x30 |
Compatible System and Applications
VIA1003C32F0000 is used in Schneider ELAU PacDrive M systems with compatible C200 or C600 motion controllers, PS-5 power supply units, DB-5 distribution boxes, HMI panels, machine I/O, and SERCOS-based motion networks. Typical applications include packaging machines, cartoning machines, wrapping equipment, filling lines, labeling systems, conveyors, indexing axes, and synchronized production machinery.
Maintenance and Replacement Notes
Before replacing VIA1003C32F0000, confirm the complete VIA reference, core model iSH100/30058, shaft type, shaft seal, encoder type, holding brake, cable set, firmware, PacDrive controller project, and axis parameters. Similar iSH100 modules may not be interchangeable if the feedback, brake, shaft seal, or machine configuration is different.
Related Models
Related iSH100/30058 models include VIA1003C32F0000, VIA1003C31F0000, VIA1003C32A0000, VIA1003C31A0000, VIA1003C22F0000, VIA1003C21F0000, VIA1003C12F0000, VIA1003C11F0000, VIA1003C02F0000, and VIA1003C01F0000. These variants may differ by shaft type, shaft seal, encoder type, brake option, and special suffix configuration.
Inquiry and Supply Notes
DF Automatic supplies Schneider ELAU PacDrive iSH100 intelligent servo modules, iSH070 modules, SM servo motors, C200 and C600 motion controllers, power supplies, cables, HMI panels, and industrial automation spare parts for packaging machine maintenance, servo axis replacement, and legacy PacDrive system repair.
