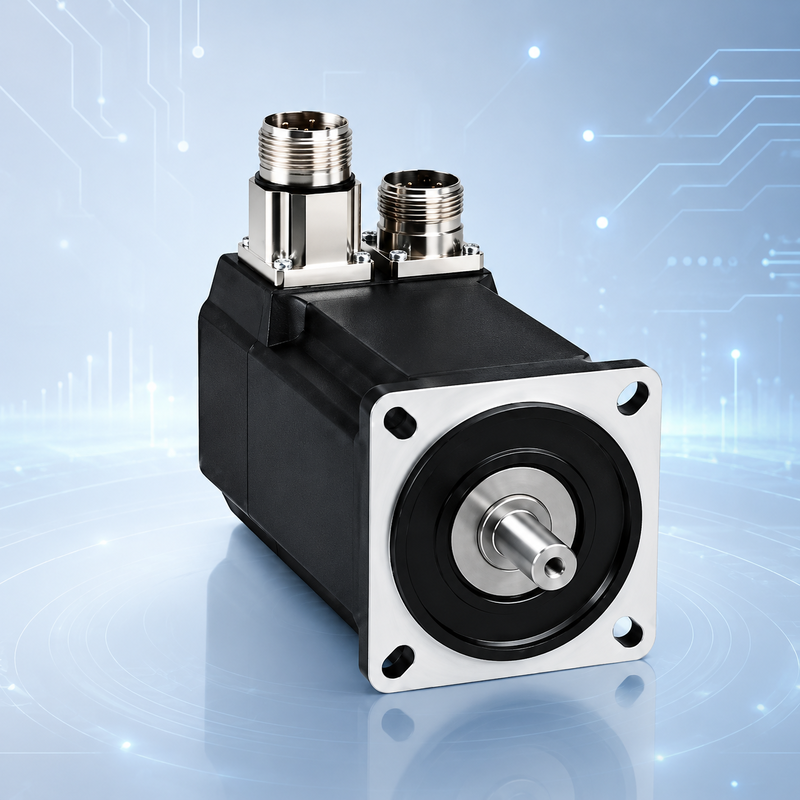

Schneider ELAU SH32053P02F2200 PacDrive SH205/20900 Servo Motor
| Place of Origin | Germany |
| Brand Name | Schneider Electric |
| Model Number | SH32053P02F2200 |
Product Overview
The Schneider ELAU SH32053P02F2200 is a high-value, enhanced-protection PacDrive SH205 servo motor corresponding to the legacy technical model SH205/20900/0/0/00/00/12/11/00 and ELAU article number 65015302V051004.
This 3-stack SH205/20900 motor provides 10.62 kW rated power at 400 V, 50.7 Nm rated torque, 94.4 Nm continuous stall torque and 330 Nm peak torque. Its rated speed is 2000 RPM, with a maximum mechanical speed of 3800 RPM.
The motor combines a smooth 38 mm shaft, SKM36 multi-turn SinCos feedback, an integrated 80 Nm holding brake, a 90-degree rotatable connector, IP65 shaft protection and an IP67 motor housing.
Main Features
- Exact commercial reference: SH32053P02F2200
- Legacy model: SH205/20900/0/0/00/00/12/11/00
- ELAU article number: 65015302V051004
- Largest SH205/20900 torque platform
- Rated power at 400 V: 10.62 kW
- Rated speed: 2000 RPM
- Maximum mechanical speed: 3800 RPM
- Rated torque: 50.7 Nm
- Continuous stall torque: 94.4 Nm
- Peak torque: 330 Nm
- Smooth 38 mm shaft
- SKM36 multi-turn SinCos encoder
- Integrated 80 Nm holding brake
- IP65 shaft protection
- IP67 motor housing
Technical Specifications
| Model | SH32053P02F2200 |
| Legacy Technical Model | SH205/20900/0/0/00/00/12/11/00 |
| ELAU Article Number | 65015302V051004 |
| Series | PacDrive SH205 / SH3 205 |
| Product Type | High-Torque Servo Motor with Multi-Turn Feedback and Brake |
| Performance Grade | 20900 |
| Motor Length | 3 Stacks |
| Rated Power at 400 V | 10.62 kW |
| Rated Speed at 400 V | 2000 RPM |
| Maximum Mechanical Speed | 3800 RPM |
| Rated Torque at 400 V | 50.7 Nm |
| Continuous Stall Torque | 94.4 Nm |
| Peak Torque | 330 Nm |
| Rated Current at 400 V | 20.4 A |
| Continuous Stall Current | 33.2 A |
| Peak Current | 136.1 A |
| Shaft Configuration | Smooth shaft |
| Shaft Diameter | 38 mm |
| Shaft Length | 80 mm |
| Encoder | SinCos SKM36 multi-turn |
| Holding Brake | Yes |
| Brake Holding Torque | 80 Nm |
| Connector Orientation | 90-degree rotatable connector |
| Protection | IP65 shaft / IP67 housing |
| Cooling | Free convection / self-cooled |
| Motor Length | Approximately 538.5 mm |
| Approximate Net Weight | 70.6 kg |
| Lifecycle | Discontinued / legacy |
Compatible System and Applications
The SH32053P02F2200 is intended for high-load PacDrive applications requiring multi-turn position feedback, a high-capacity holding brake and enhanced motor-housing protection.
Typical applications include vertical positioning systems, lifting axes, large rotary tables, heavy packaging machinery, printing and converting lines, gearbox-driven mechanisms and automated material-handling equipment.
The IP67 motor housing provides increased environmental protection, but complete machine suitability also depends on the connector installation, cable sealing, shaft interface and operating or cleaning environment.
Maintenance and Replacement Notes
Verify the full SH32053P02F2200 commercial reference, legacy model and article number. A visually similar SH205/20900 motor may have a different encoder, brake, shaft, connector or protection code.
Confirm that the installed servo drive and controller support the SKM36 multi-turn encoder. Machine-position information, encoder setup and homing procedures must be handled correctly during replacement.
The 80 Nm brake is intended to hold a stationary axis after motor torque is removed. Verify brake release, holding performance, brake supply and the controller safety sequence before operation.
Inspect the shaft, bearings, brake, connector seals, motor cable, feedback cable and protective earth. Confirm servo-drive current capacity and the complete controller project before commissioning.
Related Models
SH32053P02F2100 is the related smooth-shaft, multi-turn brake version with IP65 motor housing. SH32053P12F2100 is the related keyed-shaft, multi-turn brake configuration.
SH32053P12F2200 combines a keyed shaft, multi-turn feedback, an 80 Nm holding brake and IP67 housing. SH32053P01A2000 is the standard non-brake base reference for the SH205/20900 platform.
Inquiry and Supply Notes
Please provide photographs of the complete nameplate, shaft, brake, housing and connectors. Also provide the installed servo-drive model, controller project and motor and feedback cable references.
The exact reference, encoder, brake condition, protection code, connector orientation, product condition, testing status, availability and delivery time must be confirmed before quotation.
