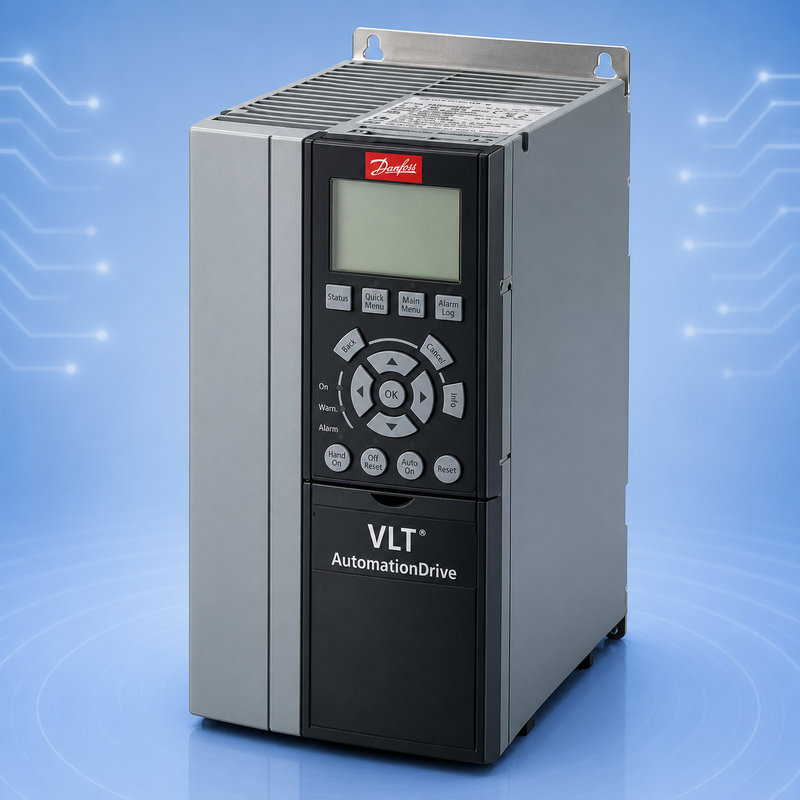

Danfoss 131B1067 FC-302P7K5T5E55H1BGXXXXSXXXXAXBXCXXXXDX VLT AutomationDrive

Product Overview

The Danfoss 131B0042 is an exact VLT AutomationDrive FC 302 frequency-converter configuration identified by the complete type code FC-302P7K5T5E20H1XGXXXXSXXXXAXBXCXXXXDX.

This model belongs to the FC-302P7K5T5 rating family and is designed for three-phase 380-500 VAC industrial motor-control applications. The P7K5 section identifies the 7.5 kW or 10 HP power class, while the E20 enclosure code identifies an IP20 chassis configuration.

Common procurement searches include 131B0042, FC-302P7K5T5E20H1XGXXXXSXXXXAXBXCXXXXDX, FC-302P7K5T5, FC302P7K5T5, Danfoss FC302 7.5kW and VLT AutomationDrive FC 302 10HP. Exact purchasing should be based on both the part number and the complete type code.

Main Features

• Danfoss commercial reference: 131B0042
• Complete type code: FC-302P7K5T5E20H1XGXXXXSXXXXAXBXCXXXXDX
• Short search model: FC-302P7K5T5
• VLT AutomationDrive FC 302 product family
• 7.5 kW / 10 HP power class
• Three-phase 380-500 VAC voltage class
• E20 IP20 chassis enclosure
• H1 RFI Class A1/B (C1) filter configuration
• No brake chopper in this configuration
• Graphical local control panel included
• Standard AX, BX, CX and DX option positions
• Exact procurement reference with measurable part-number search demand

Technical Specifications

Compatible System and Applications

The 131B0042 can be evaluated for conveyors, packaging machinery, mixers, machine tools, winding systems, material-handling equipment, pumps, fans and other industrial applications requiring controlled motor speed or torque.

The IP20 enclosure is normally intended for installation inside a suitable electrical cabinet. Cabinet protection, ventilation, cooling, contamination level, mounting clearance and ambient temperature must be evaluated separately.

Final compatibility must be determined using motor nameplate current, required overload duty, starting torque, operating-speed range, acceleration time, deceleration time and machine-control requirements.

Maintenance and Replacement Notes

For an exact replacement, match both 131B0042 and FC-302P7K5T5E20H1XGXXXXSXXXXAXBXCXXXXDX character by character.

Do not approve a replacement using only the shortened FC-302P7K5T5 reference. Other products within the same rating family may have different enclosure, RFI, braking, local-control-panel, PCB-coating, communication or expansion-option configurations.

This specific configuration does not include a brake chopper. Applications requiring dynamic braking, rapid stopping or regenerative-load control must be reviewed before substitution.

Back up the original drive parameter file before removing the installed unit. Record motor data, control mode, current limits, torque limits, acceleration and deceleration ramps, terminal assignments, fieldbus settings and machine interlocks.

Related Models

Related exact FC 302 references include 131B0037 for the 1.5 kW IP20 configuration and other FC-302P7K5T5 long-code variants with different enclosure, braking, coating or option characters.

The shortened FC-302P7K5T5 reference should be retained for broad search coverage, while the complete type code and part number control exact procurement.

Inquiry and Supply Notes

Please provide a clear photograph of the original nameplate showing the part number, complete type code, serial information and installed hardware.

Also confirm the motor data, required quantity, machine application, communication protocol, installed option cards, firmware and parameter backup.

Exact product condition, included accessories, testing scope, warranty, packaging and delivery time must be confirmed before quotation.
