Danfoss 131B0147 FC-302P1K5T5E20H2XGCXXXSXXXXAXBXCXXXXDX VLT AutomationDrive

Product Overview

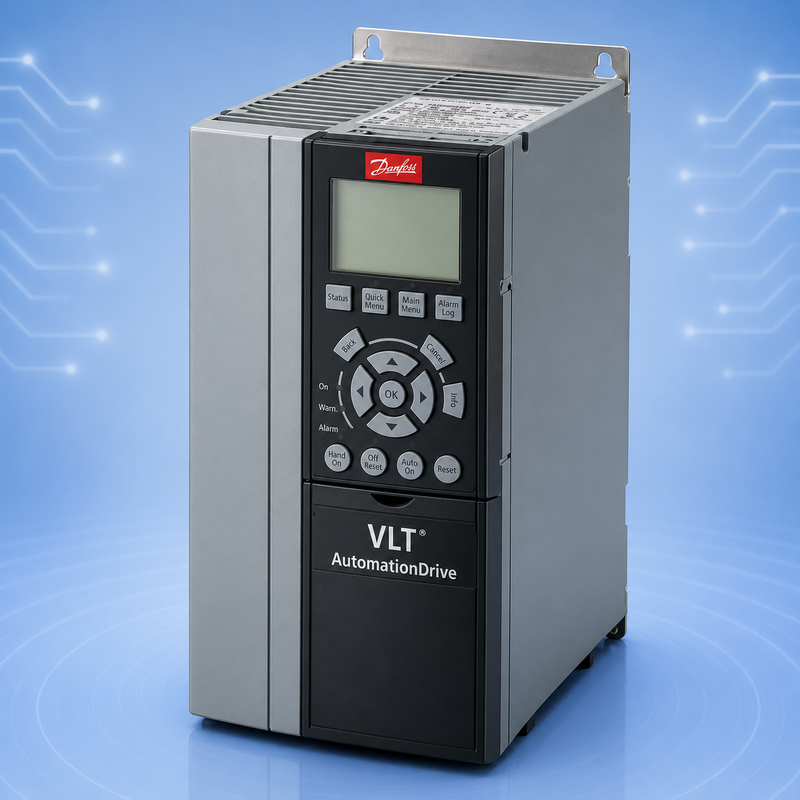

The Danfoss 131B0147 is an exact VLT AutomationDrive FC 302 frequency-converter configuration identified by the complete type code FC-302P1K5T5E20H2XGCXXXSXXXXAXBXCXXXXDX.

This drive is rated for 1.5 kW / 2 HP high-overload motor-control applications and operates from a three-phase 380-500 VAC mains supply. Its E20 enclosure code identifies an IP20 chassis unit intended primarily for installation inside a suitable electrical control cabinet.

The complete configuration includes an H2 RFI Class A2 (C3) filter, graphical local control panel and coated PCB. It does not include a brake chopper, additional mains option or additional communication and I/O expansion options.

Relevant procurement searches include 131B0147, FC-302P1K5T5E20H2XGCXXXSXXXXAXBXCXXXXDX, FC-302P1K5T5, FC302P1K5T5, Danfoss FC302 1.5kW and VLT AutomationDrive FC 302 2HP.

Main Features

• Danfoss commercial reference: 131B0147
• Complete type code: FC-302P1K5T5E20H2XGCXXXSXXXXAXBXCXXXXDX
• Short search model: FC-302P1K5T5
• VLT AutomationDrive FC 302 product family
• 1.5 kW / 2 HP high-overload power class
• Three-phase 380-500 VAC mains supply
• E20 IP20 chassis enclosure
• H2 RFI Class A2 (C3) filter
• No brake chopper
• Graphical local control panel included
• Coated PCB configuration
• No additional mains option
• No additional A, B, C or D option
• A2 frame size

Technical Specifications

Compatible System and Applications

The 131B0147 can be evaluated for compact conveyors, packaging equipment, dosing machines, mixers, winding systems, pumps, fans and other automated machinery requiring accurate motor-speed or torque control.

Final drive selection must use the motor nameplate current, required overload capability, starting torque, acceleration and deceleration cycle, minimum operating speed and installation environment.

The IP20 chassis normally requires installation inside a suitable electrical cabinet. Cabinet protection, ventilation, cooling, contamination level and mounting clearance must be evaluated separately.

Maintenance and Replacement Notes

For an exact replacement, match both 131B0147 and FC-302P1K5T5E20H2XGCXXXSXXXXAXBXCXXXXDX character by character.

Do not approve a replacement using only FC-302P1K5T5. Other 1.5 kW FC 302 variants may have an H1 filter, no local control panel, uncoated PCB, brake chopper, different enclosure or installed communication option.

This configuration does not include a brake chopper. Dynamic-braking and regenerative-load requirements must be checked before substitution.

Back up the complete parameter file before removing the installed unit. Record motor data, control mode, current and torque limits, ramp settings, terminal assignments, safety functions and fieldbus parameters.

Related Models

Related exact configurations include 131B0030 with H1 filter and no local control panel, and 131B0037 with H1 filter and graphical local control panel.

Different long type codes within the FC-302P1K5T5 family must remain separate procurement pages because their installed hardware differs.

Inquiry and Supply Notes

Please provide the complete original nameplate, motor data, required quantity, application duty, braking requirements, communication network and parameter backup.

Confirm whether the exact H2 filter, graphical LCP, coated PCB and no-brake configuration are required.

Exact product condition, included accessories, testing scope, firmware, warranty, packaging and delivery time must be confirmed before quotation.
