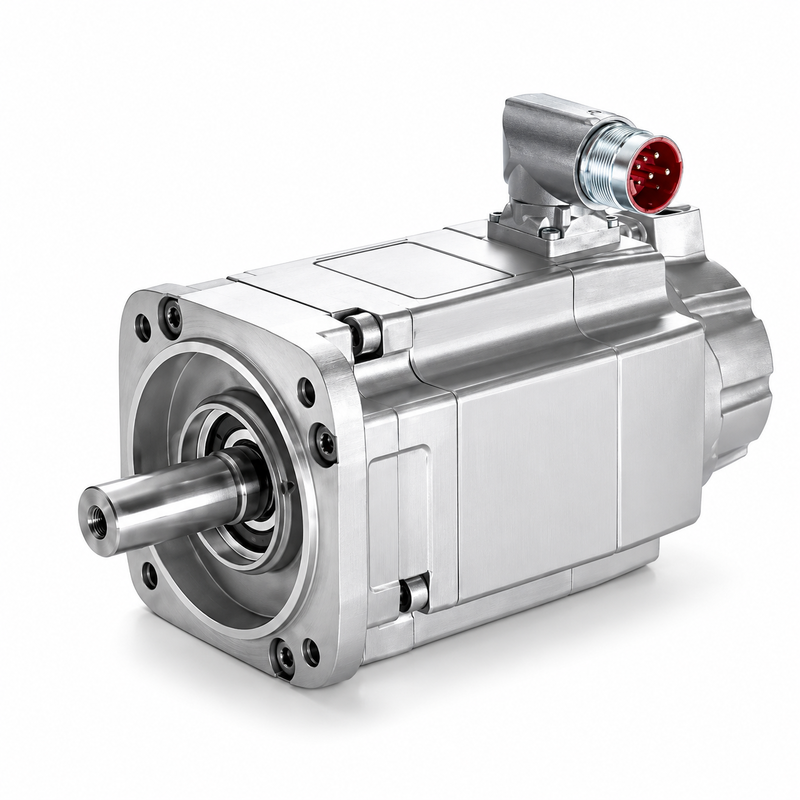

1FK7022-5AK71-1LH5 1FK7 Compact Synchronous Servo Motor
| Place of Origin | Germany |
| Model Number | 1FK7022-5AK71-1LH5 |
Product Overview
The 1FK7022-5AK71-1LH5 is a compact permanent-magnet synchronous servo motor for automated equipment and precision motion systems. Its compact format makes it suitable for applications where installation space is limited and controlled machine movement is required.
Motor selection must be based on the complete model because different 1FK7022 variants may use different feedback, brake, shaft and connector arrangements.
Main Features
- Compact permanent-magnet synchronous servo motor
- Suitable for precision positioning applications
- Designed for closed-loop motion control
- Applicable to compact machine axes and automation equipment
- Supports controlled speed and repeatable movement
- Complete MLFB retained for replacement identification
Technical Specifications
| Product Type | Industrial Synchronous Servo Motor |
| Series | 1FK7 |
| Complete Model | 1FK7022-5AK71-1LH5 |
| Motor Technology | Permanent Magnet Synchronous |
| Cooling Method | Confirm by nameplate and installed system |
| Encoder Type | Verify exact feedback option |
| Holding Brake | Confirm using the full model |
| Shaft Design | Verify before replacement |
| Connector Arrangement | Check against the original motor |
| Electrical Ratings | Refer to the original nameplate |
Compatible System and Applications
Typical applications include small positioning axes, labeling machines, electronic assembly equipment, packaging systems, pick-and-place units, laboratory automation and compact production machinery.
Maintenance and Replacement Notes
Verify the complete 1FK7022-5AK71-1LH5 model, nameplate ratings, encoder, holding brake, shaft, flange, connector direction, motor cables, cooling method and protection rating. Confirm drive compatibility and parameter settings before commissioning.
Related Models
Related compact 1FK7 motors include 1FK7032-5AK71-1LH3 and other 1FK7022 configurations. Differences in size and suffix code may affect performance and installation compatibility.
Inquiry and Supply Notes
For accurate sourcing, provide the complete model, nameplate photograph, required quantity, machine application and delivery destination. Product condition and exact technical configuration should be confirmed before ordering.
