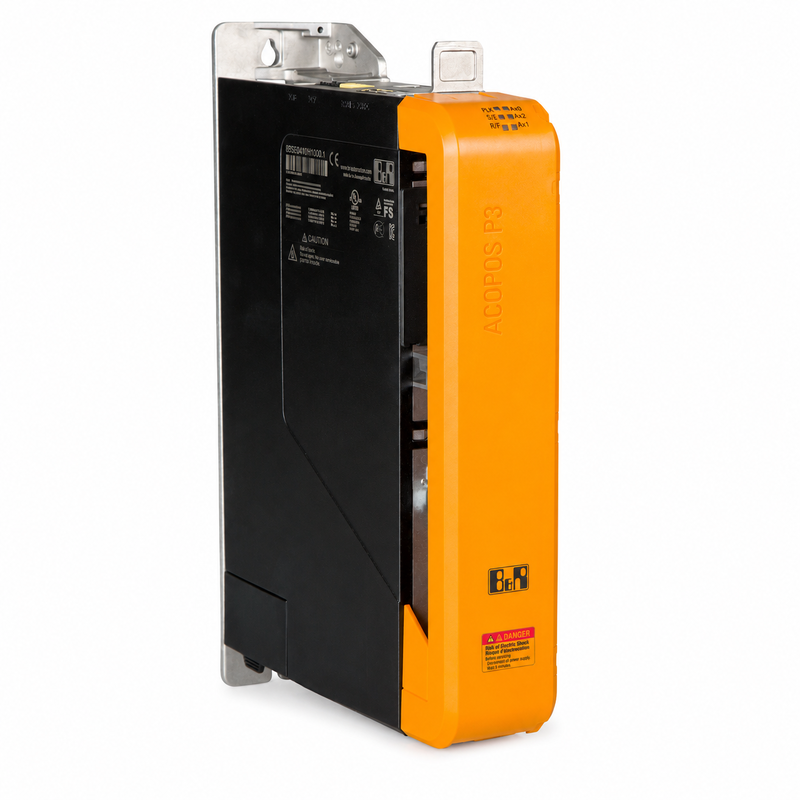

B&R 80PS080X3.10-01 ACOPOSmicro 1000W Power Supply Module
| Place of Origin | Germany |
| Brand Name | B&R |
| Model Number | 80PS080X3.10-01 |
Product Overview
The B&R 80PS080X3.10-01 is an ACOPOSmicro power supply module for compact industrial motion-control systems. It converts a three-phase 380 to 480 VAC mains supply into an adjustable 24 to 80 VDC power output for compatible ACOPOSmicro drive components.
The module delivers up to 16.6 A with a maximum output power of 1000 W. It also provides a separate 24 VDC, 2 A output, an X2X Link interface and an integrated brake chopper for connection to a suitable external braking resistor.
Main Features
- Three-phase wide-range 380 to 480 VAC input
- Adjustable 24 to 80 VDC power output
- Maximum output current of 16.6 A
- Maximum power output of 1000 W
- Separate 24 VDC, 2 A auxiliary output
- X2X Link interface for configuration and status information
- Integrated brake chopper
- Closed metal housing for wall mounting
- Designed for ACOPOSmicro motion-control systems
Technical Specifications
| Manufacturer | B&R Industrial Automation |
| Complete Model | 80PS080X3.10-01 |
| Product Family | ACOPOSmicro |
| Product Type | Power Supply Module |
| Input Voltage | 3-phase 380-480 VAC ±10% |
| Power Output | 24-80 VDC |
| Maximum Output Current | 16.6 A |
| Maximum Output Power | 1000 W |
| Auxiliary Output | 24 VDC, 2 A |
| Communication | X2X Link |
| Braking Function | Integrated brake chopper for external resistor |
| Mounting | Wall mounting |
| Protection Class | IP20 |
X2X Link and Braking Configuration
The output voltage can be configured through X2X Link, while operating and status information can be read by the connected control system. The integrated brake chopper permits connection of an external braking resistor when required by the machine duty cycle. The braking resistor must be selected according to the system design and regenerative energy requirements.
Typical Applications
- Compact ACOPOSmicro servo systems
- Packaging and labeling machinery
- Electronic assembly equipment
- Small handling and positioning systems
- Modular production machinery
- ACOPOSmicro cabinet maintenance
Maintenance and Replacement Notes
Confirm the complete model 80PS080X3.10-01, mains voltage, required DC output, connected X2X Link topology, total drive-system load and braking-resistor configuration before replacement.
Field terminal blocks are ordered separately and should not be assumed to be included with every unit. Existing terminal blocks, wiring assignments and external braking components must be inspected before installation.
Inquiry and Supply Notes
For quotation and compatibility checking, provide the power-supply nameplate, connected ACOPOSmicro module numbers, mains voltage, machine wiring diagram and photographs of the terminal arrangement. Confirm whether field terminal blocks and the braking resistor are required.
