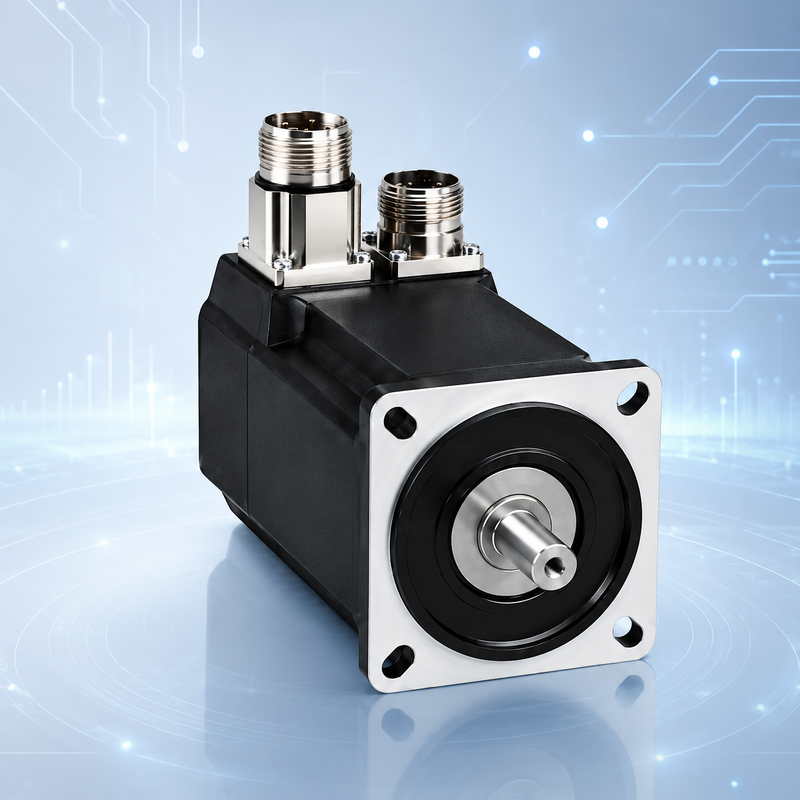

Schneider ELAU SH30703P01F2100 PacDrive SH070/60030 Servo Motor
| Place of Origin | Germany |
| Brand Name | Schneider Electric |
| Model Number | SH30703P01F2100 |
Product Overview
The Schneider ELAU SH30703P01F2100 is a 3-stack PacDrive SH070 servo motor corresponding to the legacy technical model SH070/60030/0/0/00/00/10/01/00. The associated ELAU article number is 65012302V012003.
This higher-output SH070 motor provides 1.45 kW rated power, 2.30 Nm rated torque, 3.10 Nm standstill torque and 11.30 Nm peak torque. It operates at a rated speed of 6000 RPM and supports a maximum speed of 8000 RPM.
The configuration includes a smooth steel shaft, SKS36 SinCos single-turn encoder, integrated holding brake and IP65 protection at both the shaft and housing.
Main Features
- Exact commercial reference: SH30703P01F2100
- Legacy model: SH070/60030/0/0/00/00/10/01/00
- ELAU article number: 65012302V012003
- PacDrive SH070 3-stack servo motor
- Rated power: 1.45 kW
- Rated speed: 6000 RPM
- Maximum speed: 8000 RPM
- Rated torque: 2.30 Nm
- Standstill torque: 3.10 Nm
- Peak torque: 11.30 Nm
- Smooth steel shaft
- SKS36 SinCos single-turn encoder
- Integrated holding brake
- Brake holding torque: 3.00 Nm
- IP65 shaft and housing protection
Technical Specifications
| Model | SH30703P01F2100 |
| Legacy Technical Model | SH070/60030/0/0/00/00/10/01/00 |
| ELAU Article Number | 65012302V012003 |
| Series | PacDrive SH070 / SH3 070 |
| Product Type | Servo Motor with Holding Brake |
| Motor Length | 3 Stacks |
| Rated Power | 1.45 kW |
| Rated Speed | 6000 RPM |
| Maximum Speed | 8000 RPM |
| Rated Torque | 2.30 Nm |
| Standstill Torque | 3.10 Nm |
| Peak Torque | 11.30 Nm |
| Rated Current | 3.00 A |
| Standstill Current | 4.10 A |
| Peak Current | 17.00 A |
| Shaft Configuration | Smooth steel shaft |
| Shaft Diameter | 14 mm |
| Encoder | SinCos SKS36 single-turn |
| Holding Brake | Yes |
| Brake Holding Torque | 3.00 Nm |
| Protection | IP65 shaft / IP65 housing |
| Connector | Standard rotatable angular connector |
| Motor Length AK | Approximately 256 mm |
| Approximate Weight | 3.92 kg |
| Lifecycle | Legacy product; verify availability |
Compatible System and Applications
The SH30703P01F2100 is intended for higher-load PacDrive machine axes requiring a holding brake and sealed shaft construction. Typical applications include vertical axes, packaging machinery, printing and converting equipment, rotary positioning mechanisms, material-handling equipment and automated production systems.
The motor must be matched to the installed servo drive according to rated current, peak current, torque requirement, load inertia and machine duty cycle.
Maintenance and Replacement Notes
Verify the complete SH30703P01F2100 commercial reference, article number and legacy model. Confirm the smooth shaft, SKS36 single-turn encoder, brake and IP65 protection.
The holding brake is intended for stationary holding and must not be used as the primary dynamic stopping mechanism. Confirm the brake control sequence, release timing and machine safety circuit.
Inspect the shaft seal, coupling, bearings, brake, motor connector and encoder connector. Verify the installed servo drive, controller project, motor parameters and complete cable set before operation.
Related Models
SH30703P01F2000 is the corresponding single-turn brake version without the IP65 shaft configuration. SH30703P02F2100 uses an SKM36 multi-turn encoder.
SH30703P11F2100 is a keyed-shaft single-turn brake version. SH30703P12F2100 combines a keyed shaft, multi-turn feedback, holding brake and IP65 protection.
Inquiry and Supply Notes
Please provide photographs of the complete nameplate, shaft, seal, brake and connectors. Also provide the installed servo-drive and cable references.
The brake condition, encoder, shaft configuration, protection level, product condition, testing status, availability and delivery time must be confirmed before quotation.
