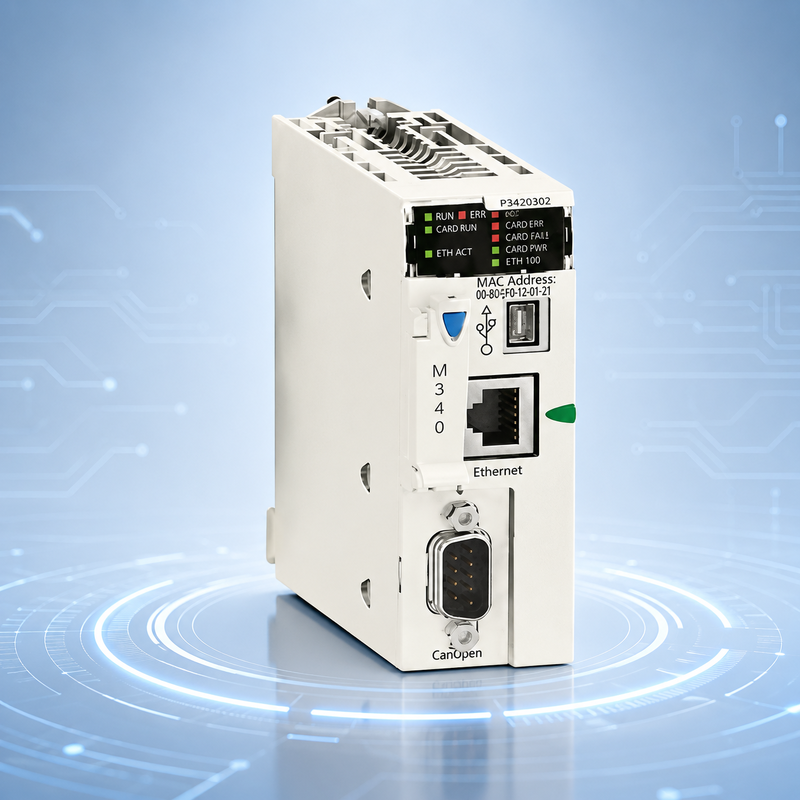

Schneider BMXP3420302 Modicon M340 Ethernet CANopen CPU Processor Module
| Place of Origin | Germany |
| Brand Name | Schneider Electric |
| Model Number | BMXP3420302 |
Product Overview
The Schneider BMXP3420302 is a high-performance Modicon M340 processor module designed for industrial automation systems requiring embedded Ethernet, CANopen master and Modbus serial communication.
This processor is used as the central CPU within a compatible Modicon M340 and X80 rack architecture. It executes the control application, manages local and distributed I/O, exchanges data with connected automation devices and coordinates supported communication networks.
The combined Ethernet and CANopen architecture makes the BMXP3420302 particularly relevant for machines and process systems using HMI panels, SCADA systems, variable speed drives, servo drives, remote I/O and other compatible CANopen or Ethernet devices.
Main Features
- Exact commercial reference: BMXP3420302
- Modicon M340 performance processor module
- Embedded industrial Ethernet positioning
- Embedded CANopen master positioning
- Embedded Modbus serial communication
- Compatible with the Modicon M340 and X80 rack architecture
- Designed for local and distributed automation systems
- Suitable for communication-intensive machine applications
- Engineering with EcoStruxure Control Expert
- Older installed systems may use Unity Pro project files
- Exact firmware and memory configuration must be verified
- Quotation-led supply recommended for exact-model replacement
Technical Specifications
| Model | BMXP3420302 |
| Series | Modicon M340 |
| Product Type | CPU Processor Module |
| Processor Positioning | Performance M340 processor |
| Platform | Modicon M340 / X80 |
| Embedded Ethernet | Yes |
| CANopen Interface | Embedded CANopen master positioning |
| Serial Communication | Embedded Modbus serial positioning |
| Engineering Software | EcoStruxure Control Expert |
| Legacy Engineering Software | Older projects may reference Unity Pro |
| Rack Installation | Compatible M340 / X80 rack installation; verify rack and power-supply configuration |
| Application Storage | Verify project memory and memory-card requirements from the installed system |
| Ethernet Services | Verify required services, addressing and firmware from the original project |
| CANopen Capacity | Verify node count, baud rate, device profiles and firmware limitations |
| Firmware | Confirm installed and replacement firmware compatibility |
| Supply Status | Current, legacy or region-dependent; confirm before quotation |
Compatible System and Applications
The BMXP3420302 is suitable for manufacturing lines, packaging machinery, material-handling equipment, water-treatment systems, process skids, conveyors and automation systems requiring both Ethernet and CANopen communication.
The Ethernet interface may connect compatible HMI, SCADA, engineering stations and industrial network devices. The CANopen master may coordinate compatible drives, remote I/O and other CANopen nodes.
The complete architecture must be reviewed before replacement, including the rack, power supply, I/O modules, communication modules, Ethernet addressing, CANopen node list and serial settings.
Maintenance and Replacement Notes
Verify the complete BMXP3420302 commercial reference. BMXP342020 provides embedded Ethernet but does not have the same CANopen positioning, while BMXP3420102 provides CANopen positioning without the same embedded Ethernet configuration.
Before removing the installed processor, back up the EcoStruxure Control Expert or Unity Pro project, CPU firmware, memory-card data, Ethernet configuration, CANopen topology, serial parameters and complete rack-module list.
A replacement CPU may require firmware alignment, project download, network reconfiguration and a controlled machine restart. Do not assume plug-and-run replacement without the original application backup.
Related Models
Related M340 processor references include BMXP342020 for embedded Ethernet applications, BMXP3420102 for CANopen applications, BMXP342000 as a performance base processor and BMXP341000 as an entry-level processor.
Inquiry and Supply Notes
Please provide the complete CPU nameplate, rack reference, power-supply model, full I/O list, Ethernet architecture, CANopen node list, serial parameters, firmware version and Control Expert or Unity Pro project status.
Memory-card inclusion, firmware compatibility, product condition, functional testing, regional availability and delivery time must be confirmed before quotation.
