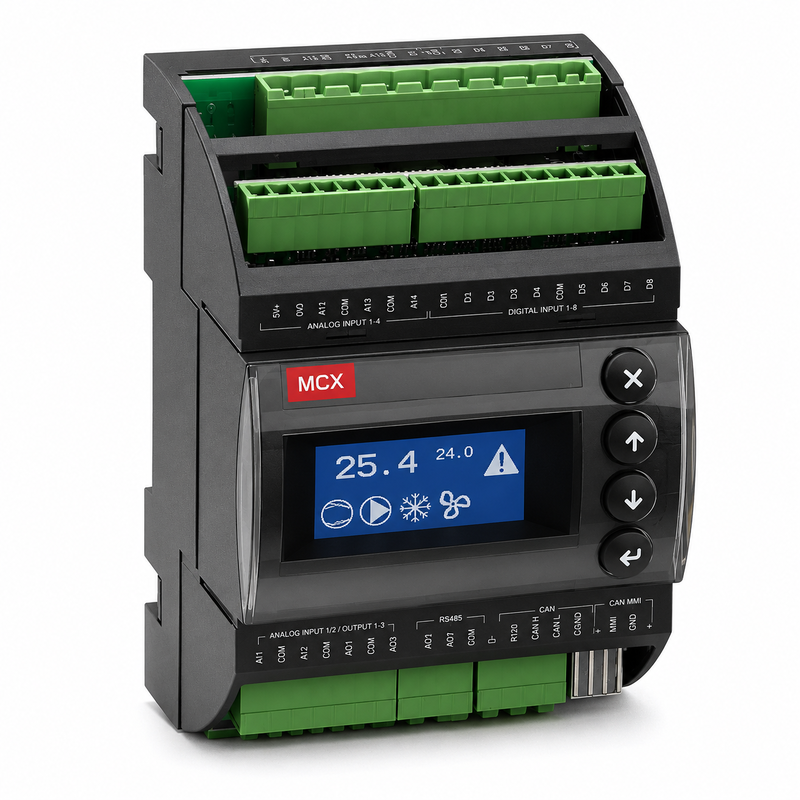

Danfoss 080G0285 MCX152V Programmable HVAC/R Controller

Product Overview

The Danfoss 080G0285 MCX152V is a high-capacity programmable HVAC/R controller supplied in the 110–230 VAC power version. It provides extensive configurable inputs and outputs, an integrated LCD, 15 relay or digital outputs and two embedded electronic expansion valve drivers.

This combination makes the controller suitable for complex chillers, heat pumps, refrigeration packs and multi-circuit systems where several compressors, fans, pumps, safety devices and electronic expansion valves must be controlled by one central platform.

Main Features

• Original Danfoss MCX152V programmable controller.
• Danfoss ordering number: 080G0285.
• 110–230 VAC power supply version.
• 14 analog inputs and up to 18 digital inputs.
• 6 analog outputs.
• 15 relay or digital outputs.
• Two integrated electronic expansion valve drivers.
• Integrated LCD and real-time clock.
• Ethernet, CANbus and RS485 Modbus connectivity.
• DIN-rail enclosure occupying 16 DIN modules.

Technical Specifications

Compatible System and Applications

The 080G0285 is intended for advanced HVAC/R equipment such as air-cooled and water-cooled chillers, heat pumps, compressor systems and refrigeration machines with two electronic expansion valves. The high number of inputs and outputs allows one controller to manage multiple refrigerant circuits and auxiliary components.

Ethernet, CANbus and Modbus connectivity support integration with compatible displays, supervisory devices and control networks. Available monitoring and control functions depend on the loaded application and communication configuration.

Maintenance and Replacement Notes

The 080G0285 is the high-voltage MCX152V version and should not be confused with the 24 VAC 080G0284. Confirm the electrical supply and wiring before installation. Use the complete ordering number for purchasing and replacement rather than relying only on the MCX152V family name.

The controller may require the correct Danfoss or OEM application program, BIOS version, parameter file and commissioning procedure. A new or replacement unit should not be assumed to operate the equipment immediately after wiring.

Related Models

• 080G0284 – MCX152V, 24 VAC version.
• 080G0330 – MCX20B2 with 20 relay/digital outputs.
• 080G0250 – MCX061V, 110–230 VAC with one EXV driver.

Inquiry and Supply Notes

For quotation and compatibility checking, please provide the full ordering number, controller nameplate, equipment model, power supply, electronic valve information and required application software. Confirm software status, connector scope, availability and delivery time before ordering.
