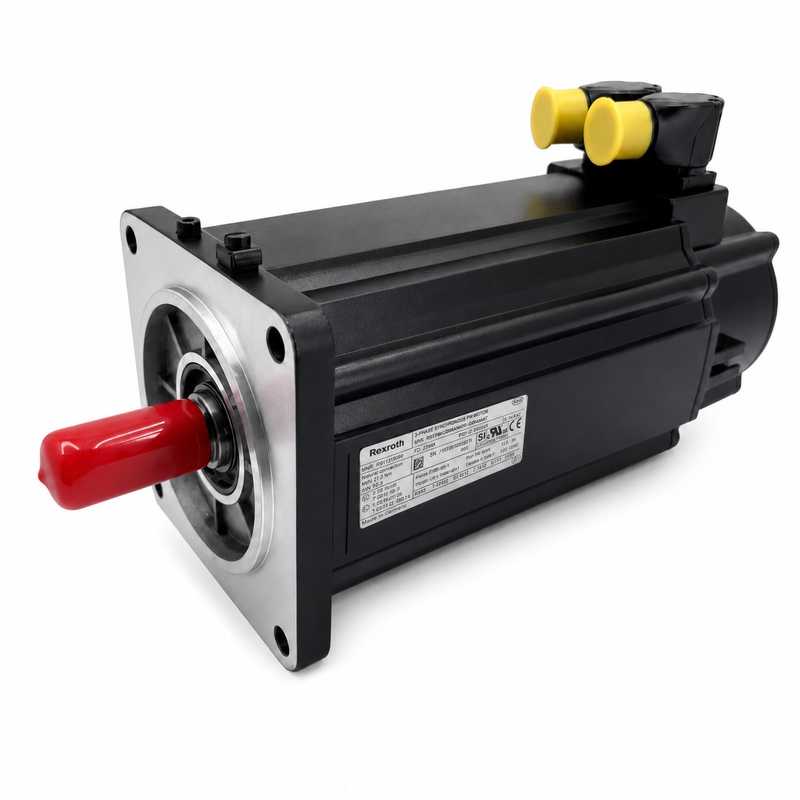

Rexroth R911315903 MSK101D-0200-NN-S2-BG0-RNNN Servo Motor
| Place of Origin | Germany |
| Brand Name | REXROTH |
| Model Number | MSK101D-0200-NN-S2-BG0-RNNN |
Product Overview
The Rexroth R911315903 MSK101D-0200-NN-S2-BG0-RNNN is a high-torque MSK101D synchronous servo motor equipped with an S2 single-turn EnDat 2.1 encoder and increased-concentricity construction. It is intended for precise machine axes requiring substantial torque and accurate single-revolution feedback.
Main Product Information
| Material Number | R911315903 |
| Complete Model | MSK101D-0200-NN-S2-BG0-RNNN |
| Base Motor | MSK101D-0200 |
| Cooling | Natural Convection |
| Encoder | S2 Single-Turn EnDat 2.1 |
| Connection | Fixed Connector on Side B |
| Shaft | Plain Shaft with Shaft Sealing Ring |
| Holding Brake | Without Holding Brake |
| Design | RNNN Increased Concentricity |
Reference Technical Data
| Maximum Speed | 3,400 rpm |
| Continuous Torque at Standstill | 50 Nm |
| Maximum Torque | 160 Nm |
| Continuous Current | 22.2 A |
| Maximum Current | 99.9 A |
| Rotor Moment of Inertia | 0.00932 kg·m² |
| Approximate Basic Weight | 40 kg |
Encoder and Mechanical Notes
The S2 encoder uses the EnDat 2.1 interface with 2,048 signal periods and provides absolute angular position within one shaft revolution. The drive and feedback cable must support S2 feedback.
The RNNN ending represents increased concentricity rather than ATEX construction. This design can be relevant for precision couplings, direct mechanical transmission, rollers and machine axes sensitive to shaft runout.
The motor uses a plain sealed shaft and does not include a holding brake. The machine coupling and any independent load-holding system must be selected accordingly.
Typical Applications
Applications may include machine tools, printing equipment, packaging machinery, heavy handling axes, converting machinery and high-accuracy automated production systems.
Replacement Verification
- Confirm material number R911315903.
- Verify S2 EnDat 2.1 compatibility.
- Confirm B-side connector routing.
- Check the plain-shaft coupling.
- Retain the RNNN accuracy configuration.
- Confirm that no holding brake is required.
Inquiry reference: R911315903 / MSK101D-0200-NN-S2-BG0-RNNN.
