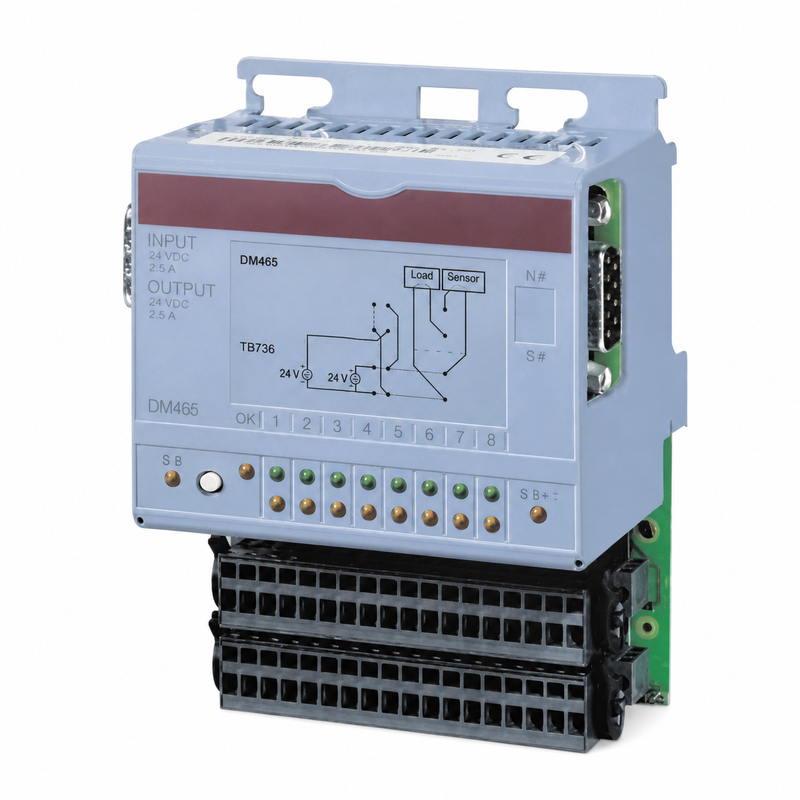

B&R 7CM211.7 System 2003 Combination I/O and Counter Module
| Place of Origin | Germany |
| Brand Name | B&R |
| Model Number | 7CM211.7 |
Product Overview
The B&R 7CM211.7 is a multifunction combination module for the System 2003 automation platform. It integrates digital inputs, transistor outputs, counter or encoder processing, analog inputs and analog outputs into one module.
Its combined architecture is suitable for machines that need several signal types in a compact controller configuration. Exact replacement requires verification of the digital wiring, counter operating mode, analog signal range and terminal assignment.
Main Features
- 8 digital inputs for 24 VDC sink signals
- 4 ms digital input response specification
- 8 short-circuit-protected transistor outputs
- 24 VDC outputs rated up to 0.5 A per channel
- Three single-channel or two dual-channel counter configurations
- Alternative support for two incremental encoders
- Counter or encoder frequency up to 20 kHz
- Two 12-bit analog inputs and two 12-bit analog outputs
Technical Specifications
| Parameter | Specification |
|---|---|
| Complete Model | 7CM211.7 |
| Series | System 2003 |
| Digital Inputs | 8 inputs, 24 VDC, 4 ms, sink |
| Digital Outputs | 8 transistor outputs, 24 VDC, 0.5 A |
| Counter Function | 3 single-channel or 2 dual-channel counters |
| Encoder Function | Up to 2 incremental encoders, 20 kHz |
| Analog Inputs | 2 channels, ±10 V or 0–20 mA, 12-bit |
| Analog Outputs | 2 channels, ±10 V, 12-bit |
| Terminal Blocks | Two TB718 terminal blocks ordered separately |
Compatible System and Applications
- System 2003 machine control installations
- Incremental encoder and counter applications
- Mixed digital and analog signal processing
- Packaging, printing and converting machinery
- Position detection and actuator control
Maintenance and Replacement Notes
Confirm whether the existing application uses counters or incremental encoders and verify the analog channels as voltage or current inputs. The output loads, analog ranges, program configuration and terminal wiring must match the original installation.
The TB718 terminal blocks are ordered separately. Check whether the existing terminal blocks can be retained and whether their wiring labels remain consistent with the PLC program.
Related Models
Other System 2003 components include the 7DM465.7 digital mixed module, 7CP474.60-1 CPU controller and 7AF101.7 adapter module.
Inquiry and Supply Notes
For product verification, provide the complete nameplate, terminal wiring, analog signal ranges, encoder or counter configuration and the model of the connected System 2003 CPU.
