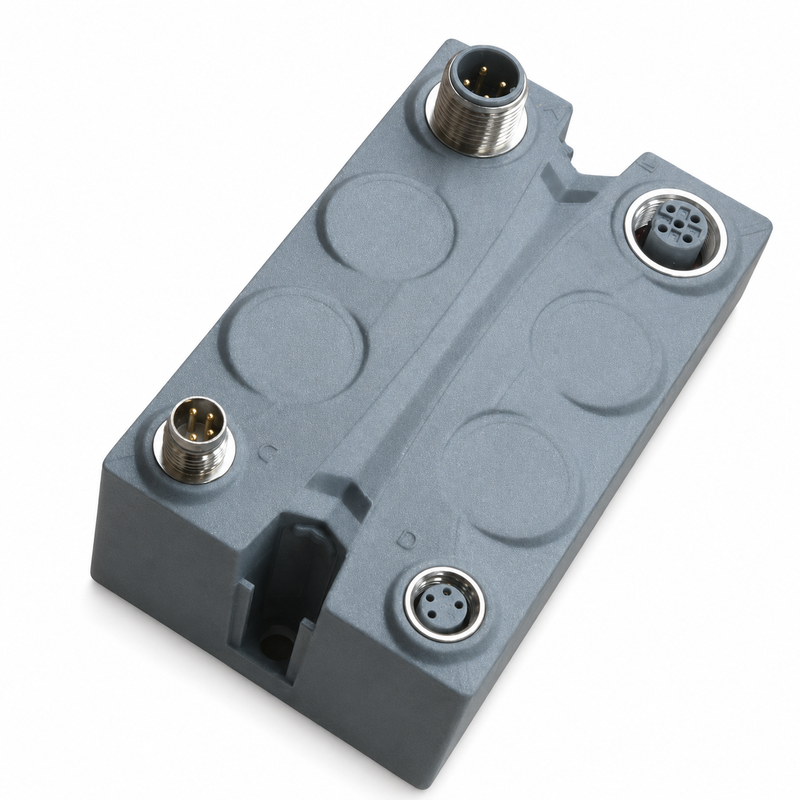

B&R X67DM1321.L12 X67 16-Channel Configurable Digital I/O Module
| Place of Origin | Germany |
| Brand Name | B&R |
| Model Number | X67DM1321.L12 |
Product Overview
The B&R X67DM1321.L12 is a high-density digital mixed I/O module for the IP67-rated B&R X67 distributed I/O system. It provides 16 digital channels that can be individually configured by software as inputs or outputs.
Eight A-coded M12 I/O connections accommodate the 16 channels, allowing the module to replace passive distribution arrangements while adding configurable I/O, diagnostics and counter functions. The inputs use sink circuitry and the outputs use source circuitry.
Main Features
- 16 software-configurable digital input or output channels
- High-density M12 field connection layout
- Suitable for replacing passive field distributors
- Two channels with 50 kHz event-counter functions
- Configurable input filtering
- 0.5 A nominal output current per channel
- 8 A total nominal output current under specified conditions
- Short-circuit and overcurrent protection
- Individual output-channel diagnostics
- Extensive status information for maintenance
- IP67 degree of protection
Technical Specifications
| Parameter | Specification |
| Complete Model | X67DM1321.L12 |
| Product Type | High-density digital mixed I/O module |
| Digital Channels | 16 configurable inputs or outputs |
| Nominal Voltage | 24 VDC |
| I/O Supply Range | 18 to 30 VDC |
| Input Circuit | Sink, EN 61131-2 Type 1 |
| Output Circuit | Source, current-sourcing FET |
| Nominal Output Current | 0.5 A per channel |
| Total Nominal Output Current | 8 A |
| Event Counters | 2 channels, maximum 50 kHz |
| X2X Link Connection | M12, B-coded |
| I/O Connections | 8 * M12, A-coded |
| Internal I/O Consumption | 3 W |
| X2X Link Consumption | 0.75 W |
| Protection Class | IP67 |
| Operating Temperature | -25 to 60°C |
| Dimensions | 53 * 155 * 42 mm |
| Approximate Weight | 320 g |
Compatible System and Applications
The X67DM1321.L12 is used in X2X Link distributed I/O stations for packaging machines, assembly equipment, conveyor systems, material handling and modular production machinery. Its M12 layout is suitable for concentrated groups of field sensors and actuators.
Maintenance and Replacement Notes
The suffix .L12 is part of the complete product model and must be retained. This version has 16 channels and M12 I/O connections; it is not physically identical to the standard eight-channel X67DM1321 with M8 connections.
Confirm the channel allocation, output loads, counter functions, M12 pin assignments, X2X Link topology and Automation Studio hardware configuration before replacement.
Related Models
Related products include X67DM1321, X67DM9321 and X67DM9321.L12. Compare the complete model, channel count, address functions, connector size and project configuration before selecting an alternative.
Inquiry and Supply Notes
For verification, provide the complete nameplate, I/O wiring diagram, M12 connector assignment, connected sensor and actuator list, X2X Link station layout and Automation Studio project information.
