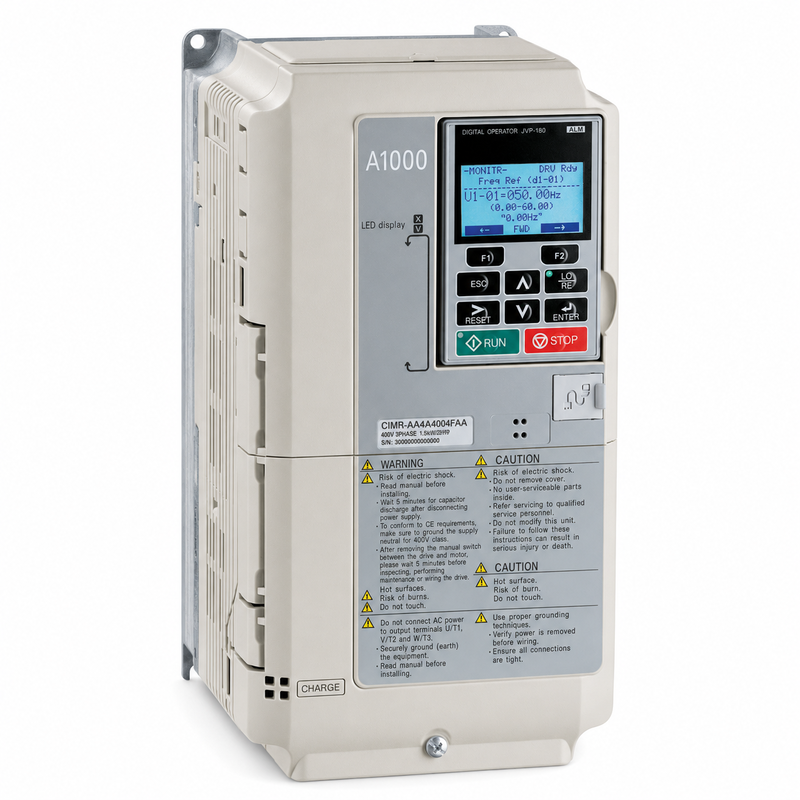

Yaskawa CIMR-AU4A0058FAA A1000 Vector VFD 480V 40HP 58A NEMA 1
| Place of Origin | USA |
| Brand Name | YASKAWA |
| Model Number | CIMR-AU4A0058FAA |
Product Overview
The Yaskawa CIMR-AU4A0058FAA is an A1000 series industrial vector drive designed for three-phase 380–480 VAC power systems. It provides a rated output of 58 A and 40 HP under normal-duty operation, or 45 A and 30 HP under heavy-duty operation. The dual-rating design allows the drive to be selected according to the actual overload, acceleration and torque requirements of the machine.
Main Features
- 40 HP and 58 A normal-duty rating for variable-torque and moderate-overload applications.
- 30 HP and 45 A heavy-duty rating for constant-torque machinery.
- Supports V/f control, open-loop current vector control and closed-loop vector control.
- Optional encoder feedback capability for applications requiring improved speed and torque regulation.
- Normal-duty overload capacity of 120% for 60 seconds.
- Heavy-duty overload capacity of 150% for 60 seconds.
- Built-in braking transistor for connection to a correctly selected braking resistor.
- Standard Modbus RTU communication with optional industrial network interfaces.
Technical Specifications
| Model | CIMR-AU4A0058FAA |
| Series | A1000 |
| Input Supply | Three-phase 380–480 VAC |
| Normal Duty Rating | 40 HP, 58 A |
| Heavy Duty Rating | 30 HP, 45 A |
| Output Frequency | Up to 400 Hz under standard configuration |
| Control Methods | V/f, open-loop vector and closed-loop vector |
| Standard Communication | Modbus RTU through RS-422/485 |
| Enclosure | NEMA 1 / IP20 |
Compatible System and Applications
The CIMR-AU4A0058FAA is suitable for conveyors, mixers, extruders, pumps, fans, machine tools, packaging equipment and material-handling systems. Heavy-duty selection is recommended for high starting torque, frequent acceleration or repeated load changes. Closed-loop vector operation requires a compatible feedback option and matching motor encoder.
Maintenance and Replacement Notes
Before replacement, verify the complete model number, input voltage, motor full-load current, duty mode, control wiring and installed option cards. Existing motor, I/O, communication and protection parameters should be recorded before removing the original drive. When replacing the A1000 with a newer GA800 drive, verify cabinet dimensions, terminal assignments, communication options, braking equipment and parameter conversion requirements.
Related Models
Related A1000 models include CIMR-AU4A0044FAA, CIMR-AU4A0072FAA and CIMR-AU4A0088FAA.
Inquiry and Supply Notes
Please provide the complete model number, required condition, quantity, motor rating, application type and destination when requesting a quotation. Availability, testing scope, keypad, option cards and braking accessories should be confirmed separately.
