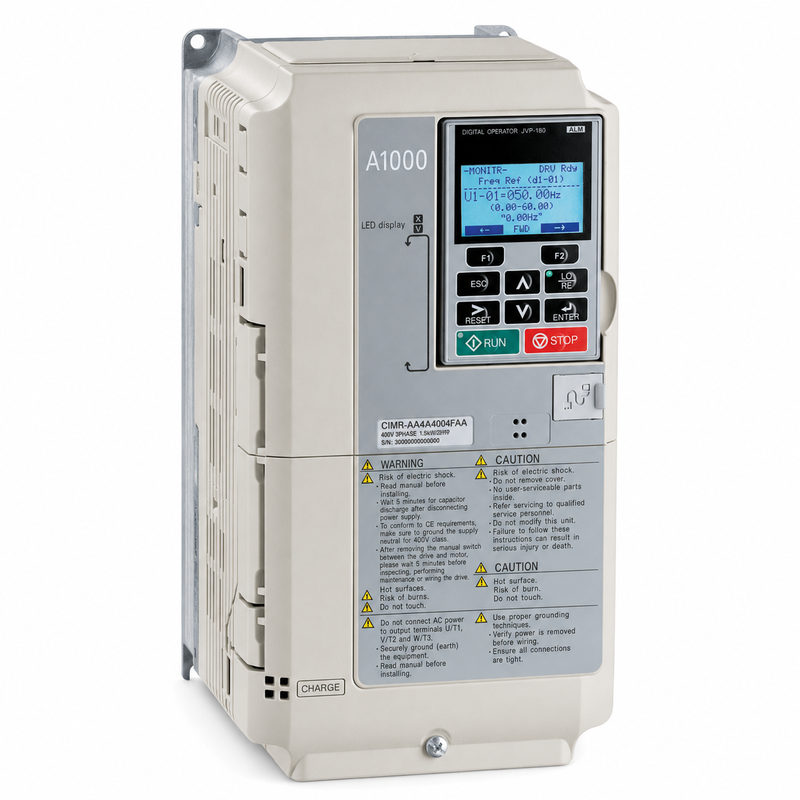

Yaskawa CIMR-AU4A0088FAA A1000 Vector VFD 480V 60HP 88A NEMA 1
| Place of Origin | USA |
| Brand Name | YASKAWA |
| Model Number | CIMR-AU4A0088FAA |
Product Overview
The Yaskawa CIMR-AU4A0088FAA is an A1000 vector drive designed for three-phase 380–480 VAC industrial power systems. It delivers 88 A with a nominal 60 HP normal-duty rating and 75 A under heavy-duty operation. The drive is intended for industrial applications requiring flexible motor-control methods, configurable I/O and reliable overload performance.
Main Features
- 88 A normal-duty output for moderate-overload and variable-torque equipment.
- 75 A heavy-duty rating for applications requiring increased starting and transient torque.
- Supports V/f, open-loop vector and closed-loop vector control.
- Optional feedback hardware for encoder-based speed and torque regulation.
- Programmable digital and analog I/O for machine-control integration.
- Standard serial communication with optional industrial network interfaces.
- External braking equipment can be selected for rapid deceleration or regenerative loads.
Technical Specifications
| Model | CIMR-AU4A0088FAA |
| Series | A1000 |
| Input Supply | Three-phase 380–480 VAC |
| Normal Duty Rating | 60 HP, 88 A |
| Heavy Duty Rating | 50/60 HP, 75 A |
| Output Frequency | Up to 400 Hz under standard configuration |
| Motor Control | V/f and current vector control |
| Feedback Capability | Optional encoder feedback |
| Enclosure | NEMA 1 / IP20 |
Compatible System and Applications
The CIMR-AU4A0088FAA is suitable for larger conveyors, extruders, mixers, process machines, high-inertia equipment and general production lines. Application selection should be based on motor full-load current and required overload capacity. Rapid stopping or overhauling loads normally require a correctly selected external braking unit and braking resistor.
Maintenance and Replacement Notes
Before installation, compare the original drive nameplate, motor current, control mode, carrier frequency, encoder option, communication card and terminal assignments. For used equipment, the cooling fans, DC bus, power terminals and stored fault history should be inspected. When migrating to GA800, verify the converted parameters through functional commissioning on the actual machine.
Related Models
Related A1000 ratings include CIMR-AU4A0072FAA, CIMR-AU4A0103FAA and CIMR-AU4A0139FAA.
Inquiry and Supply Notes
Please provide the full model suffix, required condition, quantity, application and motor data. External braking components, encoder cards and communication options are not assumed to be included unless specifically confirmed.
