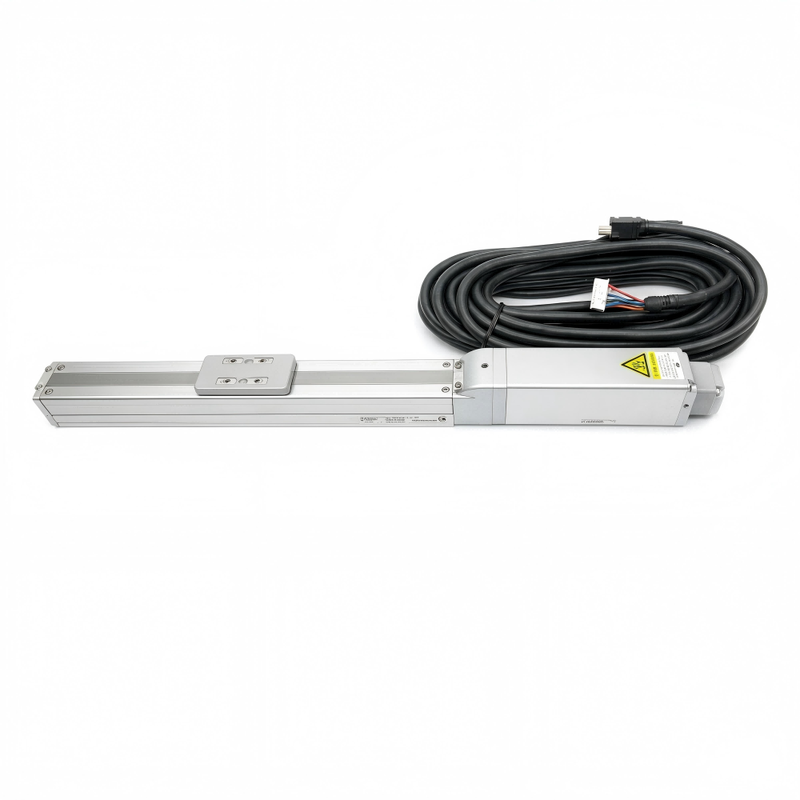

IAI RCP2-SA6R-I-42P-12-100-P1-S-MR Electric Actuator

Product Overview

IAI RCP2-SA6R-I-42P-12-100-P1-S-MR is a motor-reversed slider-type electric actuator from the RCP2 RoboCylinder series. It uses a 42P pulse motor, incremental encoder, 12 mm ball-screw lead and 100 mm stroke.

The motor-reversed structure reduces the actuator length compared with a conventional straight motor arrangement and can simplify installation in machines with limited longitudinal space. The exact P1-S-MR suffix must be retained when selecting a replacement.

Main Features

• SA6R motor-reversed slider configuration
• 42P pulse motor with incremental encoder feedback
• 12 mm ball-screw lead
• 100 mm working stroke
• Compact overall installation arrangement
• Suitable for controlled transfer and positioning operations
• Designed for use with a compatible IAI controller
• P1, S and MR option codes included in the complete model

Technical Specifications

Compatible Systems and Applications

This model is suitable for component-transfer stations, automated assembly equipment, packaging machines, inspection systems, loading mechanisms and production fixtures requiring compact linear motion.

The 12 mm lead provides a balance between travel speed and available thrust. Final performance depends on the controller settings, installation orientation, payload, acceleration and mechanical load applied to the slider.

Selection and Replacement Notes

SA6R identifies a motor-reversed slider arrangement and must not be confused with an RCP2 rod actuator. Confirm the exact actuator shape, motor position, mounting holes and overall dimensions before replacement.

The complete model includes the incremental encoder, 42P motor, 12 mm lead, 100 mm stroke and P1-S-MR suffix. RCP2-SA6C and RCP2-SA6R products may use related internal components but have different motor layouts and external dimensions.

Before removing the installed actuator, record its mounting orientation, controller parameters, home position, stroke limits and cable routing. Inspect the motor and encoder connectors and confirm that replacement cables are compatible with the existing controller.

Inquiry and Supply Notes

Please provide clear photographs of the complete actuator nameplate, motor orientation, controller label and connectors when requesting a quotation. Product condition, included cables, mounting accessories, warranty and delivery time should be confirmed before ordering.
