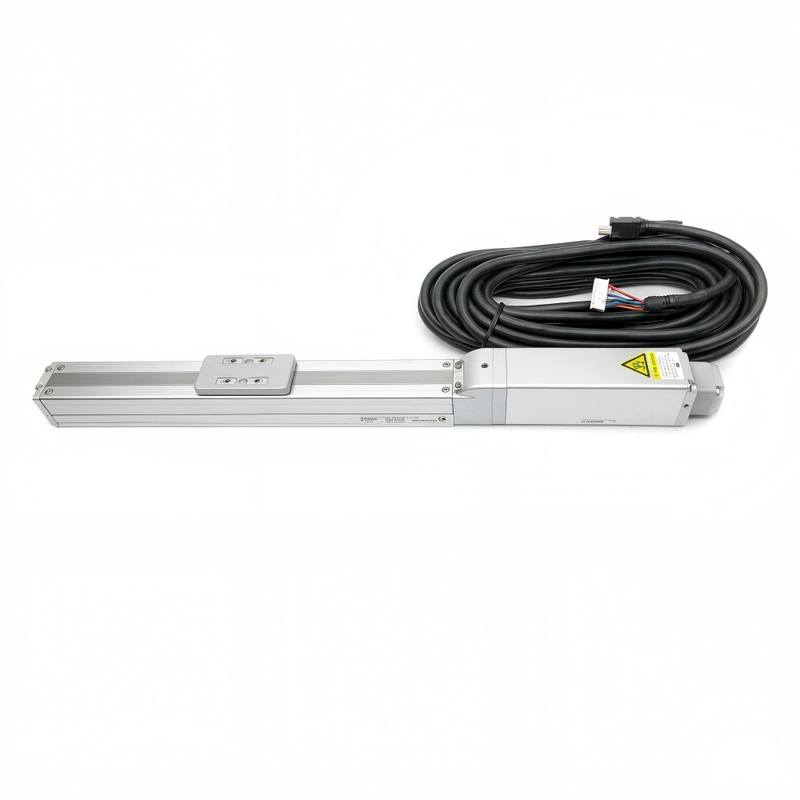

IAI RCP4-SA5R-I-42P-20-300-P3-R03-MR Electric Actuator

Product Overview

IAI RCP4-SA5R-I-42P-20-300-P3-R03-MR is a motor-reversed slider-type electric actuator from the RCP4 RoboCylinder series. It combines a 42P pulse motor, incremental encoder, 20 mm ball-screw lead and 300 mm working stroke.

The motor-reversed SA5R structure is intended for installations where reducing actuator length or relocating the motor beside the slider body improves machine layout. The complete P3-R03-MR suffix forms part of the product identity and must be checked during replacement.

Main Features

• SA5R motor-reversed slider configuration
• 42P pulse motor and incremental encoder
• 20 mm ball-screw lead and 300 mm stroke
• Maximum speed up to 1440 mm/s under applicable operating conditions
• Repeat positioning accuracy specified at approximately ±0.03 mm for lead 20
• Compact motor arrangement for restricted installation spaces
• Ball-screw drive with integrated linear guide
• P3, R03 and MR option codes retained in the exact model

Technical Specifications

Related Models

Related IAI family variant: RCP4-SA6R-I-42P-6-50-P3-R05-B-MR. This model belongs to the same RCP4 motor-reversed slider family and retains an MR option, but it uses a different body size, ball-screw lead, stroke, cable configuration and additional option codes.

RCP4-SA6R-I-42P-6-50-P3-R05-B-MR is included for related-model coverage only and is not automatically interchangeable with RCP4-SA5R-I-42P-20-300-P3-R03-MR.

Compatible Systems and Applications

This actuator is suitable for transfer stations, automated assembly equipment, packaging machinery, inspection systems, loading units and compact production cells requiring fast linear movement within a limited installation envelope.

The motor-reversed design can reduce interference with adjacent machine components, but sufficient space must still be provided for the motor, cable bend radius and maintenance access.

Selection and Replacement Notes

Confirm that the installed actuator is the SA5R motor-reversed version rather than the straight-motor SA5C version. Although the movement specifications may be related, the total dimensions, motor position and cable routing are different.

Verify the complete 20 mm lead, 300 mm stroke and P3-R03-MR suffix. Changing to a lead-6 or shorter-stroke model alters speed, thrust, mounting dimensions and controller parameters.

Before removing the original unit, record the mechanical datum, home position, controller model, parameter data, motor orientation and cable installation. Test the replacement axis at reduced speed before restoring full production operation.

Inquiry and Supply Notes

Please provide photographs of the complete actuator label, motor orientation, controller model, connectors and mounting arrangement when requesting a quotation. Product condition, included cables, mounting accessories, warranty and delivery time should be confirmed before ordering.
