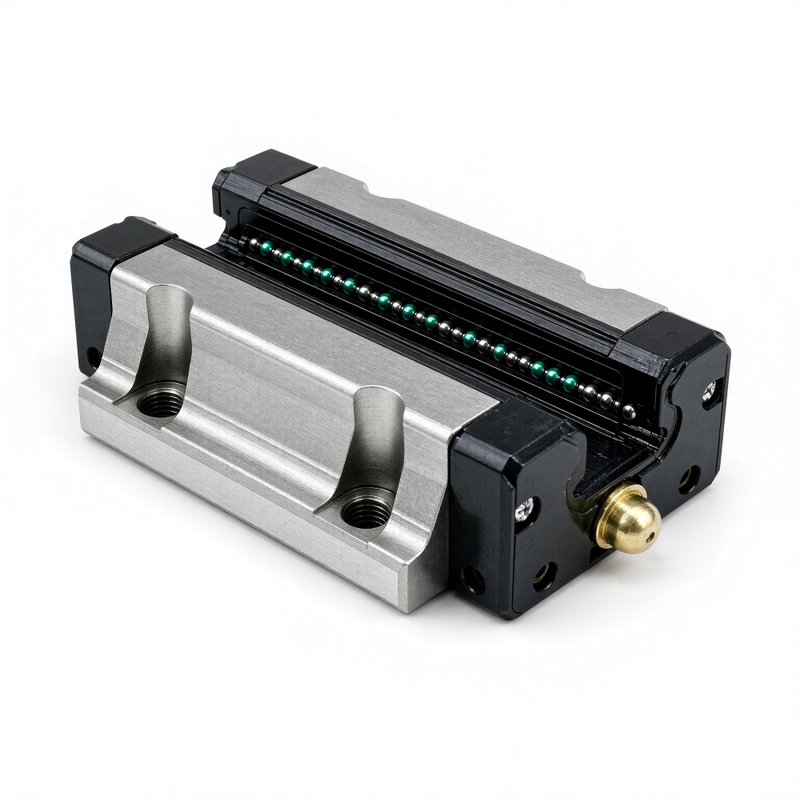

THK SHS25V1SS Sealed Narrow Caged Ball LM Guide for Automation
| Place of Origin | Japan |
| Brand Name | THK |
| Model Number | SHS25V1SS |
Product Overview
THK SHS25V1SS is a sealed narrow-block caged ball LM guide for industrial systems requiring compact installation, contamination protection and reliable linear movement. The complete SHS25V1SS designation identifies a more specific configuration than the general SHS25 series and is therefore suitable for a dedicated long-tail product page.
The V-type narrow block helps reduce the required mounting width, while the full-seal configuration supports applications where dust and process contamination must be controlled.
Main Features
- Complete long-tail model SHS25V1SS
- V-type narrow caged ball LM guide block
- Full-seal configuration
- Reference body width of 23 mm
- Basic dynamic load rating of 31.7 kN
- Custom rail lengths from 50 to 3000 mm
- Suitable for precision and contamination-controlled equipment
Technical Specifications
| Brand | THK |
| Model | SHS25V1SS |
| Series | SHS Caged Ball |
| Product Type | Sealed Caged Ball LM Guide |
| Block Configuration | V-Type Narrow Block with Full Seals |
| Reference Body Width | 23 mm |
| Rail Length | Custom 50–3000 mm Available |
| Basic Dynamic Load Rating | 31.7 kN |
Compatible Systems and Applications
THK SHS25V1SS can be used in semiconductor equipment, electronic production machinery, precision inspection systems, automated assembly lines, machine-tool auxiliary axes and industrial equipment operating in dusty or contamination-sensitive environments.
Search phrases naturally associated with this product include THK SHS25V1SS LM guide, SHS25V1SS sealed linear guide block, THK SHS25 narrow guide, sealed caged ball linear rail and SHS25V1SS replacement block.
Related THK SHS Models
Related models include SHS15C, SHS20C, SHS30V and SHS35C. Buyers comparing narrow-block configurations may consider SHS30V, while applications requiring a flanged mounting structure may use SHS20C or SHS35C depending on size and load requirements.
Maintenance and Replacement Notes
Confirm that the installed model is SHS25V1SS rather than a general SHS25 or another SHS25 block configuration. Check the seal arrangement, rail dimensions, mounting holes, preload, accuracy grade and required rail length before purchase.
Replacing the sealed configuration with an incompletely sealed block may reduce protection in contaminated operating environments.
Inquiry and Supply Notes
Please provide the complete nameplate marking, required rail length, number of blocks and operating environment for supply confirmation.
