THK SHS30V Narrow Caged Ball LM Guide for CNC Machines

Product Overview

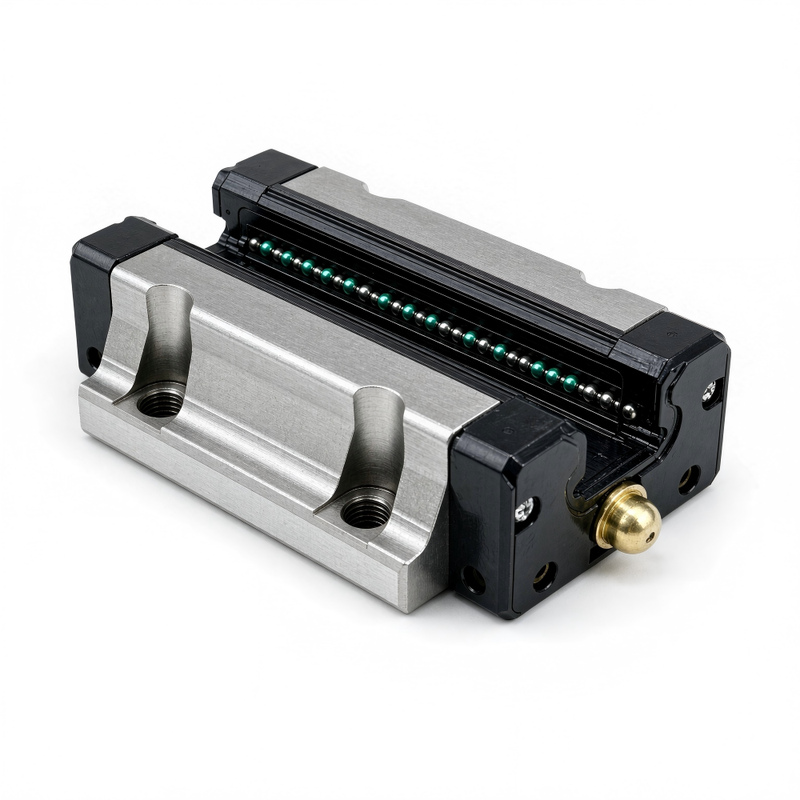

THK SHS30V is a narrow caged ball LM guide block for CNC machinery, industrial automation and precision linear motion equipment. Its narrow non-flanged block configuration is suitable for machine tables and mechanical structures where the available mounting width is limited.

The SHS30V model combines the SHS caged ball structure with a size-30 guide configuration and a basic dynamic load rating of 44.8 kN. It can be supplied with custom rail lengths according to the installed machine requirements.

Main Features

• THK SHS30 narrow caged ball LM guide
• Non-flanged block configuration
• Reference body width of 28 mm
• Basic dynamic load rating of 44.8 kN
• Custom rail lengths from 50 to 3000 mm
• Suitable for CNC machine and automation axes
• Stainless-steel configurations may be available

Technical Specifications

Compatible Systems and Applications

THK SHS30V is suitable for CNC machining equipment, automated production systems, robotic transfer axes, precision assembly machinery, inspection platforms and industrial positioning tables.

Relevant search expressions include THK SHS30V linear guide, SHS30V narrow LM guide block, THK SHS30 caged ball rail, CNC machine linear guide and SHS30V replacement block.

Related THK SHS Models

Related SHS models include SHS15C, SHS20C, SHS25V1SS and SHS35C. SHS25V1SS offers a smaller sealed narrow-block configuration, while SHS35C provides a larger flanged block for higher-load mounting structures.

Maintenance and Replacement Notes

Verify the narrow V-type block profile, rail dimensions, mounting pitch, number of blocks, preload and accuracy class. Do not substitute a flanged C-type block without checking all installation dimensions.

Inquiry and Supply Notes

Please provide the required rail length, mounting-hole spacing, block quantity and existing machine details before quotation.
