Rexroth MKD112A-024-GG0-BN MKD Synchronous Servo Motor Spare Part

Rexroth MKD112A-024-GG0-BN MKD Synchronous Servo Motor

The MKD112A-024-GG0-BN is an MKD permanent magnet synchronous servo motor configuration for the maintenance of installed industrial motion systems. This catalog page supports enquiries by the complete motor designation, helping buyers distinguish the required winding, feedback, shaft, brake and connection options before sourcing a spare. Supply is offered subject to identification of the actual available unit. Please provide a clear nameplate photograph with your enquiry so that the complete type code can be compared with the machine documentation.

Model Identification and Configuration

This designation uses motor size and length MKD112A, winding designation 024 and resolver feedback. The shaft specification is plain shaft with shaft sealing ring, and the brake field indicates without holding brake (code 0). The connection specification is Power connector toward B-side (B); standard design (N). These code descriptions are intended to help compare the requested configuration; the physical nameplate and applicable original motor documentation remain the basis for final identification.

The winding field is an electrical design code. It must not be read as a rated or maximum speed in rpm. Operating speed, voltage, current, torque, output power and thermal limits depend on the exact motor configuration and operating conditions. Those numerical ratings have not been assigned from a similar motor on this page. Please supply the original rating plate and application requirements if you need those figures checked for a replacement project.

Replacement Planning for Installed Machinery

MKD motors are used in servo-controlled machine axes. A maintenance enquiry may concern a machine tool, packaging line, handling mechanism, printing machine or another installed automation system. Suitability for a particular axis depends on the complete motor and drive combination, mechanical installation and machine settings. Listing an application here does not confirm that this motor can be connected to an unspecified drive or used as a direct replacement for a different designation.

Compare the drive model and firmware, feedback interface, motor parameters, cables and connector pin assignment with the installed system. Check the flange, centering diameter, shaft dimensions, key arrangement, coupling and available installation space. If the axis uses a holding brake, verify its original specification and control circuit. A brake-equipped configuration is not interchangeable with a motor without a brake solely because the frame and winding codes agree.

Information Required with Your Enquiry

Please send the full type MKD112A-024-GG0-BN, requested quantity, a readable motor nameplate photograph and any material number printed on the original unit. Photographs of the output shaft, mounting flange, connection box or plug connectors help identify mechanical and electrical details. Include the installed drive designation and describe whether the requirement concerns a failed motor, a maintenance spare or a planned replacement. These details reduce the risk of quoting a different suffix or incomplete assembly.

No independent R911 material-number match has been confirmed for this listing. Different catalog records or revisions may show different material references. We will compare any supplied reference against the actual unit before confirming a quotation. Cables, mating plugs, keys, couplings, gearboxes and other accessories are included only when specifically identified in the written offer. Condition, completeness and available inspection information are also agreed for the particular unit.

Related MKD Models: Configuration Comparison

The following models are listed for identification and quotation comparison. They are separate configurations, not approved substitutes. Match the complete designation, installed drive, feedback, shaft, brake and connection arrangement before ordering.

Different winding or feedback codes can change the electrical requirements and position measurement. Shaft, brake and special suffix differences must be checked individually. A matching frame size alone does not establish interchangeability.

Price, Availability and Delivery

The displayed USD 4680.00 per piece is an indicative estimate using the related MKD112A-024-GG1-AN configuration, calculated at 65% of an observed eBay asking price of USD 7200.00. The reference differs in feedback, shaft, brake, winding, connection direction and/or special suffix as indicated by its full code; no price equivalence or compatibility is established. It is not a confirmed quotation or evidence of stock. Final price depends on the exact available configuration, condition, completeness and sourcing terms; shipping, import charges and taxes are confirmed separately.

Minimum order quantity is one piece. The monthly supply target is 10 pieces, subject to actual availability rather than a reserved stock quantity. Once an in-stock unit is confirmed, dispatch is normally arranged within one week; sourcing lead time for non-stock items is agreed separately. Payment is by T/T, with final terms stated in the quotation. Protective export packaging is arranged for the unit and confirmed before dispatch.

For legacy maintenance requirements, request a genuine spare part with traceable identification and actual-unit photographs. This page does not establish manufacturer authorization, a fixed warranty, a tested condition or guaranteed compatibility. Any inspection, testing or commercial warranty terms must be stated in the individual written offer. Please review the confirmed full designation and photographs before accepting supply.

Series Illustration and Actual-Unit Confirmation

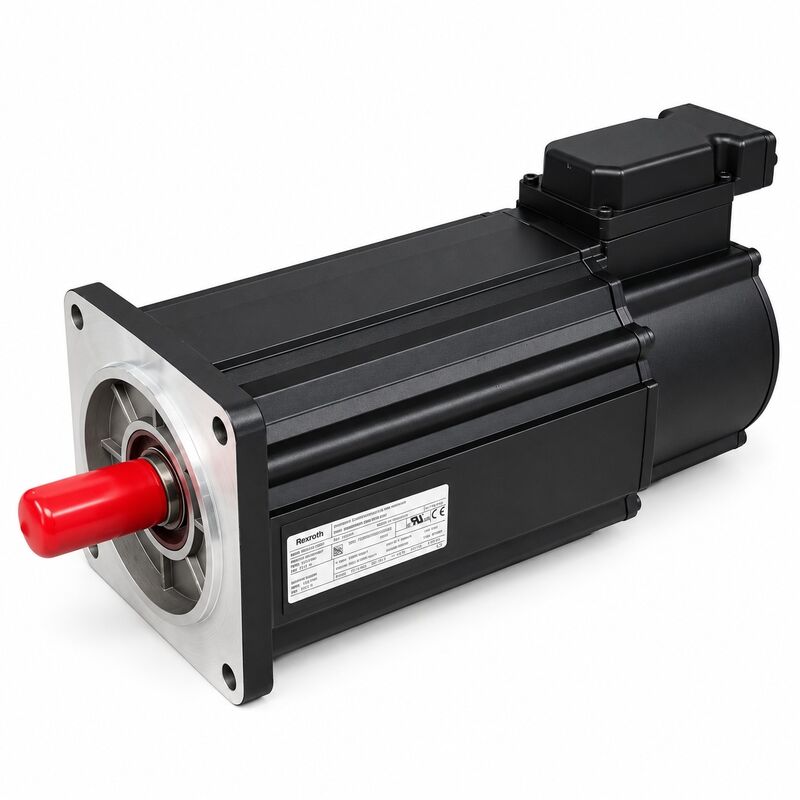

The two additional motor images are series illustrations supplied for this catalog. They do not identify the exact motor offered under this page. Any visible nameplate, material number, shaft, connector or brake arrangement in these images is not evidence of the listed model or configuration. Please request photographs of the actual available unit and its complete nameplate before approving a quotation.
