Rexroth MKE118B-024-PP1-KE4 MKE Servo Motor R911299388

Rexroth MKE118B-024-PP1-KE4 MKE Synchronous Servo Motor

The MKE118B-024-PP1-KE4 is an MKE permanent magnet synchronous servo motor configuration for maintenance of installed industrial motion systems. The requested material reference is R911299388. This catalog page identifies the complete motor designation so overseas buyers can request the appropriate legacy spare part. Supply depends on the actual unit available at quotation, including its condition, identification and completeness.

Model Identification and Configuration

The frame and length designation is MKE118B and the winding identifier is 024. This configuration specifies digital servo feedback with integrated multiturn absolute encoder, keyed shaft with shaft sealing ring and holding brake option 1; verify exact brake rating. Preserve the complete suffix KE4 when ordering. The winding identifier is not a rated speed in rpm. Numerical torque, current, voltage, speed and power ratings must be obtained from documentation for the exact winding and operating conditions; values from a similar frame are not transferred to this listing.

Feedback, Shaft and Brake Matching

The feedback option must match the installed drive interface, feedback cable and motor parameter set. Relative and absolute feedback configurations serve different position-detection requirements. Even when the mounting flange looks similar, a different encoder option can require a different electrical connection and commissioning procedure. Send the original drive type and readable motor nameplate when requesting a replacement assessment.

Compare the shaft diameter and length, keyway where applicable, sealing ring, flange dimensions and centering diameter with the original installation. Brake code 0 identifies a motor without a holding brake, while code 1 identifies a holding-brake option. Exact brake torque and electrical requirements depend on the motor configuration. Confirm the axis holding requirements and brake control arrangement before selecting a unit. A motor holding brake is not specified here as an operating service brake.

Connection, Housing and Application Identification

The connection arrangement for this designation is legacy connection-box version k; verify original drawing. Check cable entry, terminal arrangement, connector clearance and installation space using the original drawing. Housing and connection suffixes must be retained in full. BENN, BUNN and legacy KE4 versions must not be treated as equivalent based on appearance.

The MKE family includes motors designed for hazardous-area applications. Suitability of an actual replacement depends on its complete nameplate, approval markings, documentation and the intended installation. This listing does not certify an available unit for a particular zone, gas group, temperature class or jurisdiction. The person responsible for the machine and installation must verify the required approval and operating conditions. No certification certificate is included unless specifically identified in the written offer.

Legacy Spare-Part Enquiry

Please provide MKE118B-024-PP1-KE4, material reference R911299388, required quantity and photographs of the original nameplate, shaft and terminal or connector arrangement. Identify any cables, keys, mating plugs, couplings or other accessories required in the supply scope. A quotation should distinguish the motor itself from additional installation items. The condition, inspection information, genuine-part identification and any commercial warranty terms are established for the actual offered unit.

The model and R911 association has a matching public spare-parts catalog record. This is an identification reference, not manufacturer verification of the revision or identity of a particular motor. Check both codes against actual-unit photographs before approving an order. A matching base frame or similar appearance alone does not establish mechanical or electrical interchangeability.

Related MKE Models for Configuration Comparison

These are separate configurations provided for identification and enquiry comparison. They are not approved substitutes; compare all winding, feedback, shaft, brake, connection and housing options.

Indicative Price and Supply Terms

The displayed USD 3900.00 per piece is an indicative estimate based on a different configuration, calculated at 65% of an observed eBay asking price of USD 6000.00 for MKE098B-047-GP0-BUNN. This is a preliminary cross-frame estimate using an MKE098B reference; the frame, winding and options differ, and an exact MKE118B offer is required. The reference seller's condition, stock, testing and warranty claims do not apply to this listing. Final price, freight, taxes and import charges are confirmed separately for the actual offer.

Minimum order quantity is one piece. The monthly supply target is 10 pieces, subject to actual availability. Once an in-stock unit is confirmed, dispatch is normally within one week; non-stock sourcing lead time is agreed separately. Payment is by T/T with terms confirmed at quotation. Protective export packaging and delivery details are agreed for the specific unit. No fixed stock quantity, manufacturer authorization, guaranteed compatibility or fixed warranty is implied.

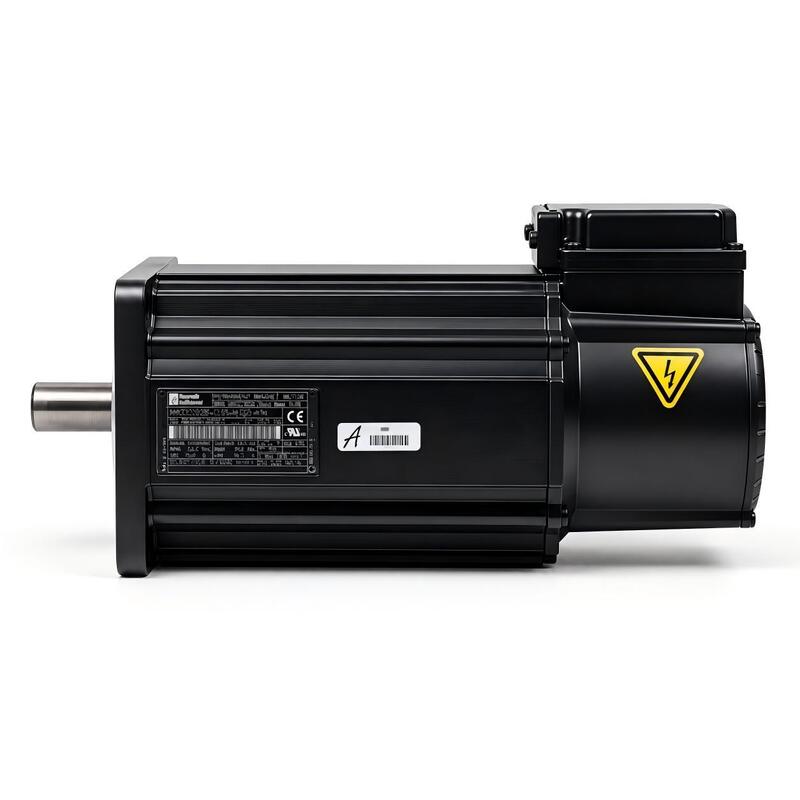

Series Illustration and Actual-Unit Confirmation

Catalog motor images are series illustrations. They do not verify the exact motor offered on this page. Visible nameplates, material numbers, shafts, connectors or brake arrangements in an illustration are not evidence of the listed configuration. Request photographs of the actual available motor and complete nameplate before approving a quotation.
