Rexroth MS2S03-B0BYN-IMHG1-NNDNN-NN MS2S Servo Motor R911403638

Rexroth MS2S03-B0BYN-IMHG1-NNDNN-NN MS2S Synchronous Servo Motor

The MS2S03-B0BYN-IMHG1-NNDNN-NN, material reference R911403638, is an MS2S motor ordering configuration for industrial motion-control enquiries. This listing helps maintenance and purchasing teams request a motor by its complete designation. Identity, condition, completeness and availability are checked for the actual unit before an offer is confirmed.

Model and Configuration

The design block B0BYN distinguishes this frame length and winding. The IMHG1 option includes a size 1 holding brake. Keep the entire NNDNN-NN suffix on purchase enquiries. A similar frame name or motor photograph does not establish an exact configuration match.

Feedback and Connection Matching

This configuration uses the IM feedback option and H electrical connection identified above. Confirm the installed drive interface, motor cable designation, connector keying and parameter requirements before selecting a replacement. A connector that fits mechanically does not prove electrical or feedback compatibility. Cables, mating plugs and adapters are supplied only when listed in the written quotation.

Mechanical and Brake Checks

Compare the flange, centering diameter, shaft diameter and length, coupling arrangement and installation clearance against the original motor drawing. Check the shaft seal and connector condition on the actual available unit. For this brake-equipped version, confirm brake supply, holding torque and release/control requirements from the exact motor documentation. A holding brake should not be treated as a service brake.

Confirm the operating duty and motor ratings for the complete ordering type. Current, torque, power and speed figures from another frame length or winding must not be copied to this motor. Cooling and installation conditions also affect the permissible duty. Integration and commissioning require the applicable motor and drive documentation.

Replacement Enquiry

Please send MS2S03-B0BYN-IMHG1-NNDNN-NN, requested material reference R911403638, quantity and a clear photograph of the original nameplate. Photographs of the shaft, flange and connectors, together with the installed drive model, help identify the requirement. The R911 reference must be checked alongside the complete type code on the offered unit. Inspection information, accessories and any warranty terms are agreed for the individual offer.

Related MS2S03 Ordering Types

The following models are separate ordering configurations for enquiry comparison. They are not approved substitutes. Compare frame length, winding, feedback, shaft, brake and the full remaining suffix before considering an alternative.

Indicative Price and Supply Terms

The displayed USD 487.50 per piece is an indicative estimate, calculated at 65% of an observed eBay asking price of USD 750.00 for MS2S03-B0BYN-IMHG0-NNDNN-NN. The reference is a different configuration; frame size, length, winding and brake options may differ. This estimate does not establish an exact-model market value. The reference seller's stock, condition, testing and warranty claims do not apply to this listing. Freight, taxes and import charges are confirmed separately.

Minimum order quantity: 1 piece. Monthly supply target: 10 pieces, subject to actual availability. Confirmed stock is normally dispatched within one week; non-stock sourcing lead time is agreed separately. Payment: T/T, with terms confirmed in the quotation. Protective export packaging and the included supply scope are confirmed for the actual motor. No fixed stock, official authorization, guaranteed compatibility or fixed warranty is implied.

Series Illustrations

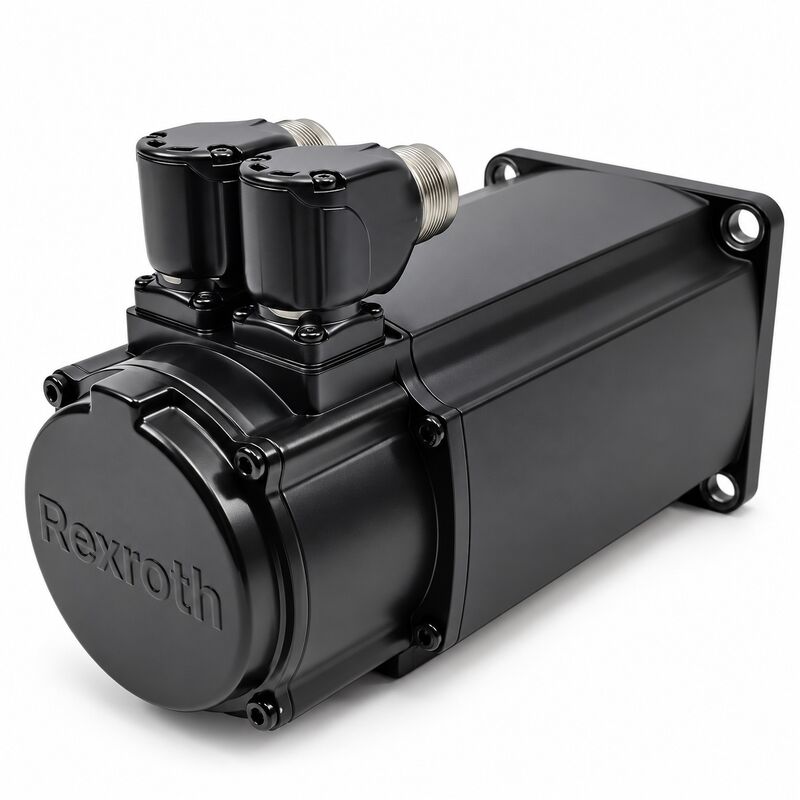

The supplied images are series illustrations for visual reference. They do not establish the exact model, dimensions, connector arrangement, brake option, nameplate or condition of a particular motor. Request actual-unit photographs and nameplate verification before approving the offer.
