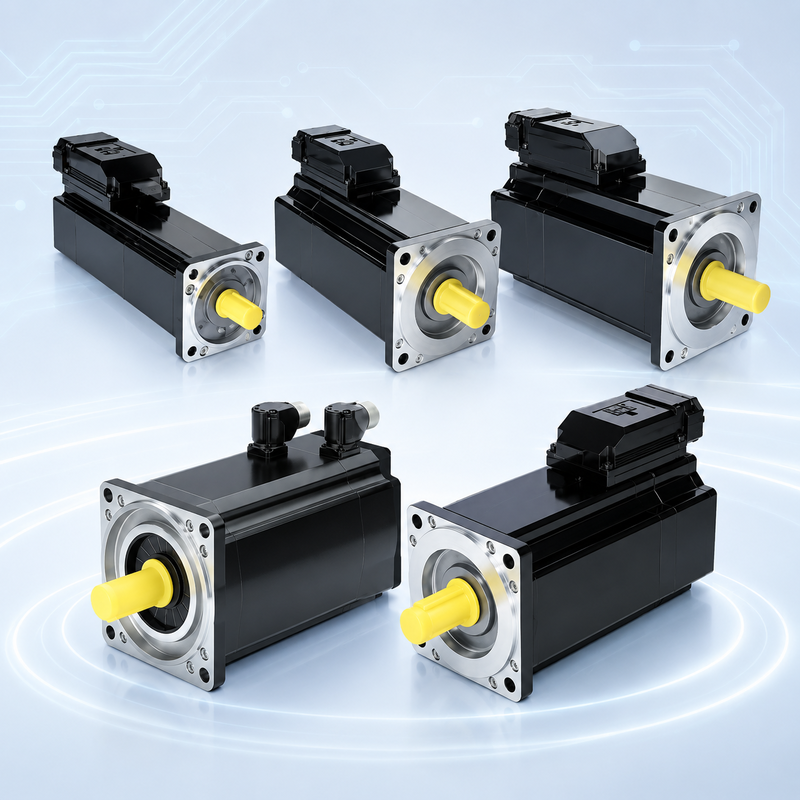

Schneider ELAU PacDrive SM-070/60/020 1.20kW Servo Motor
| Place of Origin | Germany |
| Brand Name | Schneider |
| Model Number | SM-070/60/020 |
Product Overview
Schneider ELAU PacDrive SM-070/60/020 is a standard SM-070 series servo motor used in packaging machines, synchronized motion systems, production equipment, and industrial automation maintenance. It is commonly associated with the 1.20kW class SM-070 motor family and is used in PacDrive servo systems where accurate positioning, stable speed control, and reliable axis performance are required.
This page is designed as the main reference page for the SM-070/60/020 motor family. Different commercial references may use the same core motor size but vary by shaft type, brake option, feedback configuration, protection rating, material design, and special machine configuration. For maintenance buyers, confirming the full installed motor code and commercial reference is important before replacement.
Main Features
- PacDrive SM-070 series standard servo motor
- SM-070/60/020 core motor configuration
- 1.20kW class servo motor family, subject to nameplate confirmation
- Suitable for packaging machines and synchronized servo motion systems
- Available in brake and non-brake variants
- Available with different shaft, feedback, and protection configurations
- High-value replacement motor family for legacy PacDrive systems
Technical Specifications
| Model | SM-070/60/020 |
| Brand | Schneider ELAU |
| Series | PacDrive SM-070 |
| Product Type | AC Servo Motor |
| Power Class | 1.20kW class, confirm by nameplate |
| Motor Family | SM-070/60/020 Standard Motor Family |
| Brake Option | Available with brake or without brake, depending on commercial reference |
| Feedback Option | M1, S1, R1 and other feedback configurations, subject to installed model |
| Application | Packaging Machine Axis, Servo Motion Control, Production Line Automation |
| Replacement Check | Confirm full technical type, commercial reference, shaft type, brake option, feedback type, connector, cable set, and servo drive compatibility |
Compatible System and Applications
SM-070/60/020 motors are used in Schneider ELAU PacDrive servo systems with compatible servo drives, C200 and C600 motion controllers, encoder cables, motor cables, brake cables, HMI panels, and industrial machine control systems. Typical applications include packaging machines, wrapping machines, cartoning machines, filling systems, labeling equipment, conveyors, indexing tables, feeder axes, and synchronized production machinery.
Maintenance and Replacement Notes
When replacing an SM-070/60/020 motor, do not select only by the core motor size. The complete installed technical type and commercial reference must be checked because similar SM-070 motors may differ by shaft design, brake configuration, feedback type, connector arrangement, protection class, and material option. A mismatch may cause mechanical installation problems, servo drive alarms, feedback errors, brake faults, or commissioning delay.
Available Variants and Related Commercial References
Common SM-070/60/020 related commercial references include 19202604V084001, 19202604V583001, 19202604V082001, 19202604V036001, 19202604V060001, 19202604V012001, 19202604V076001, 19202604V080001, and 19202604V621001.
Additional related variants may include 19202604V581001, 19202604V034001, 19202604V533001, 19202604V559001, 19202604V058001, 19202604V096001, 19202604V595001, and 19202604V094001. These variants may differ by brake option, feedback configuration, shaft design, stainless or standard material configuration, protection level, forced ventilation option, and installed machine requirement.
Inquiry and Supply Notes
DF Automatic supplies Schneider ELAU PacDrive SM-070 servo motors, PacDrive servo drives, C200 and C600 motion controllers, power supplies, encoder cables, motor cables, HMI panels, and industrial automation spare parts for packaging machine maintenance, servo axis replacement, production line repair, and legacy PacDrive system support.
