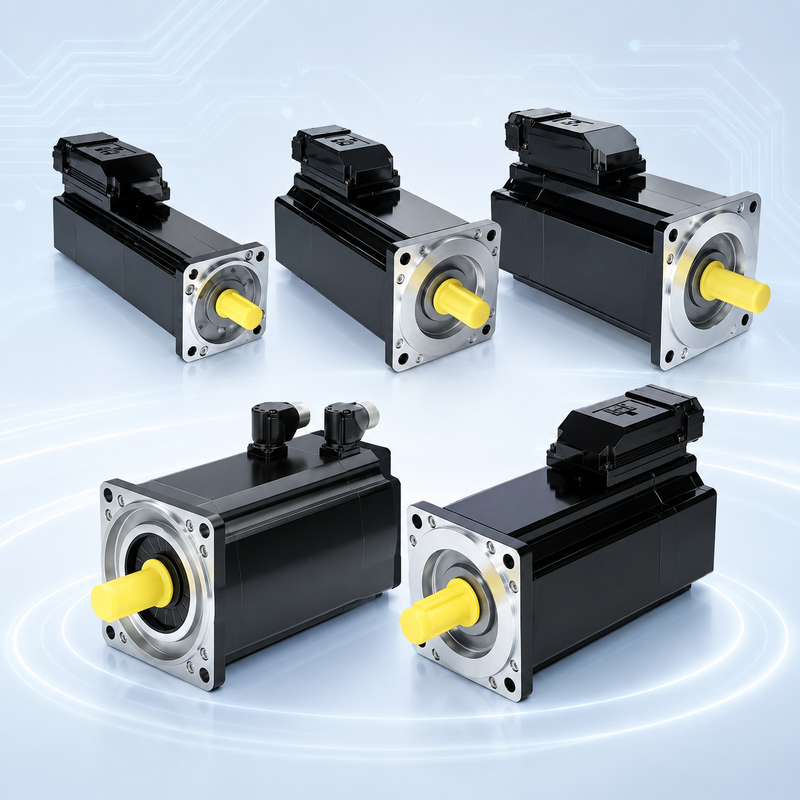

Schneider ELAU PacDrive SM-070/60/010 0.70kW Servo Motor
| Place of Origin | Germany |
| Brand Name | Schneider |
| Model Number | SM-070/60/010 |
Product Overview
Schneider ELAU PacDrive SM-070/60/010 is a standard SM-070 series servo motor used in compact packaging machines, small servo axes, production equipment, and industrial automation maintenance. It belongs to the lower-power SM-070 motor family and is commonly used where compact size, accurate positioning, and stable motion control are required.
This page is intended as the main reference page for the SM-070/60/010 motor family. Compared with the higher-power SM-070/60/020 version, SM-070/60/010 is more suitable for compact machine axes, lighter load applications, feeder mechanisms, labeling stations, small conveyors, and machine sections where a 0.70kW class servo motor is required.
Main Features
- PacDrive SM-070 standard servo motor family
- SM-070/60/010 core motor configuration
- 0.70kW class servo motor family, subject to nameplate confirmation
- Suitable for compact packaging machines and small servo axes
- Available with different brake, shaft, feedback, and protection options
- Useful replacement motor family for legacy ELAU PacDrive systems
Technical Specifications
| Model | SM-070/60/010 |
| Brand | Schneider ELAU |
| Series | PacDrive SM-070 |
| Product Type | AC Servo Motor |
| Power Class | 0.70kW class, confirm by nameplate |
| Motor Family | SM-070/60/010 Standard Motor Family |
| Brake Option | Available with brake or without brake, depending on commercial reference |
| Feedback Option | M1, S1, R1 and other feedback configurations, subject to installed model |
| Application | Compact Servo Axis, Packaging Machine Control, Light-Duty Motion Control |
| Replacement Check | Confirm complete technical type, commercial reference, shaft type, brake option, feedback type, connector, cable set, and servo drive compatibility |
Compatible System and Applications
SM-070/60/010 motors are used in Schneider ELAU PacDrive servo systems with compatible servo drives, C200 and C600 motion controllers, encoder cables, motor cables, brake cables, HMI panels, and machine automation systems. Typical applications include compact packaging machines, labeling systems, small feeder axes, conveyor sections, wrapping equipment, filling stations, indexing mechanisms, and light-duty synchronized servo systems.
Maintenance and Replacement Notes
Before replacing an SM-070/60/010 motor, confirm the complete installed motor nameplate and commercial reference. The same SM-070/60/010 core motor family may include different shaft, brake, feedback, material, connector, and protection configurations. Selecting only by the core model may lead to brake mismatch, feedback incompatibility, cable mismatch, mechanical coupling problems, or servo drive alarm after installation.
Available Variants and Related Commercial References
Common SM-070/60/010 related commercial references include selected 19202602 series SM-070 motors, such as 19202602V002001, 19202602V004001, 19202602V060001, 19202602V084001, and 19202602V621001.
Additional variants may exist with different shaft design, brake option, feedback configuration, IP protection class, material configuration, and application-specific suffix. For replacement, always compare the complete commercial reference and technical type with the installed motor label before ordering.
Inquiry and Supply Notes
DF Automatic supplies Schneider ELAU PacDrive SM-070 servo motors, SM series servo motors, PacDrive servo drives, C200 and C600 motion controllers, motor cables, encoder cables, power supplies, HMI panels, and industrial automation spare parts for compact packaging machine maintenance, servo motor replacement, and legacy PacDrive system repair.
