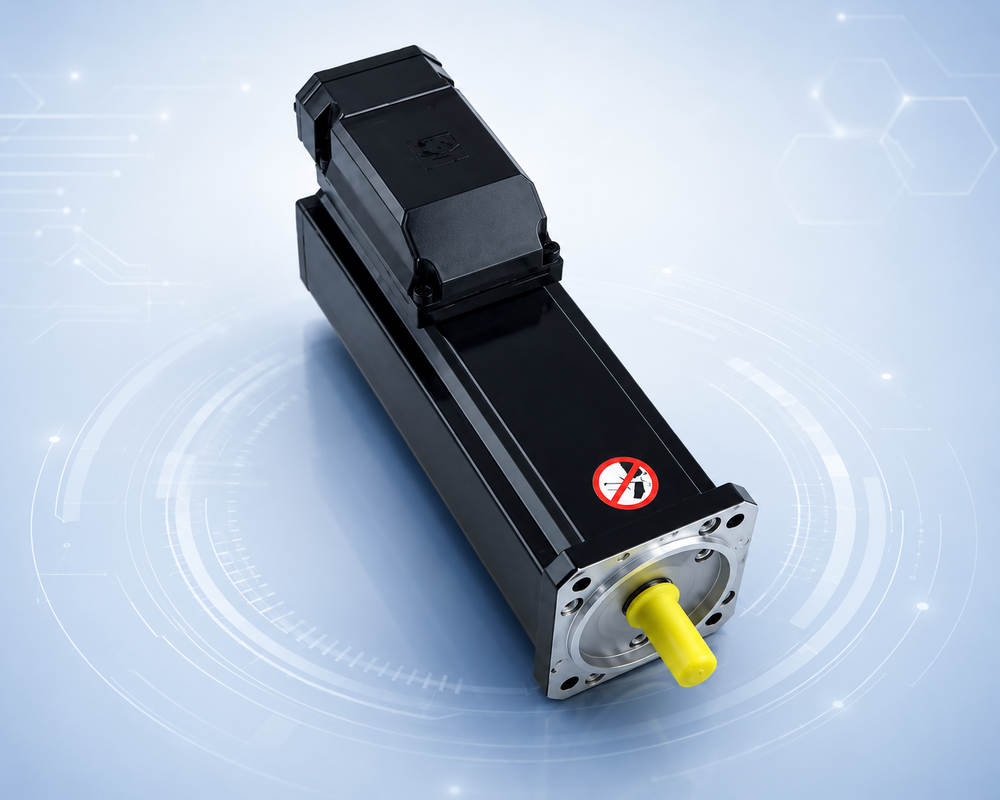

Schneider ELAU 19202604V501001 PacDrive SM-070/60/020 Servo Motor

Product Overview

The Schneider ELAU 19202604V501001 is a PacDrive SM-070/60/020 servo motor used in industrial motion control systems. It belongs to the ELAU PacDrive SM servo motor range and is designed for precise positioning, high-speed response and reliable machine operation in automated production equipment. This motor is commonly used in packaging machines, material handling systems, synchronized motion axes, printing machinery and other automation systems that require accurate servo control.

Main Features

• PacDrive SM series synchronous servo motor for industrial motion control
• Standard motor reference: SM-070/60/020
• Suitable for Schneider ELAU PacDrive automation systems
• Rated for 3 AC 400 V servo drive systems
• 6000 rpm rated speed for high-speed positioning applications
• 2.0 Nm standstill torque and 7.7 Nm peak torque
• Compact SM-070 frame size for machine axis replacement
• Used for factory maintenance, equipment repair and spare parts replacement

Technical Specifications

Compatible System and Applications

This servo motor is intended for Schneider ELAU PacDrive machine automation systems. It can be used in servo-controlled axes for packaging machinery, cartoning machines, filling machines, labeling systems, printing equipment, conveyor synchronization, material handling systems and other production machinery. The motor should be matched with the correct PacDrive servo drive, controller project, feedback configuration and cable set before replacement.

Maintenance and Replacement Notes

Before replacing a Schneider ELAU 19202604V501001 servo motor, users should verify the complete motor code, nameplate data, feedback type, brake option, connector style, cable set and mechanical mounting dimensions. The full installed model should be checked against the machine documentation and existing servo drive parameters. For older PacDrive systems, firmware compatibility, axis configuration and controller project settings should also be confirmed before installation.

Related Models

Related PacDrive SM servo motor models include SM-070/60/010, SM-070/60/020, SM-100/50/030, SM-100/40/050, SM-100/30/080 and other Schneider ELAU PacDrive servo motor variants. Matching servo drives, controller modules and motor cables should be confirmed according to the installed machine system.

Inquiry and Supply Notes

Please provide the complete model number, motor nameplate photo, required quantity and machine information before quotation. Used, refurbished or new surplus condition may be available depending on stock. This product is suitable for industrial automation spare parts supply, machine downtime recovery, servo axis repair and long-term maintenance of Schneider ELAU PacDrive systems.
