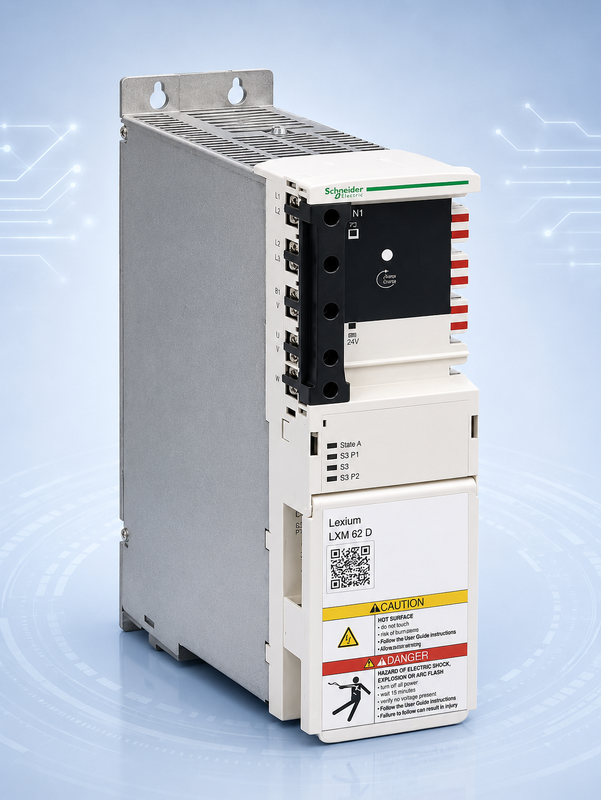

Schneider Electric LXM62DU60C21000 Lexium 62 0.95kW Single-Axis Servo Drive
| Place of Origin | Germany |
| Brand Name | Schneider Electric |
| Model Number | LXM62DU60C21000 |
Product Overview
The Schneider Electric LXM62DU60C21000 is a Lexium 62 single-axis servo drive module designed for cabinet-based multi-axis motion control systems. It provides a continuous current rating of 2 A, a peak current rating of 6 A and a continuous output capacity of approximately 0.95 kW per axis. This C-variant module is configured with standard hardware Safe Torque Off functionality and communicates through the Sercos III motion network.
Main Features
- Exact commercial reference: LXM62DU60C21000
- Single-axis servo drive configuration
- 2 A continuous current and 6 A peak current per axis
- Approximately 0.95 kW continuous output per axis
- Standard hardware STO safety feature
- 250–700 VDC common DC bus supply
- 24 VDC control voltage
- Sercos III real-time motion communication
- Hiperface and SinCos encoder compatibility
- IP20 cabinet-mounted construction
Technical Specifications
| Model | LXM62DU60C21000 |
| Series | Lexium 62 |
| Module Type | Single-Axis Servo Drive |
| Axes | 1 |
| Variant | C |
| Safety Feature | Standard HW STO |
| Continuous Current | 2 A per axis |
| Peak Current | 6 A per axis |
| Continuous Output | Approximately 0.95 kW per axis |
| DC Bus Voltage | 250–700 VDC |
| Control Voltage | 24 VDC |
| Motion Network | Sercos III |
| Encoder Interface | Hiperface / SinCos |
| Protection Rating | IP20 |
| Approximate Net Weight | 3 kg |
Compatible System and Applications
The LXM62DU60C21000 is intended for use as part of a Lexium 62 common-DC-bus servo system. Typical applications include packaging machines, material handling equipment, printing machinery, electronic assembly systems and synchronized production equipment requiring one controlled servo axis. Compatibility must be confirmed against the installed controller, Sercos III network, power supply module, servo motor and machine project.
Maintenance and Replacement Notes
Before replacing an existing module, verify the complete model, commercial reference, nameplate, hardware revision, firmware, controller project and communication network. Also confirm the cable set, motor matching, encoder type, motor brake option and shaft configuration. A module with the same current rating but a different C, D, E, F, G or H variant may have a different axis configuration or safety feature and should not be treated as an automatic replacement.
Related Models
LXM62DU60D21000, LXM62DU60E21000, LXM62DU60F21000, LXM62DU60G21000, LXM62DD15C21000 and other Lexium 62 servo drive modules.
Inquiry and Supply Notes
Please provide the complete commercial reference and clear nameplate photographs when requesting a quotation. Current availability, hardware revision and compatibility should be verified before quotation. Product condition, delivery time and shipping method are subject to the final supply confirmation.
