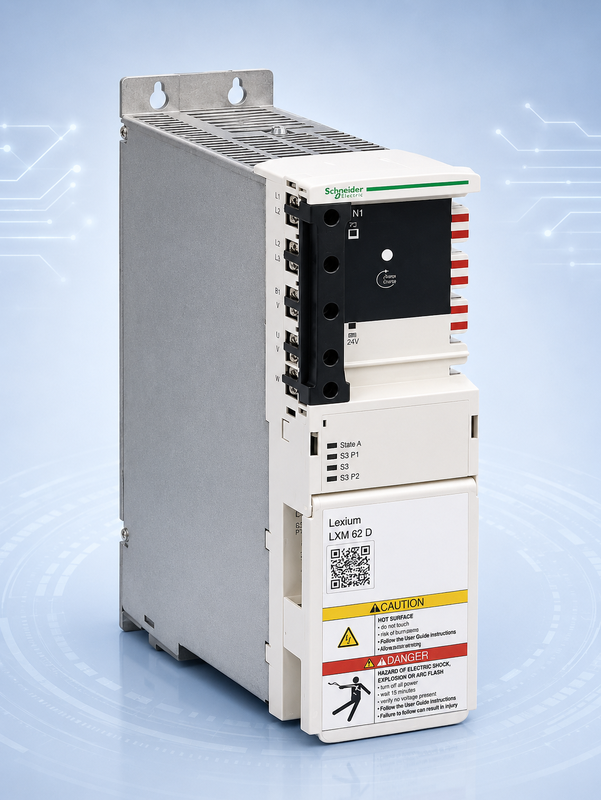

Schneider Electric LXM62DD27C21000 Lexium 62 Single-Axis Servo Drive
| Place of Origin | Germany |
| Brand Name | Schneider Electric |
| Model Number | LXM62DD27C21000 |
Product Overview
The Schneider Electric LXM62DD27C21000 is a Lexium 62 single-axis servo drive intended for medium-power motion control applications. It provides 9 A continuous current, 27 A peak current and approximately 4.3 kW continuous output. The C variant incorporates standard hardware Safe Torque Off and communicates with the motion controller through the Sercos III network.
Main Features
- Exact commercial reference: LXM62DD27C21000
- Medium-power single-axis servo drive
- 9 A continuous current
- 27 A peak current
- Approximately 4.3 kW continuous output
- Standard hardware STO safety configuration
- 250–700 VDC common DC-bus supply
- 24 VDC control power
- Sercos III real-time communication
- Hiperface and SinCos feedback compatibility
- IP20 cabinet installation
Technical Specifications
| Model | LXM62DD27C21000 |
| Series | Lexium 62 |
| Product Type | Single-Axis Servo Drive |
| Number of Axes | 1 |
| Variant | C |
| Safety Feature | Standard Hardware STO |
| Continuous Current | 9 A |
| Peak Current | 27 A |
| Continuous Output | Approximately 4.3 kW |
| DC Bus Voltage | 250–700 VDC |
| Control Voltage | 24 VDC |
| Motion Network | Sercos III |
| Encoder Interface | Hiperface / SinCos |
| Protection Rating | IP20 |
| Approximate Net Weight | 3 kg |
Compatible System and Applications
The LXM62DD27C21000 is suitable for medium-power servo axes in packaging machinery, robotic handling equipment, printing systems, cutting machines, assembly lines and synchronized production equipment. The power supply capacity, controller project, Sercos III cycle configuration, motor rating and encoder system must be confirmed by the installed system.
Maintenance and Replacement Notes
Other 27 A modules use different axis and safety configurations. LXM62DD27E21000 is the corresponding single-axis embedded-safety version and LXM62DD27G21000 is the single-axis advanced hardware STO version. LXM62DD27D21000, LXM62DD27F21000 and LXM62DD27H21000 are double-axis modules. Confirm the complete model, commercial reference, nameplate, hardware revision, firmware, controller project, cable set, communication network, motor matching, brake option, encoder type and shaft configuration before replacement.
Related Models
LXM62DD27D21000 double-axis standard STO, LXM62DD27E21000 single-axis embedded safety, LXM62DD27F21000 double-axis embedded safety, LXM62DD27G21000 single-axis advanced hardware STO and LXM62DD27H21000 double-axis advanced hardware STO.
Inquiry and Supply Notes
Please provide the full commercial reference, clear nameplate photographs and details of the connected motor and machine controller. Hardware revision, firmware, availability, product condition and delivery schedule must be confirmed before quotation.
