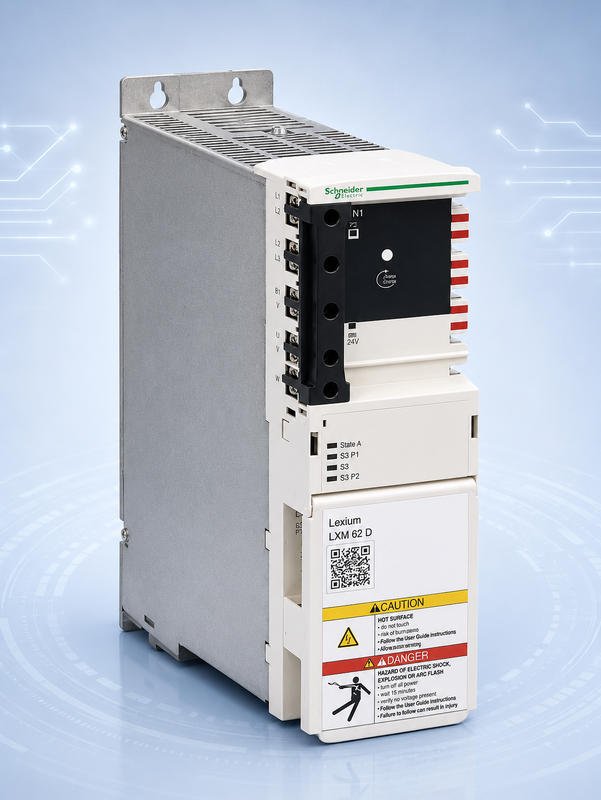

Schneider Electric LXM62DU60D21000 Lexium 62 0.95kW Double-Axis Servo Drive
| Place of Origin | Germany |
| Brand Name | Schneider Electric |
| Model Number | LXM62DU60D21000 |
Product Overview
The Schneider Electric LXM62DU60D21000 is a Lexium 62 double-axis servo drive module used in cabinet-based multi-axis motion control systems. It can control two servo axes from one drive module, with each axis rated at 2 A continuous current, 6 A peak current and approximately 0.95 kW continuous output. The D variant incorporates standard hardware Safe Torque Off functionality and connects to the motion controller through Sercos III.
Main Features
- Exact commercial reference: LXM62DU60D21000
- Two servo axes integrated into one module
- 2 A continuous current per axis
- 6 A peak current per axis
- Approximately 0.95 kW continuous output per axis
- Standard hardware STO safety feature
- 250–700 VDC common DC bus operation
- 24 VDC control supply
- Sercos III motion communication
- Hiperface and SinCos encoder interface support
- IP20 enclosure protection
Technical Specifications
| Model | LXM62DU60D21000 |
| Series | Lexium 62 |
| Module Type | Double-Axis Servo Drive |
| Axes | 2 |
| Variant | D |
| Safety Feature | Standard HW STO |
| Continuous Current | 2 A per axis |
| Peak Current | 6 A per axis |
| Continuous Output | Approximately 0.95 kW per axis |
| DC Bus Voltage | 250–700 VDC |
| Control Voltage | 24 VDC |
| Motion Network | Sercos III |
| Encoder Interface | Hiperface / SinCos |
| Protection Rating | IP20 |
| Approximate Net Weight | 3 kg |
Compatible System and Applications
The LXM62DU60D21000 is suitable for machinery requiring two coordinated low-power servo axes within a Lexium 62 common-DC-bus architecture. Typical uses include paired feeders, dual conveyor axes, synchronized handling stations, packaging mechanisms and assembly equipment. Confirm compatibility with the installed motion controller, power supply, Sercos III configuration, motor types and machine software project.
Maintenance and Replacement Notes
Replacement selection must be based on the complete model and commercial reference rather than only the LXM62DU60 current code. Verify the nameplate, axis count, firmware, hardware revision, controller project, communication network, cable set and motor matching. Motor-side information including brake option, encoder type and shaft configuration should also be checked. The D variant is a double-axis module and should not be replaced directly by a C, E or G single-axis version.
Related Models
LXM62DU60C21000, LXM62DU60E21000, LXM62DU60F21000, LXM62DU60G21000, LXM62DD15D21000 and other Lexium 62 double-axis servo drive modules.
Inquiry and Supply Notes
Send the full commercial reference and clear photographs of the original nameplate for quotation and replacement checking. Availability, firmware, hardware revision, product condition and delivery time must be confirmed for each inquiry.
