Schneider ELAU VDM01U30AA00 PacDrive MC-4 Single-Axis Servo Drive

Product Overview

Legacy spare-part inquiry: MC-4/11/03/400 | Reference 13130245 | Commercial identifier VDM01U30AA00. This product page supports genuine ELAU PacDrive M spare-part sourcing for installed machinery. Please match the full technical type, commercial identifier and HW/SW details to your original unit. Condition, completeness, availability and supply scope are confirmed for the actual unit offered.

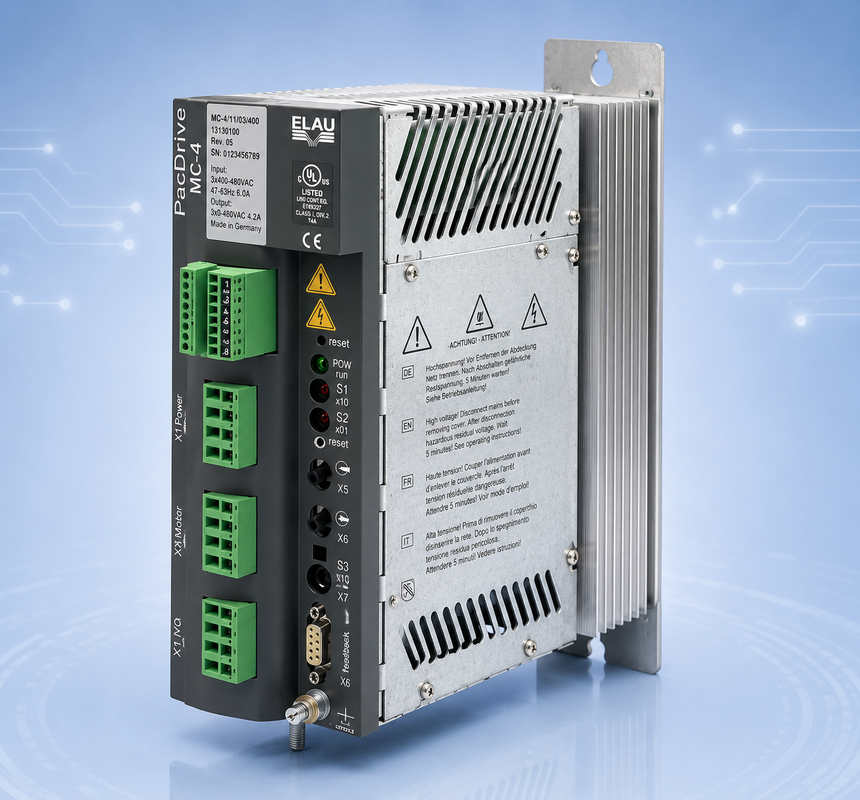

The ELAU VDM01U30AA00 is a PacDrive M MC-4 single-axis digital servo drive corresponding to the technical model MC-4/11/03/400. It is designed for a three-phase 380-480 VAC supply and provides a rated continuous motor current of 3 A with a one-second peak current of 7.5 A.

The MC-4 integrates the mains power supply, DC bus, power output stage and software servo regulator for one machine axis. Communication with the PacDrive controller is performed through the Sercos fiber-optic network. VDM01U30AA00 is the complete commercial reference and should be used as the primary identifier for quotation and replacement.

Main Features

• Exact commercial reference: VDM01U30AA00
• Technical model: MC-4/11/03/400
• ELAU order number: 13130245
• Single-axis PacDrive M servo drive
• Rated continuous current: 3 A
• Peak current for 1 second: 7.5 A
• Rated output power: 2.1 kVA
• Three-phase 380-480 VAC mains supply
• 24 VDC control power supply
• Integrated Sercos fiber-optic communication
• Integrated braking resistor
• Automatic compatible motor identification
• Single-turn and multi-turn encoder processing
• Inverter Enable safety input
• Natural-convection cooling

Technical Specifications

Compatible System and Applications

The VDM01U30AA00 is intended for PacDrive M machine-control systems using a PacDrive controller, Sercos fiber-optic network and compatible ELAU servo motor. Typical applications include packaging machinery, filling equipment, labeling machines, printing systems, material handling equipment, food-processing machinery and automated assembly systems.

Motor compatibility must be confirmed from the motor nameplate, electronic motor data, encoder type, rated current, brake configuration and machine project. A similar MC-4 current rating does not automatically guarantee compatibility with every installed motor.

Maintenance and Replacement Notes

Before replacement, verify the complete VDM reference, technical model, ELAU order number, firmware family, hardware revision and controller project. Record the Sercos address set by the front rotary switches and back up the machine program before disconnecting the original drive.

Confirm the mains voltage, 24 VDC control supply, Sercos fiber-optic cable direction, motor cable, encoder cable, braking requirements and Inverter Enable wiring. Also verify the motor model, brake option, encoder type, shaft configuration and mechanical installation.

The suffix following VDM01U30 identifies an important firmware or special configuration. VDM01U30AA00 should not automatically be replaced by an AB, AD, AF, AG, AH, AK, AL, AP or AQ version without checking the firmware compatibility list and machine software.

Related Models

Confirmed related 3 A references include VDM01U30AB00, VDM01U30AD00, VDM01U30AF00, VDM01U30AG00, VDM01U30AH00, VDM01U30AK00, VDM01U30AL00, VDM01U30AP00 and VDM01U30AQ00.

Special legacy references VDM01U30AA09 and VDM01U30AJ22 require additional verification. They should not be treated as standard interchangeable versions without a clear nameplate, firmware record and installed-machine information.

Inquiry and Supply Notes

Please provide clear photographs of the complete nameplate, front panel and connectors when requesting a quotation. The commercial reference, technical model, firmware, hardware revision, Sercos address, motor model, product condition, testing status, availability and delivery time must be confirmed before quotation.

Ordering and Delivery

• Minimum order: 1 piece.
• Supply planning: 10 pieces per month, subject to actual availability.
• When an in-stock unit is confirmed, dispatch is normally within one week.
• Non-stock sourcing and delivery are agreed separately.
• Payment: T/T; other terms subject to quotation.
• Protective export packaging; packing details confirmed per unit.

The displayed price is an indicative inquiry price. Please request a quotation specifying MC-4/11/03/400, reference 13130245, required quantity, destination and delivery date. Include readable nameplate photographs and the required hardware, firmware, motor and machine-project details. Any required inspection or test evidence and the included connectors or accessories should be agreed before ordering.

Frequently Asked Questions

Can I order by the current rating alone?
Please provide the complete type code and commercial identifier. Supply class, hardware revision, firmware and machine requirements must also be checked.

Does a supplied drive include my machine settings?
Confirm the software and configuration included in the offer. Arrange your machine-project backup and commissioning resources before replacement.

Which condition and version can be supplied?
State your requirements in the inquiry. Availability, condition, completeness, price and lead time are confirmed case by case for the offered unit.
