Schneider ATV340U40N4E Altivar Machine ATV340 4kW 380–480VAC Embedded Ethernet Variable Speed Drive
| Place of Origin | Germany |
| Brand Name | Schneider Electric |
| Model Number | ATV340U40N4E |
Product Overview

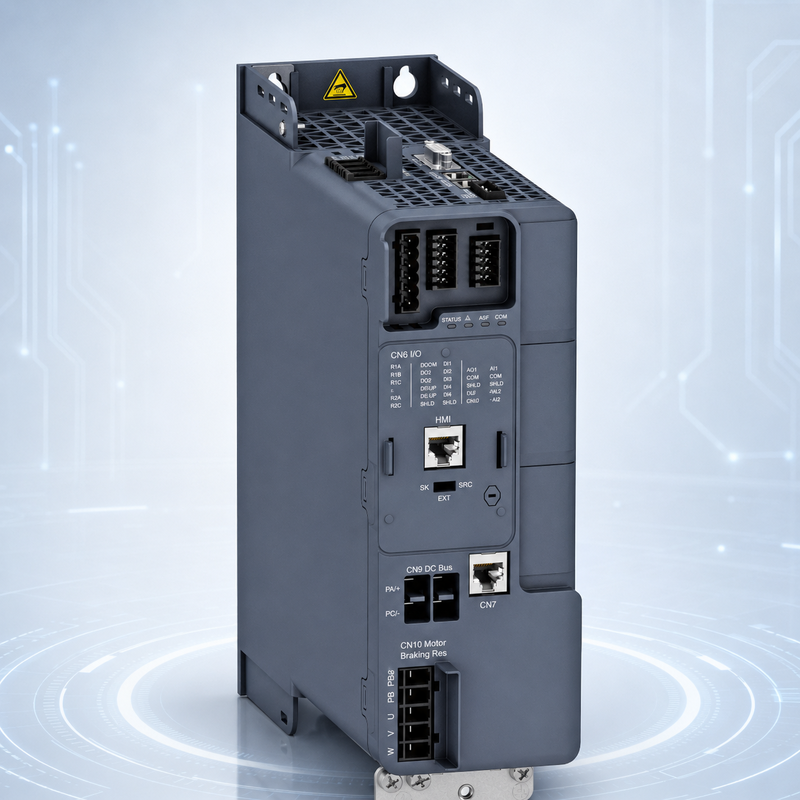

The Schneider ATV340U40N4E is a 4 kW, 5 HP high-performance variable speed drive from the Altivar Machine ATV340 range. It is designed for complex industrial machinery using a three-phase 380–480 VAC electrical supply.
The N4E suffix identifies the embedded-Ethernet version, providing Modbus TCP, EtherNet/IP and Modbus serial connectivity. This communication arrangement supports integration with industrial PLCs, machine controllers and Ethernet-based automation networks.
The drive is designed for dynamic machine applications requiring accurate motor control, high overload performance, rapid acceleration and controlled deceleration.
Main Features
- Exact commercial reference: ATV340U40N4E
- Rated motor power: 4 kW
- Rated motor power: 5 HP
- Three-phase 380–480 VAC power supply
- Embedded Ethernet version
- Modbus TCP communication
- EtherNet/IP communication
- Modbus serial communication
- Integrated Safe Torque Off function
- Designed for demanding machine duty
- Compatible with asynchronous, synchronous and permanent-magnet motors
- High-speed motor capability up to approximately 599 Hz
Technical Specifications
| Model | ATV340U40N4E |
| Series | Altivar Machine ATV340 |
| Product Type | High-Performance Variable Speed Drive |
| Power Code | U40 |
| Rated Motor Power | 4 kW |
| Rated Motor Power | 5 HP |
| Voltage Code | N4E |
| Rated Supply | Three-phase 380–480 VAC |
| Communication Variant | Embedded Ethernet Version |
| Embedded Communication | Modbus TCP, EtherNet/IP and Modbus serial |
| Product Group | Low-Power Machine Drive |
| Duty Positioning | High-performance machine variable speed drive |
| Compatible Motor Types | Asynchronous, synchronous and permanent-magnet motors |
| Motor Feedback | Confirm encoder compatibility and required option modules |
| Integrated Safety | Safe Torque Off; verify the exact safety configuration |
| Extended Safety | Configuration- and firmware-dependent |
| Maximum Output Frequency | Up to approximately 599 Hz; verify application limits |
| EMC Configuration | Integrated or reference-dependent; confirm category |
| Braking Configuration | Reference- and application-dependent |
| Typical Applications | Packaging, conveyors, mixers, textile machines, hoisting and material handling |
| Regional Availability | Confirm before quotation |
Compatible System and Applications
The ATV340U40N4E is suitable for packaging machinery, conveyors, mixers, textile machines, hoisting equipment, material-handling systems, woodworking machinery and other high-performance production equipment.
It is particularly appropriate for Ethernet-connected machines requiring EtherNet/IP or Modbus TCP communication. Network compatibility must be reviewed against the installed PLC, switch topology and controller program.
Final sizing must consider motor current, motor technology, encoder type, overload torque, acceleration time, braking duty, switching frequency and ambient conditions.
Maintenance and Replacement Notes
Verify the complete ATV340U40N4E model. ATV340U40N4 is the Sercos-oriented counterpart and requires a different communication project.
Back up the original drive configuration before replacement. Record Ethernet addressing, motor parameters, I/O functions, safety settings, option-module data and braking parameters.
For used drives, inspect cooling fans, DC-bus capacitors, Ethernet connectors, power terminals, control terminals and fault history.
Related Models
ATV340U40N4 is the corresponding 4 kW Sercos III version. It is intended for a different controller-network architecture.
Adjacent N4E models include ATV340U30N4E at 3 kW, ATV340U55N4E at 5.5 kW and ATV340U75N4E at 7.5 kW.
Inquiry and Supply Notes
Please provide the complete original model, motor nameplate, controller model, communication protocol, IP configuration, braking duty and machine application.
Confirm firmware, encoder interface, option cards, safety requirements, product condition, test scope, availability and delivery time before quotation.
