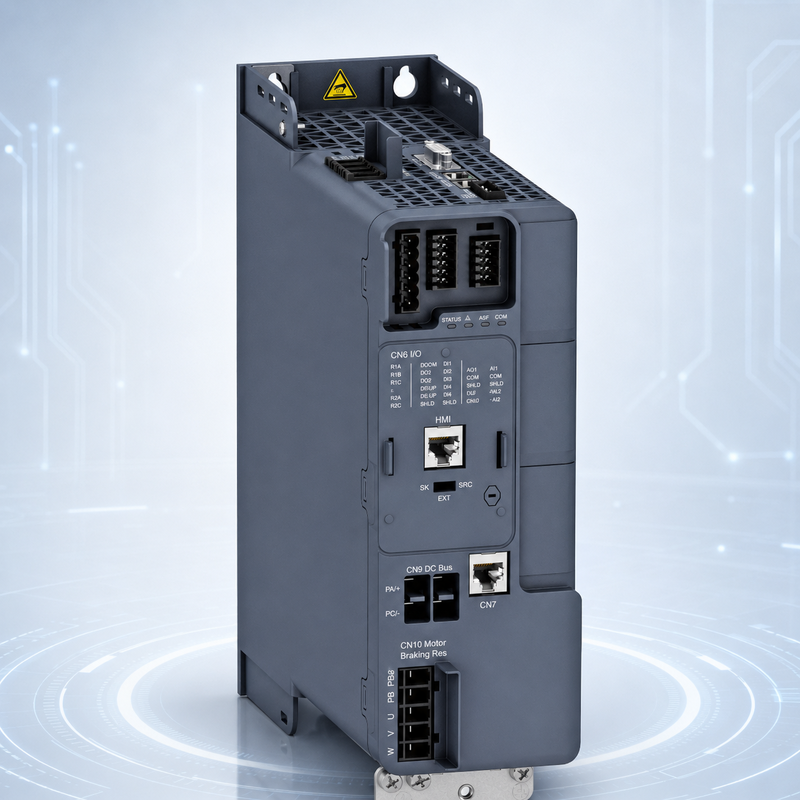

Schneider ATV340D22N4E Altivar Machine ATV340 22kW 380–480VAC Embedded Ethernet Variable Speed Drive
| Place of Origin | Germany |
| Brand Name | Schneider Electric |
| Model Number | ATV340D22N4E |
Product Overview
The Schneider ATV340D22N4E is a 22 kW, 30 HP high-performance variable speed drive from the Altivar Machine ATV340 series. It is designed for three-phase 380–480 VAC industrial machinery.
The N4E suffix identifies the embedded-Ethernet version with Modbus TCP, EtherNet/IP and Modbus serial communication. It is suitable for larger machine systems requiring direct connection to Ethernet-based PLC and automation networks.
The drive is intended for demanding applications involving high load inertia, rapid acceleration, controlled deceleration and precise speed or torque control.
Main Features
- Exact commercial reference: ATV340D22N4E
- Rated motor power: 22 kW
- Rated motor power: 30 HP
- Three-phase 380–480 VAC supply
- Embedded-Ethernet version
- Modbus TCP and EtherNet/IP communication
- Modbus serial communication
- Integrated Safe Torque Off function
- Designed for demanding machine applications
- Suitable for high-overload and dynamic operating cycles
Technical Specifications
| Model | ATV340D22N4E |
| Series | Altivar Machine ATV340 |
| Product Type | High-Performance Variable Speed Drive |
| Power Code | D22 |
| Rated Motor Power | 22 kW |
| Rated Motor Power | 30 HP |
| Supply Voltage | Three-phase 380–480 VAC |
| Communication Variant | Embedded Ethernet Version |
| Embedded Communication | Modbus TCP, EtherNet/IP and Modbus serial |
| Motor Compatibility | Asynchronous and supported synchronous or permanent-magnet motors |
| Motor Feedback | Confirm the encoder, option module and firmware configuration |
| Integrated Safety | Safe Torque Off; verify the required safety architecture |
| Overload Duty | Application-dependent; confirm load profile and motor current |
| Braking Configuration | Detailed braking-energy calculation may be required |
| Cooling | Verify cabinet airflow, fan condition and ambient derating |
| Availability | Confirm current supply status before quotation |
Compatible System and Applications
The ATV340D22N4E is suitable for large conveyors, hoisting equipment, heavy material-handling systems, packaging lines, mixers, production machinery and other demanding 22 kW machine applications.
The embedded-Ethernet configuration supports EtherNet/IP and Modbus TCP systems. Confirm the PLC, switch architecture, IP settings, communication mapping and controller project before installation.
Maintenance and Replacement Notes
Verify the exact ATV340D22N4E model. ATV340D22N4 is a Sercos-oriented drive and requires a different network configuration.
Back up motor data, Ethernet settings, I/O mapping, safety functions, braking parameters, firmware and installed option modules before replacement.
At this power level, inspect cooling fans, DC-bus capacitors, power connections, grounding, network ports and cabinet ventilation carefully.
Related Models
ATV340D22N4 is the corresponding 22 kW Sercos-oriented version.
Adjacent embedded-Ethernet models include ATV340D18N4E at 18.5 kW and ATV340D30N4E at 30 kW.
Inquiry and Supply Notes
Please provide the complete drive model, motor nameplate, application load, supply voltage, motor current, braking duty, Ethernet protocol and controller information.
Firmware, option cards, safety requirements, cabinet dimensions, product condition, testing scope, availability and delivery time must be confirmed before quotation.
