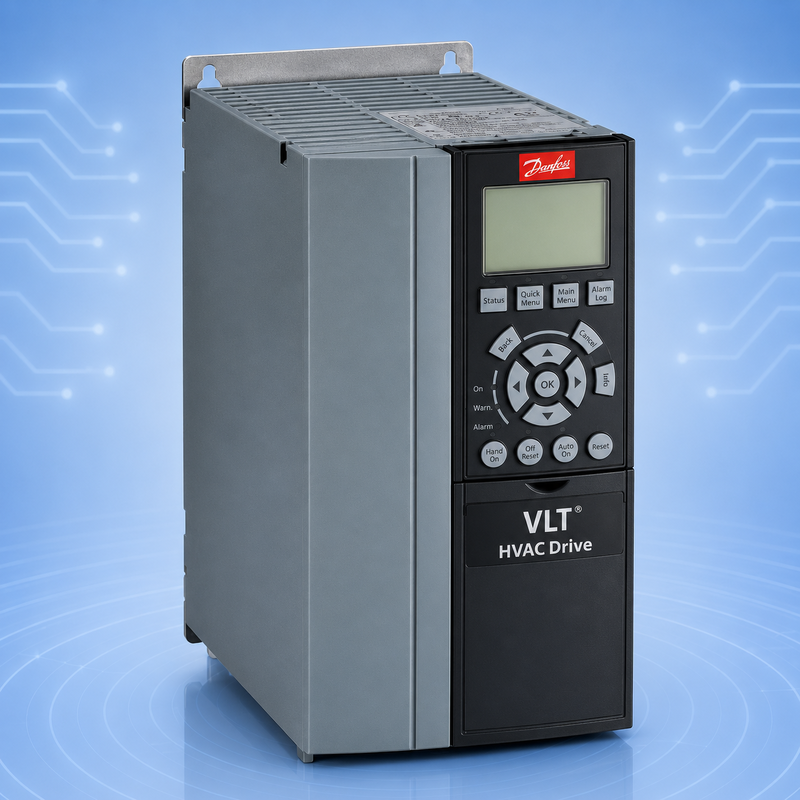

Danfoss 131B1696 FC-302P15KT5E21H1BGXXXXSXXXXAXBXCXXXXDX FC302 15kW 380-500VAC
| Place of Origin | Denmark |
| Brand Name | Danfoss |
| Model Number | FC-302P15KT5E21H1BGXXXXSXXXXAXBXCXXXXDX |
Product Overview
The Danfoss 131B1696 is an exact VLT AutomationDrive FC 302 configuration with the complete type code FC-302P15KT5E21H1BGXXXXSXXXXAXBXCXXXXDX.
The model belongs to the FC-302P15KT5 rating family and covers the 15 kW power class for three-phase 380-500 VAC industrial motor systems. Its long type code identifies an E21 IP21 enclosure, H1 RFI-filter configuration, integrated brake chopper and graphical local control panel.
Common search forms include 131B1696, FC-302P15KT5, FC302P15KT5 and Danfoss FC302 15kW. The complete long type code should remain the primary Model field because the short model alone does not identify the installed hardware configuration.
Main Features
- Danfoss commercial reference: 131B1696
- Complete type code: FC-302P15KT5E21H1BGXXXXSXXXXAXBXCXXXXDX
- Short model: FC-302P15KT5
- VLT AutomationDrive FC 302 platform
- 15 kW or 20 HP power class
- Three-phase 380-500 VAC supply class
- IP21 / Type 1 enclosure configuration
- H1 RFI Class A1/B filtering
- Brake chopper included
- Graphical local control panel included
- Standard PCB and mains-option configuration
- No additional expansion card identified in the type code
Technical Specifications
| Part Number | 131B1696 |
| Complete Model | FC-302P15KT5E21H1BGXXXXSXXXXAXBXCXXXXDX |
| Short Search Model | FC-302P15KT5 |
| Series | VLT AutomationDrive FC 302 |
| Product Type | Industrial Variable Frequency Drive |
| Power Class | 15 kW / 20 HP |
| Input Phase | Three-phase |
| Voltage Class | 380-500 VAC |
| Enclosure | E21 IP21 / Type 1 |
| RFI Filter | H1 Class A1/B configuration |
| Brake Chopper | Included |
| Control Panel | Graphical LCP included |
| PCB Coating | Standard uncoated configuration |
| Mains Option | No additional mains option identified |
| Cable Entry | Standard cable-entry configuration |
| Software Release | Standard release configuration |
| Option Slots | No additional A, B, C or D option identified |
| Verification Level | Exact part number plus complete type code |
| Supply Status | Confirm exact hardware revision before quotation |
Compatible System and Applications
The 131B1696 is relevant to compressors, conveyors, extruders, mixers, winding equipment, machine tools and automated production machinery requiring controlled speed or torque.
The drive must be matched to the actual motor current and application duty. High-inertia loads, repeated starts, rapid deceleration and continuous-torque machinery require a detailed overload and braking review.
For systems using encoder feedback, fieldbus communication, safety functions or optional I/O, verify whether the existing machine uses additional cards that are not included in this standard AX/BX/CX/DX configuration.
Maintenance and Replacement Notes
Use 131B1696 and FC-302P15KT5E21H1BGXXXXSXXXXAXBXCXXXXDX together when checking an exact replacement.
A different FC-302P15KT5 long code may have IP20, IP55 or another enclosure; it may also differ in brake chopper, LCP, PCB coating, communication, I/O or software options.
Save the complete drive parameter file before replacement. Important settings include motor identification, speed references, torque limits, current limits, acceleration ramps, deceleration ramps, braking control, terminal functions and communication parameters.
Related Models
Related exact references include 131B1557 for 11 kW, 131B1528 for 18.5 kW and 131B1522 for 22 kW.
The shortened FC-302P15KT5 model should be used as a search alias, not as the sole procurement specification.
Inquiry and Supply Notes
Please send the complete nameplate, motor nameplate, required quantity, load description, braking requirements, fieldbus protocol, installed cards and parameter backup.
Exact configuration, hardware revision, product condition, included LCP, testing requirements, warranty and delivery time must be confirmed before quotation.
