Danfoss 131B5313 FC-301P5K5T4E66H1XGXXXXSXXXXAXBXCXXXXDX VLT FC301 5.5kW

Product Overview

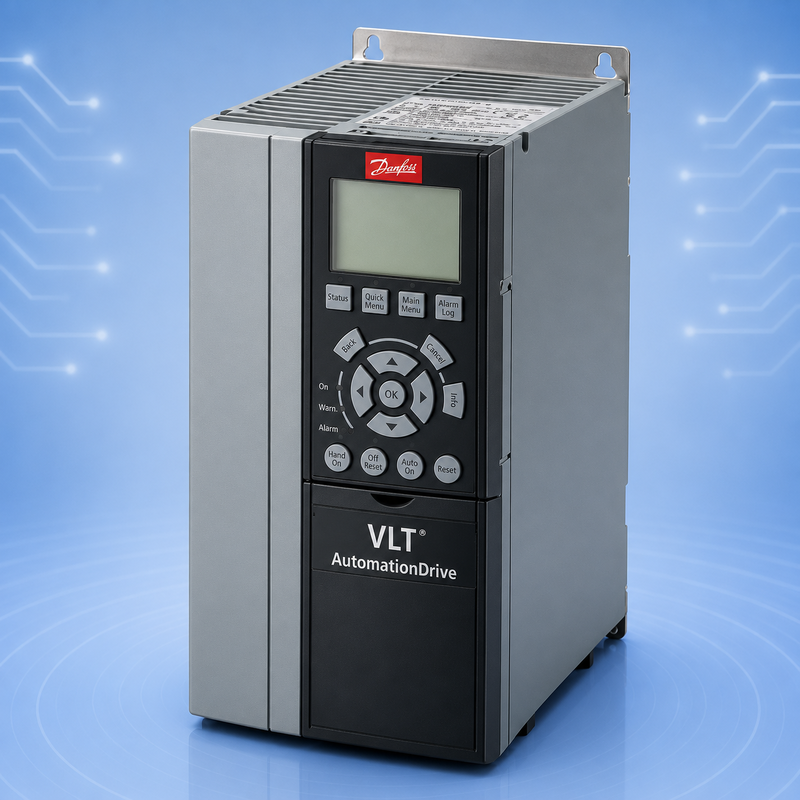

The Danfoss 131B5313 is an exact VLT AutomationDrive FC 301 frequency-converter configuration identified by the complete type code FC-301P5K5T4E66H1XGXXXXSXXXXAXBXCXXXXDX.

This product belongs to the FC-301P5K5T4 rating family and is designed for three-phase 380-480 VAC industrial motor-control applications. The P5K5 code identifies the 5.5 kW or 7.5 HP power class, while E66 identifies an IP66 / NEMA 4X enclosure.

Relevant procurement searches include 131B5313, FC-301P5K5T4E66H1XGXXXXSXXXXAXBXCXXXXDX, FC-301P5K5T4, Danfoss FC301 5.5kW and VLT FC 301 IP66. The commercial reference and complete model should both appear on quotations and replacement checks.

Main Features

• Danfoss part number: 131B5313
• Complete model: FC-301P5K5T4E66H1XGXXXXSXXXXAXBXCXXXXDX
• Short search model: FC-301P5K5T4
• VLT AutomationDrive FC 301 series
• 5.5 kW / 7.5 HP power class
• Three-phase 380-480 VAC mains supply
• E66 IP66 / NEMA 4X enclosure
• H1 RFI Class A1/B (C1) filter
• No brake chopper
• Graphical local control panel included
• Standard uncoated PCB configuration
• No additional A, B, C or D option identified

Technical Specifications

Compatible System and Applications

The 131B5313 can be evaluated for conveyors, packaging lines, mixers, pumps, fans, small compressors, material-handling systems and other industrial machines using a compatible three-phase motor.

The IP66 / NEMA 4X enclosure provides greater environmental protection than an IP20 chassis. Installation suitability must still be checked for cooling, direct water exposure, chemical atmosphere, ambient temperature, humidity and mounting clearance.

Motor full-load current, load torque, overload demand, acceleration cycle, operating speed and control method must be reviewed before confirming compatibility.

Maintenance and Replacement Notes

For a like-for-like replacement, match 131B5313 and FC-301P5K5T4E66H1XGXXXXSXXXXAXBXCXXXXDX with the original drive nameplate.

The shortened FC-301P5K5T4 code identifies the power and voltage family but does not independently confirm the enclosure, brake hardware, LCP, PCB coating or installed option configuration.

This specific configuration does not include a brake chopper. It must not automatically replace an FC 301 version equipped for dynamic braking.

Before replacement, export the parameter file and document the motor data, control mode, current and torque limits, acceleration and deceleration ramps, terminal functions, communication parameters and machine interlocks.

Related Models

The related 7.5 kW IP66 exact reference is 131B5235 with complete model FC-301P7K5T4E66H1XGXXXXSXXXXAXBXCXXXXDX.

The 3 kW reference 131B0988 uses an E20 IP20 enclosure and coated PCB configuration. It should remain a separate product page.

Inquiry and Supply Notes

Please provide the full original nameplate, motor nameplate, application description, enclosure requirement, communication network, installed options and parameter backup.

Confirm whether the exact IP66 enclosure and graphical control panel are required.

Exact condition, included accessories, functional testing, warranty, regional availability and delivery time must be confirmed before quotation.
