Danfoss 131B0988 FC-301P3K0T4E20H1XGCXXXSXXXXAXBXCXXXXDX VLT

Product Overview

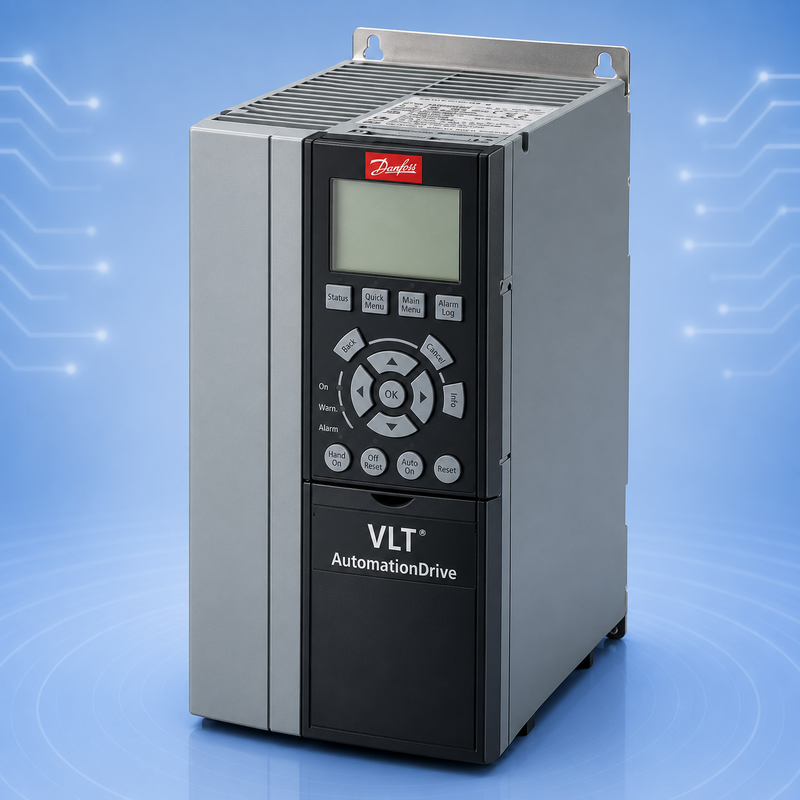

The Danfoss 131B0988 is an exact VLT AutomationDrive FC 301 frequency-converter configuration identified by the complete type code FC-301P3K0T4E20H1XGCXXXSXXXXAXBXCXXXXDX.

This product belongs to the FC-301P3K0T4 rating family and is designed for three-phase 380-480 VAC industrial motor-control systems. The P3K0 code identifies the 3 kW power class, while the E20 enclosure code identifies an IP20 chassis configuration.

Customers may search for this product using 131B0988, FC-301P3K0T4E20H1XGCXXXSXXXXAXBXCXXXXDX, FC-301P3K0T4, Danfoss FC301 3kW or VLT FC 301 IP20. Exact procurement should use the part number and complete type code together.

Main Features

• Danfoss commercial reference: 131B0988
• Complete type code: FC-301P3K0T4E20H1XGCXXXSXXXXAXBXCXXXXDX
• Short search reference: FC-301P3K0T4
• VLT AutomationDrive FC 301 family
• 3 kW power class
• Three-phase 380-480 VAC mains supply
• E20 IP20 chassis enclosure
• H1 RFI Class A1/B (C1) filter configuration
• No brake chopper
• Graphical local control panel included
• Coated PCB configuration
• Compact A2 frame configuration

Technical Specifications

Compatible System and Applications

The 131B0988 can be evaluated for compact conveyors, packaging machines, mixers, dosing equipment, pumps, fans, machine tools and general industrial automation applications.

The IP20 enclosure is normally intended for installation inside a suitable electrical cabinet. Cabinet protection, cooling, ventilation, contamination level, ambient temperature and installation clearance must be considered separately.

The coated PCB configuration can provide additional environmental resistance compared with an uncoated version, but it does not change the IP20 enclosure classification.

Final selection must be verified using motor current, torque demand, overload duty, acceleration and deceleration times, speed range and application-control requirements.

Maintenance and Replacement Notes

For exact procurement, match both 131B0988 and FC-301P3K0T4E20H1XGCXXXSXXXXAXBXCXXXXDX against the original drive nameplate.

Do not substitute an IP66 FC 301 solely because it has the same voltage family. The enclosure, cabinet arrangement, cable entries, cooling method and physical dimensions may differ.

This configuration does not include a brake chopper. Dynamic-braking requirements must be assessed before selecting a replacement.

Back up the existing parameter set and document motor data, control mode, speed and torque limits, current limits, ramp settings, digital and analog terminal functions and communication parameters.

Related Models

Related exact FC 301 references include 131B5313 for 5.5 kW IP66 and 131B5235 for 7.5 kW IP66.

The E20 IP20 and E66 IP66 products must remain separate pages because they target different installation environments and physical configurations.

Inquiry and Supply Notes

Please provide the complete original nameplate, motor data, cabinet conditions, machine application, communication protocol, installed option cards and parameter backup.

Confirm whether coated PCB, graphical LCP and the exact IP20 enclosure are required.

Exact product condition, hardware revision, testing, included accessories, warranty and delivery time must be confirmed before quotation.
