Danfoss 131B0150 FC-302P4K0T5E20H2XGCXXXSXXXXAXBXCXXXXDX VLT AutomationDrive

Product Overview

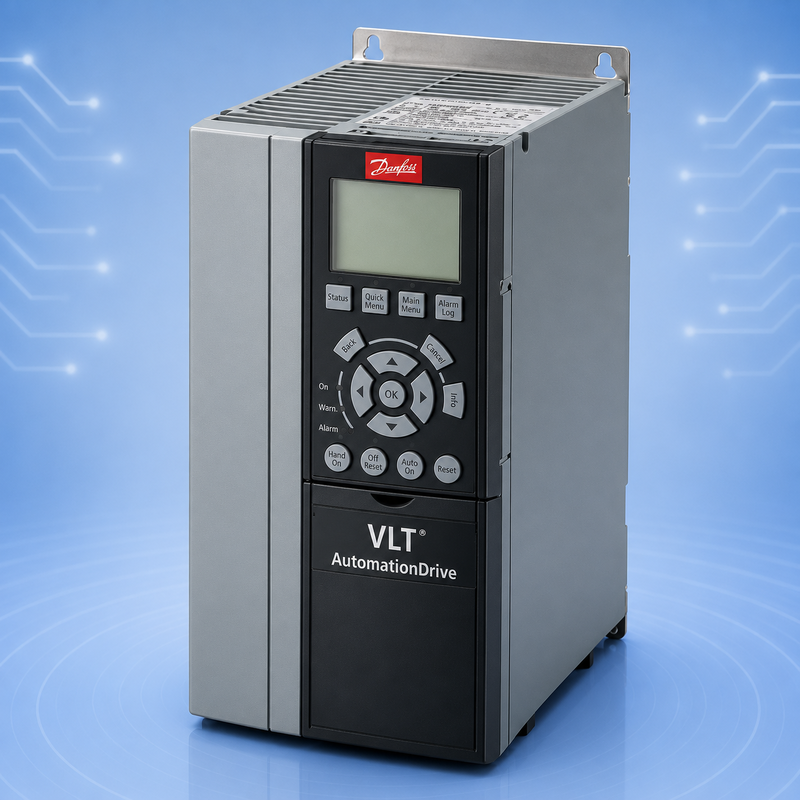

The Danfoss 131B0150 is an exact VLT AutomationDrive FC 302 frequency-converter configuration identified by the complete type code FC-302P4K0T5E20H2XGCXXXSXXXXAXBXCXXXXDX.

This configuration is rated for 4 kW / 5.5 HP high-overload motor-control applications and operates from a three-phase 380-500 VAC mains supply. The E20 enclosure code identifies an IP20 chassis unit intended primarily for installation inside a suitable electrical control cabinet.

The complete type code specifies an H2 RFI Class A2 (C3) filter, no brake chopper, graphical local control panel, coated PCB and no additional mains option. The standard configuration does not include additional A, B, C0, C1, software or D options.

Important procurement searches include 131B0150, FC-302P4K0T5E20H2XGCXXXSXXXXAXBXCXXXXDX, FC-302P4K0T5, FC302P4K0T5, Danfoss FC302 4kW and VLT AutomationDrive FC 302 5.5HP.

Main Features

• Danfoss commercial reference: 131B0150
• Complete type code: FC-302P4K0T5E20H2XGCXXXSXXXXAXBXCXXXXDX
• Short search model: FC-302P4K0T5
• VLT AutomationDrive FC 302 product family
• 4 kW / 5.5 HP high-overload power class
• Three-phase 380-500 VAC mains supply
• E20 IP20 chassis enclosure
• H2 RFI Class A2 (C3) filter
• No brake chopper
• Graphical local control panel included
• Coated PCB configuration
• No additional mains option
• Standard software and standard language pack
• A2 frame size

Technical Specifications

Compatible System and Applications

The 131B0150 can be evaluated for conveyors, packaging equipment, mixers, dosing systems, pumps, fans, winding equipment, machine tools and other automated machines requiring accurate motor-speed or torque control.

The FC 302 platform can be used with compatible asynchronous motors and other supported motor technologies, subject to firmware, motor data and application requirements. Final drive selection must be based on the motor nameplate current rather than power rating alone.

The IP20 chassis is normally installed inside an electrical cabinet. Cabinet protection, cooling, ventilation, ambient temperature, contamination level and installation clearance must be reviewed separately.

Maintenance and Replacement Notes

For an exact replacement, match both 131B0150 and FC-302P4K0T5E20H2XGCXXXSXXXXAXBXCXXXXDX character by character.

Do not approve a replacement using only the shortened FC-302P4K0T5 reference. Other 4 kW versions may use a different RFI filter, brake configuration, LCP, PCB coating, enclosure or communication option.

This configuration does not contain a brake chopper. It must not automatically replace a model equipped with brake hardware when the machine requires rapid deceleration or control of regenerative loads.

Back up the complete parameter file before removing the installed drive. Record motor data, control mode, current and torque limits, ramp times, encoder configuration, terminal assignments, fieldbus settings and machine interlocks.

Related Models

Related exact configurations include 131B0149 for 3 kW, 131B0151 for 5.5 kW and 131B0152 for 7.5 kW within the same H2, graphical-LCP and coated-PCB product group.

Different long type codes within the FC-302P4K0T5 family must remain separate procurement pages because their installed hardware may differ.

Inquiry and Supply Notes

Please provide a clear photograph of the original nameplate showing the commercial reference, complete type code, serial number and hardware information.

Also confirm the motor data, application duty, required quantity, braking requirements, feedback device, fieldbus protocol, installed option cards and parameter backup.

Exact product condition, included LCP, accessories, testing scope, warranty, packaging and delivery time must be confirmed before quotation.
