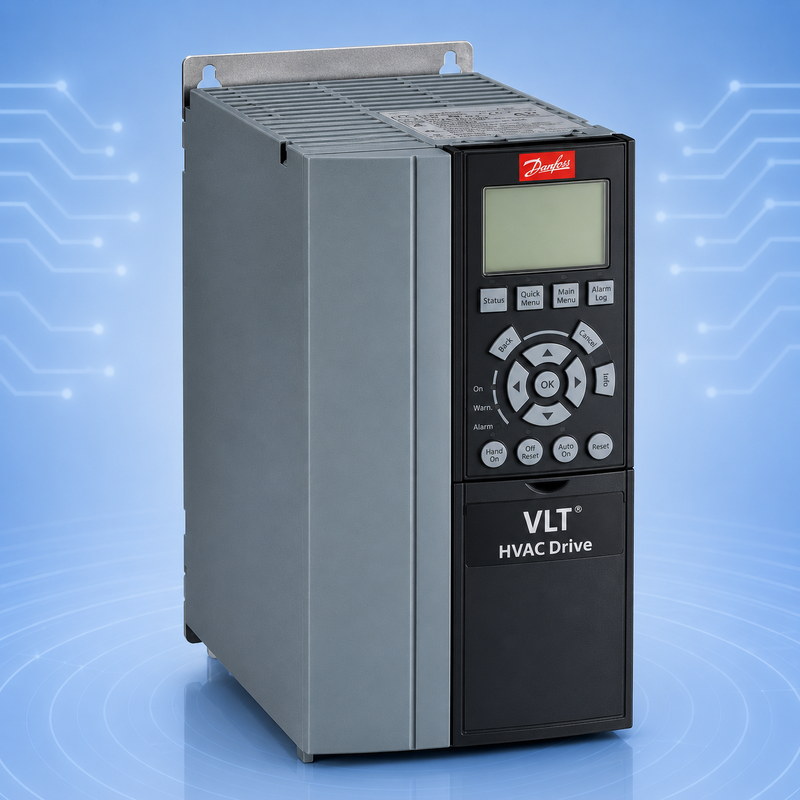

Danfoss 131F0427 FC-102P11KT4E20H1XGXXXXSXXXXAXBXCXXXXDX VLT HVAC Drive
| Place of Origin | Denmark |
| Brand Name | Danfoss |
| Model Number | FC-102P11KT4E20H1XGXXXXSXXXXAXBXCXXXXDX |
Product Overview
The Danfoss 131F0427 is associated with the FC-102P11KT4E20H1XGXXXXSXXXXAXBXCXXXXDX VLT HVAC Drive FC 102 configuration. It is rated for 11kW HVAC fan, pump and compressor applications using a three-phase 380–480VAC supply.
Main Features
- 11kW HVAC frequency converter
- Three-phase 380–480VAC supply
- IP20 chassis-style enclosure
- H1 RFI filter configuration
- Designed for variable-torque HVAC loads
- Suitable for building automation systems
Technical Specifications
| Commercial Reference | 131F0427 |
| Model | FC-102P11KT4E20H1XGXXXXSXXXXAXBXCXXXXDX |
| Series | VLT HVAC Drive FC 102 |
| Rated Power | 11kW |
| Supply Voltage | 3 * 380–480VAC |
| Enclosure | IP20 / Chassis |
| RFI / EMC | H1 filter configuration |
| Lifecycle | Active HVAC drive platform |
Compatible System and Applications
This drive can be used with air-handling units, ventilation fans, circulation pumps, chilled-water systems and compatible HVAC compressors.
Maintenance and Replacement Notes
Confirm motor current, complete type code, commercial reference, frame size, LCP, RFI configuration, communication option, I/O and firmware before installation or replacement.
Related Models
Related products include other FC-102P11KT4 IP20, IP21 and IP55 configurations.
Inquiry and Supply Notes
The commercial reference and type code relationship must be checked against official configuration data or the installed nameplate. Source Grade: C. Need Verification: Yes.
