Danfoss 131B4224 FC-102P5K5T4E55H1XGXXXXSXXXXAXBXCXXXXDX VLT HVAC Drive
| Place of Origin | Denmark |
| Brand Name | Danfoss |
| Model Number | FC-102P5K5T4E55H1XGXXXXSXXXXAXBXCXXXXDX |
Product Overview

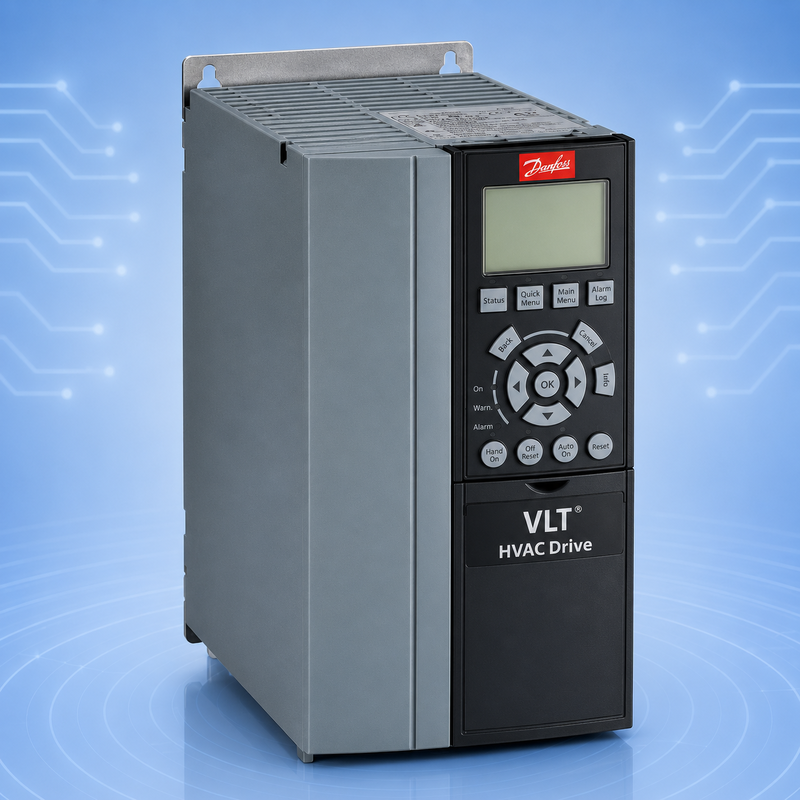

The Danfoss 131B4224 is associated with the FC-102P5K5T4E55H1XGXXXXSXXXXAXBXCXXXXDX VLT HVAC Drive FC 102 configuration. This 5.5kW HVAC drive uses a three-phase 380–480VAC supply and features an IP55 enclosure for installations requiring increased environmental protection.
Main Features
- 5.5kW HVAC drive configuration
- Three-phase 380–480VAC input
- IP55 protected enclosure
- H1 RFI filter configuration
- Suitable for fans, pumps and compressors
- Designed for building-services and HVAC machinery
Technical Specifications
| Commercial Reference | 131B4224 |
| Model | FC-102P5K5T4E55H1XGXXXXSXXXXAXBXCXXXXDX |
| Series | VLT HVAC Drive FC 102 |
| Rated Power | 5.5kW |
| Supply Voltage | 3 * 380–480VAC |
| Enclosure | IP55 |
| RFI / EMC | H1 filter configuration |
| Lifecycle | Active HVAC drive platform |
Compatible System and Applications
Typical uses include ventilation equipment, rooftop HVAC units, circulation pumps, cooling towers and installations where an IP55 enclosure is preferred.
Maintenance and Replacement Notes
Verify the complete order code, rated current, enclosure construction, LCP, coating, communication option, I/O configuration and software compatibility before replacement.
Related Models
Related versions include FC-102P5K5T4E20H1, FC-102P5K5T4E20H2 and other FC 102 5.5kW configurations.
Inquiry and Supply Notes
Marketplace data associates 131B4224 with this type code. Official confirmation remains necessary before supply. Source Grade: C. Need Verification: Yes.
