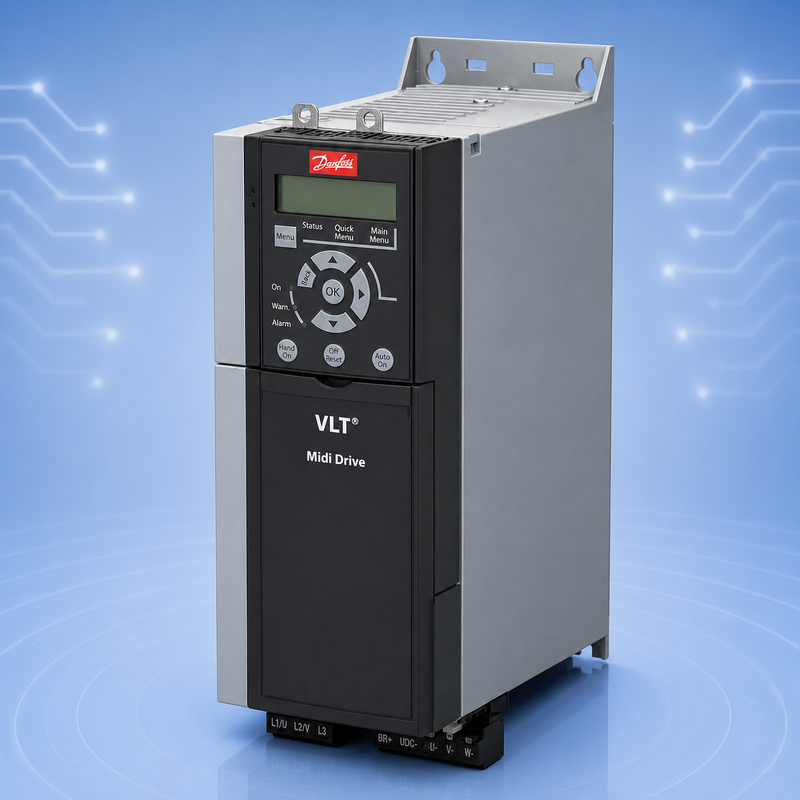

Danfoss 134U2984 FC-280P4K0T4E20H1BXCXXXSXXXXAX VLT Midi Drive 4kW 380-480V IP20
| Place of Origin | Denmark |
| Brand Name | Danfoss |
| Model Number | FC-280P4K0T4E20H1BXCXXXSXXXXAX |
Product Overview
The Danfoss 134U2984 is a configured VLT Midi Drive FC 280 frequency converter identified by the complete type code FC-280P4K0T4E20H1BXCXXXSXXXXAX.
The drive is rated for 4 kW / 5 HP and uses a three-phase 380-480 VAC input supply. Its E20 IP20 chassis construction is intended for mounting inside an industrial electrical cabinet.
This configuration includes an H1 RFI filter, brake IGBT, coated PCB and integrated Modbus RTU communication. It does not include a factory-installed local control panel or additional mains option.
Relevant procurement searches include 134U2984, FC-280P4K0T4E20H1BXCXXXSXXXXAX, FC-280P4K0T4, Danfoss FC 280 4kW and VLT 2800 4kW replacement drive.
Main Features
- Exact Danfoss commercial reference 134U2984
- 4 kW / 5 HP industrial motor rating
- Three-phase 380-480 VAC input
- IP20 chassis for cabinet installation
- Integrated H1 RFI filtering
- Brake IGBT for compatible braking-resistor applications
- Coated PCB for industrial environments
- Integrated Modbus RTU communication
- Compact design for machine control panels
- Suitable for pumps, fans, conveyors and process machinery
- Supports asynchronous and permanent-magnet motor control
- Suitable for selected VLT 2800 modernization projects
Technical Specifications
| Commercial Reference | 134U2984 |
| Complete Type Code | FC-280P4K0T4E20H1BXCXXXSXXXXAX |
| Series | VLT Midi Drive FC 280 |
| Equipment Type | AC Variable Frequency Drive |
| Rated Motor Power | 4 kW / 5 HP |
| Power Code | P4K0 |
| Voltage Code | T4 |
| Input Voltage | 3-phase 380-480 VAC |
| Supply Frequency | 50/60 Hz |
| Motor Output | Three-phase adjustable output |
| Output Frequency | Application dependent, up to the FC 280 platform limit |
| Enclosure | E20 |
| Protection | IP20 / Open Chassis |
| RFI Configuration | H1 |
| EMC Filter | Integrated C1 at 200 V / C2 at 400 V filter classification |
| Brake Hardware | Brake IGBT included |
| Display | No LCP installed |
| PCB Coating | Class 3C3 coated PCB |
| Integrated Communication | Modbus RTU |
| Mains Option | No additional mains option |
| Control Method | FC 280 motor-control platform for variable-speed applications |
| Motor Types | Asynchronous and permanent-magnet motors |
| Safety | Safe Torque Off platform capability |
| Lifecycle | Active FC 280 platform |
Compatible System and Applications
The 134U2984 is suitable for conveyor systems, industrial pumps, ventilation fans, mixers, packaging lines, compressors and general production machinery requiring controlled motor speed and acceleration.
Its Modbus RTU interface enables connection to compatible industrial controllers. The master configuration, addressing, baud rate, control word and process-data mapping must be confirmed during system integration.
Maintenance and Replacement Notes
Before replacing an existing drive, compare commercial reference 134U2984 and complete type code FC-280P4K0T4E20H1BXCXXXSXXXXAX. A short designation such as FC-280P4K0T4 does not identify all installed options.
For a VLT 2800 retrofit, verify the legacy sales code, motor nameplate current, control wiring, braking resistor, fieldbus network, application parameters, mechanical dimensions and cabinet cooling. Parameter conversion and engineering commissioning are normally required.
Related Models
Related power families include FC-280P3K0T4, FC-280P5K5T4, FC-280P7K5T4 and FC-280P11KT4. Select the complete commercial reference according to the required enclosure, RFI class, display and fieldbus.
Inquiry and Supply Notes
Submit the complete drive nameplate and machine information for quotation. Availability, hardware revision, accessories, braking resistor requirements and delivery time must be confirmed for each order.
