Danfoss 131F6641 FC-202P15KT4E20H2XGXXXXSXXXXAXBXCXXXXDX VLT AQUA Drive FC 202
| Place of Origin | Denmark |
| Brand Name | Danfoss |
| Model Number | FC-202P15KT4E20H2XGXXXXSXXXXAXBXCXXXXDX |

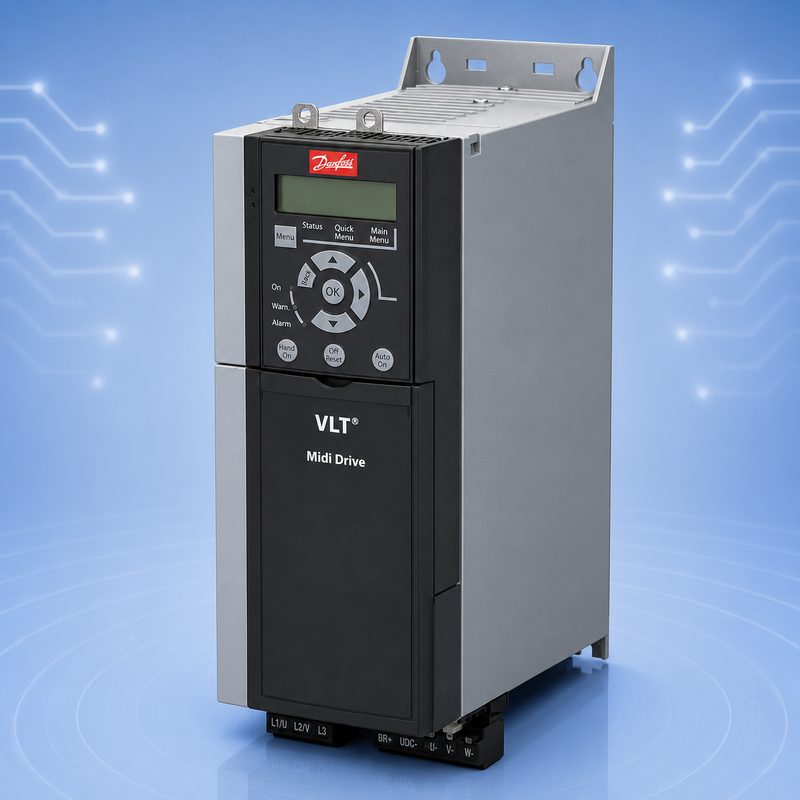

Danfoss 131F6641 VLT AQUA Drive FC 202
The Danfoss 131F6641 is a 15 kW / 20 HP VLT® AQUA Drive FC 202 variable frequency drive designed for three-phase 380–480 VAC motor systems. It provides dependable variable-speed control for water, wastewater and pump applications.
Complete model: FC-202P15KT4E20H2XGXXXXSXXXXAXBXCXXXXDX. This configuration uses an IP20 chassis enclosure, H2 RFI filter and graphical local control panel. An optional fieldbus communication module is not included.
Product Highlights
- Danfoss VLT® AQUA Drive FC 202
- 15 kW / 20 HP rated power
- Three-phase 380–480 VAC input
- IP20 chassis construction
- H2 RFI filter for EMC Category C3
- Graphical local control panel
- Configuration without optional fieldbus module
- Suitable for pump and variable-torque motor control
Technical Specifications
| Brand | Danfoss |
| Commercial Reference | 131F6641 |
| Complete Model | FC-202P15KT4E20H2XGXXXXSXXXXAXBXCXXXXDX |
| Product Series | VLT® AQUA Drive FC 202 |
| Rated Power | 15 kW / 20 HP |
| Input Voltage | 3-Phase 380–480 VAC |
| Enclosure | IP20 / Chassis |
| RFI Filter | H2 / EMC Category C3 |
| Brake Chopper | Not Included |
| Display | Graphical LCP |
| Communication | Not Included |
| PCB Coating | Not Coated |
Typical Applications
Suitable for water supply pumps, wastewater pumps, booster stations, circulation equipment, irrigation systems and industrial water-treatment plants.
Ordering Notice
Please match commercial reference 131F6641 with complete model FC-202P15KT4E20H2XGXXXXSXXXXAXBXCXXXXDX. Optional communication modules should not be assumed to be included unless separately specified.
