Danfoss 135N5817 FC-202P37KT4E66H2XGC3XXSXXXXANBXCXXXXDX VLT AQUA Drive FC 202
| Place of Origin | Denmark |
| Brand Name | Danfoss |
| Model Number | FC-202P37KT4E66H2XGC3XXSXXXXANBXCXXXXDX |

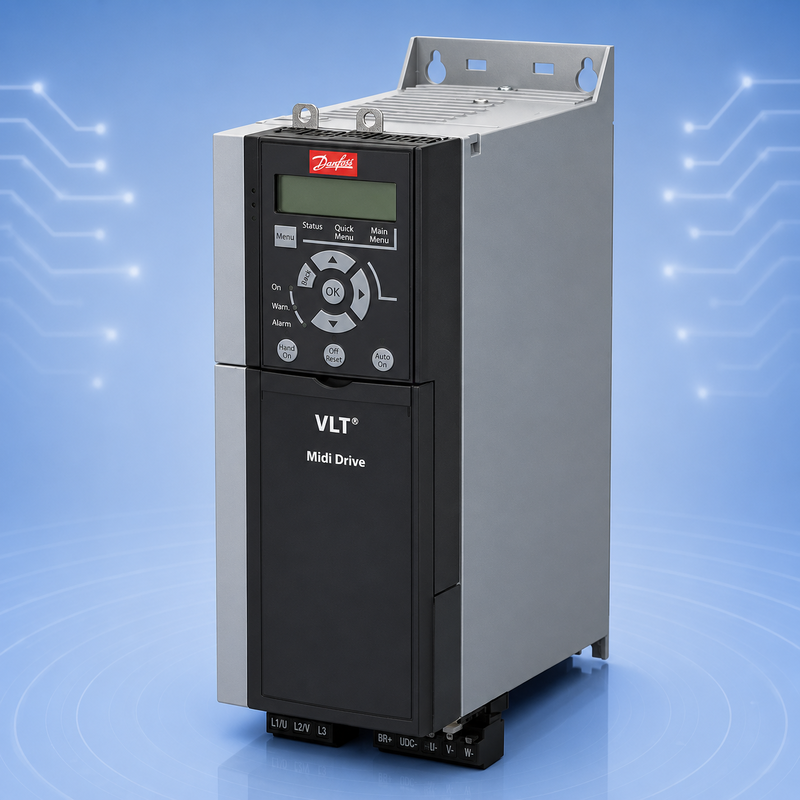

Danfoss 135N5817 VLT AQUA Drive FC 202
The Danfoss 135N5817 is a high-power VLT® AQUA Drive FC 202 variable frequency drive rated at 37 kW / 50 HP. It is designed for three-phase 380–480 VAC motor systems used in water, wastewater and industrial pumping applications.
Complete model: FC-202P37KT4E66H2XGC3XXSXXXXANBXCXXXXDX. This configuration combines an IP55 / NEMA Type 12 enclosure, H2 RFI filter, graphical local control panel, EtherNet/IP communication and coated circuit boards.
Product Highlights
- 37 kW / 50 HP rated power
- Three-phase 380–480 VAC input
- IP55 / NEMA Type 12 enclosure
- H2 RFI filter for EMC Category C3
- Graphical local control panel
- EtherNet/IP industrial communication
- Coated PCB Class 3C3
- Designed for larger pump and water-process systems
Technical Specifications
| Brand | Danfoss |
| Commercial Reference | 135N5817 |
| Complete Model | FC-202P37KT4E66H2XGC3XXSXXXXANBXCXXXXDX |
| Product Series | VLT® AQUA Drive FC 202 |
| Rated Power | 37 kW / 50 HP |
| Input Voltage | 3-Phase 380–480 VAC |
| Enclosure | IP55 / NEMA Type 12 |
| RFI Filter | H2 / EMC Category C3 |
| Brake Chopper | Not Included |
| Display | Graphical LCP |
| Communication | EtherNet/IP |
| PCB Coating | Coated PCB Class 3C3 |
Typical Applications
Suitable for municipal water systems, wastewater facilities, high-capacity booster pumps, transfer pumps, circulation systems, treatment plants and industrial water-processing equipment.
Ordering Notice
Please confirm commercial reference 135N5817 and complete model FC-202P37KT4E66H2XGC3XXSXXXXANBXCXXXXDX. FC 202 units with the same power rating can have different enclosure, communication, filter and hardware configurations.
