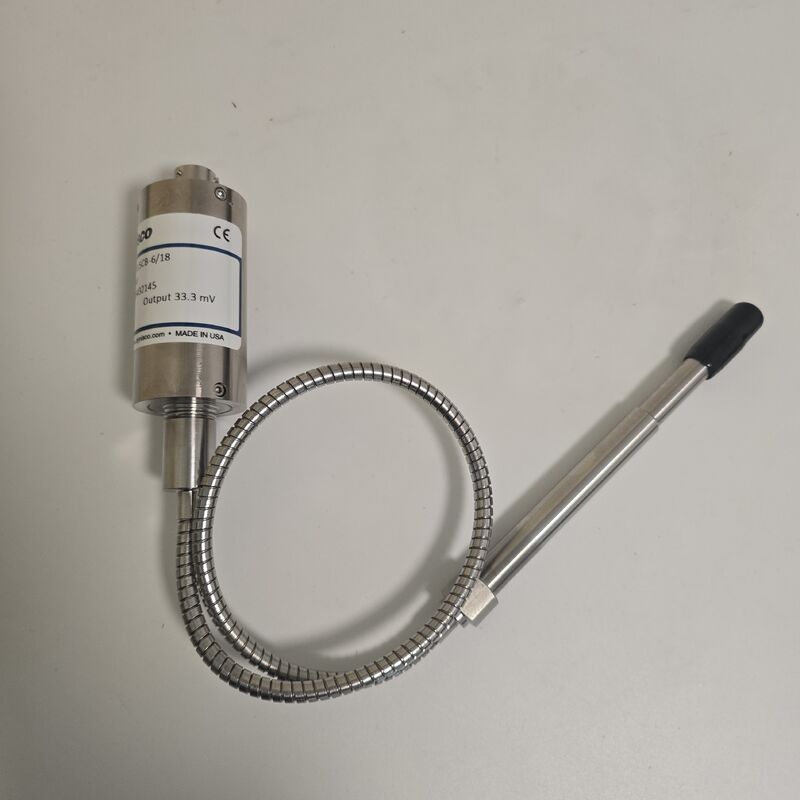

Dynisco PT4624-10M-6/18-SIL2 Melt Pressure Transmitter 4-20mA

Product Overview

The Dynisco PT4624-10M-6/18-SIL2 is a two-wire 4-20 mA melt-pressure transmitter with a nominal measurement range of 0 to 10,000 psi. It is intended for higher-pressure polymer-processing systems that require an amplified current signal for a PLC, process controller or monitoring system.

The flexible-capillary construction separates the electronics housing from the high-temperature process connection. Its safety-oriented SIL2 designation must be evaluated together with the machine safety architecture, diagnostic coverage and required proof-test procedure.

Main Product Information

High-Pressure Integration

The receiving controller must be scaled for 10,000 psi at the upper end of the 4-20 mA signal. Pressure spikes, startup conditions and process blockages must be considered when confirming range suitability. Mechanical condition of the mounting hole is also important for reliable installation.

Typical Applications

• High-pressure extrusion lines
• Screen-changer pressure monitoring
• Melt-pump and filtration systems
• Engineering-plastics compounding
• PLC-based process and safety monitoring

Replacement Checklist

Verify the 10M range, complete suffix, 4-20 mA input, loop supply, connector, rigid and flexible lengths, 1/2-20 UNF mounting hole and safety requirements. Do not replace it with an mV/V device without changing the instrumentation and wiring.

Inquiry and Supply Notes

Send the original nameplate, controller information and safety-document requirements for exact configuration review.
