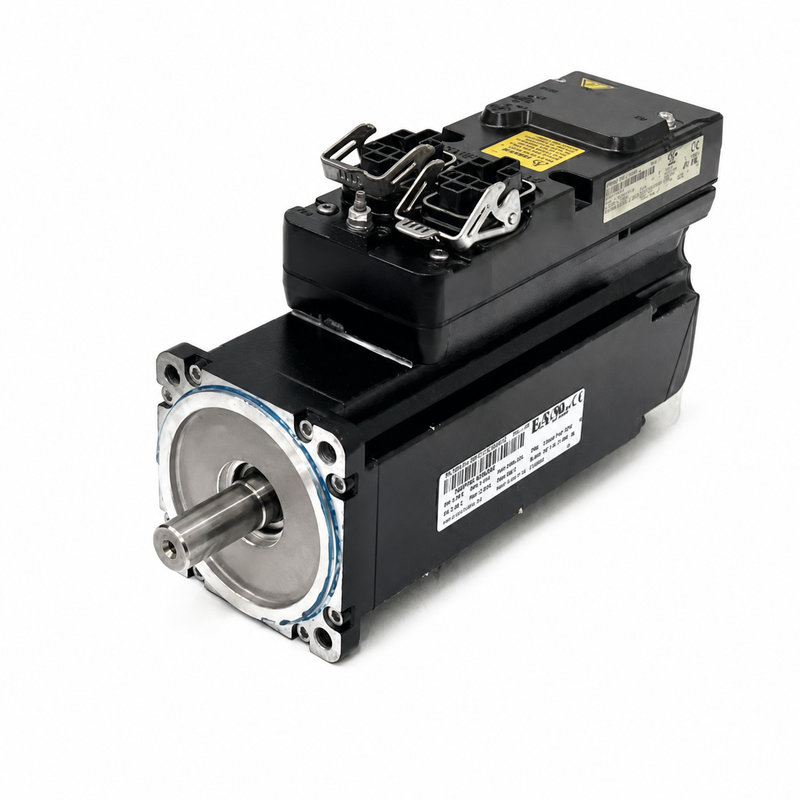

B&R 8LVA13.B1030D000-0 Compact Servo Motor 101W 3000RPM Without Brake
| Place of Origin | Germany |
| Brand Name | B&R |
| Model Number | 8LVA13.B1030D000-0 |
Product Overview
The B&R 8LVA13.B1030D000-0 is a compact 101 W synchronous servo motor developed for small positioning and speed-control axes. The motor operates at a nominal speed of 3000 rpm and provides a nominal torque of 0.32 Nm, a stall torque of 0.36 Nm and a maximum torque of 1 Nm.
Its slim size 1 construction, multi-turn encoder and smooth shaft make it suitable for compact industrial machinery requiring accurate position feedback and limited installation space.
Main Features
- Compact 8LVA size 1 synchronous servo motor
- Nominal output power of 101 W
- Nominal speed of 3000 rpm
- Maximum speed up to 6600 rpm
- Nominal torque of 0.32 Nm
- Stall torque of 0.36 Nm
- Maximum torque of 1 Nm
- B1 EnDat 2.2 inductive multi-turn encoder
- Self-cooled construction without holding brake
- Smooth shaft and swivelling angled connector
Technical Specifications
| Brand | B&R |
| Complete Model | 8LVA13.B1030D000-0 |
| Series | 8LVA |
| Motor Type | Permanent-Magnet Synchronous Servo Motor |
| Motor Size | Size 1, Length 3 |
| Nominal Power | 101 W |
| Nominal Speed | 3000 rpm |
| Maximum Speed | 6600 rpm |
| Nominal Torque | 0.32 Nm |
| Stall Torque | 0.36 Nm |
| Maximum Torque | 1 Nm |
| Nominal Current | 1.4 A |
| Stall Current | 1.6 A |
| Maximum Current | 5.2 A |
| Number of Pole Pairs | 4 |
| Encoder | B1 EnDat 2.2 Inductive 16-Line Multi-Turn |
| Holding Brake | No |
| Centering Diameter | 30 mm, h7 Fit |
| Protection Class | IP54 Standard Configuration |
Compatible System and Applications
The motor can be used in compact ACOPOS and ACOPOSmicro motion systems after confirming the drive current and feedback interface. Typical applications include electronic assembly machines, testing devices, dosing systems, small indexing tables, light handling axes and laboratory automation.
Maintenance and Replacement Notes
Replacement selection must be based on the complete model rather than the shortened 8LVA13 designation. Verify the encoder, brake configuration, connector direction, shaft design, mechanical mounting dimensions, motor revision and drive configuration.
Related Models
Related models include 8LVA13.B1030D200-0 with a holding brake, 8LVA23.B1030D000-0 and 8LVA33.B1021D000-0. The larger models have different torque ratings and mounting dimensions.
Inquiry and Supply Notes
Please send the original motor nameplate and application information with the inquiry. Confirm condition, revision, encoder configuration and regional availability before quotation.
