B&R 8LVA33.B1015D100-0 Servo Motor 393W 1500RPM with Keyed Shaft

Product Overview

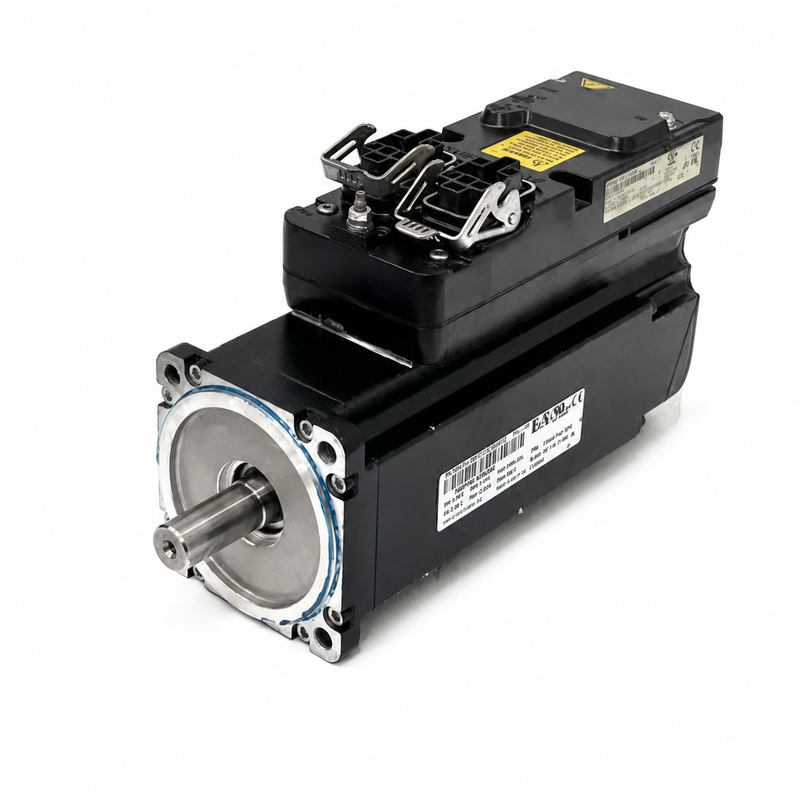

The B&R 8LVA33.B1015D100-0 is a size 3 compact synchronous servo motor rated for a nominal speed of 1500 rpm. The underlying 8LVA33 1500 rpm motor configuration provides approximately 393 W nominal power, 2.5 Nm nominal torque and 2.6 Nm stall torque.

This version combines B1 EnDat 2.2 multi-turn feedback with a keyed shaft and no holding brake. It is suitable for compact machine axes requiring higher continuous torque and reliable mechanical coupling.

Main Features

• Compact size 3 synchronous servo motor
• Nominal output power of approximately 393 W
• Nominal speed of 1500 rpm
• Nominal torque of 2.5 Nm
• Stall torque of 2.6 Nm
• Maximum torque up to 7.2 Nm
• B1 EnDat 2.2 inductive multi-turn encoder
• Keyed shaft without holding brake
• Self-cooled construction
• Suitable for moderate-speed, higher-torque axes

Technical Specifications

Compatible System and Applications

Typical applications include packaging machinery, indexing equipment, compact conveyors, assembly systems and handling axes requiring higher torque at moderate speed. Confirm drive sizing according to the required torque-speed curve and duty cycle.

Maintenance and Replacement Notes

Verify the complete model, B1 encoder, keyed shaft, absence of a brake, connector arrangement, motor revision and compatible ACOPOS drive. Parameter data should be backed up before replacing an installed motor or drive.

Related Models

Related configurations include other 8LVA33 motors with resolver feedback, smooth shafts, oil seals or holding brakes. The 2100 rpm 8LVA33.B1021D000-0 has different speed characteristics.

Inquiry and Supply Notes

Please provide the complete motor nameplate, application speed and load requirements. Confirm condition, revision and regional availability before quotation.
