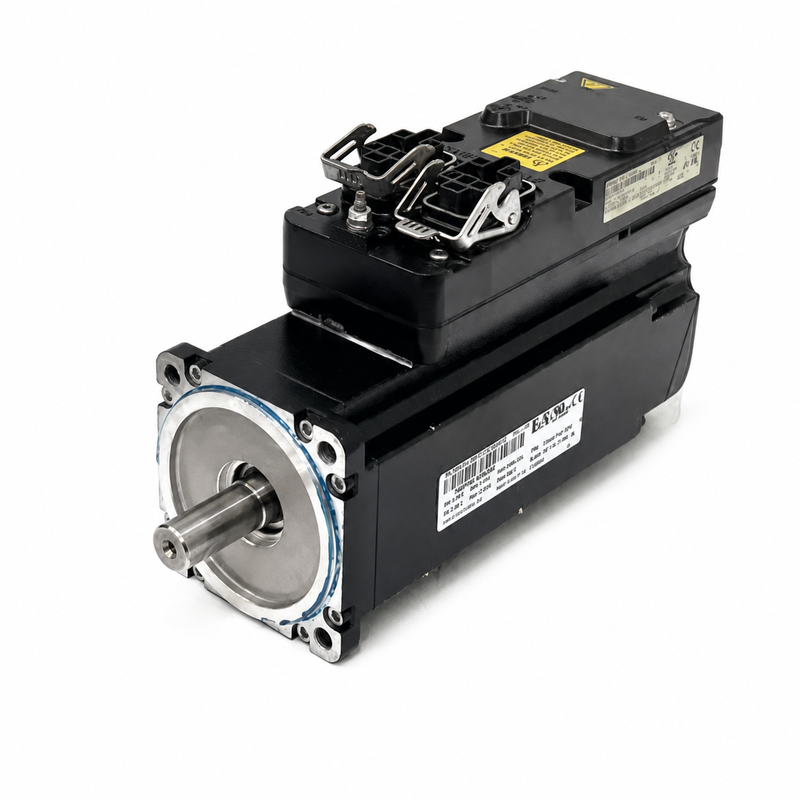

B&R 8LVA13.R0030D000-0 Compact Servo Motor 101W 3000RPM Resolver
| Place of Origin | Germany |
| Brand Name | B&R |
| Model Number | 8LVA13.R0030D000-0 |
Product Overview
The B&R 8LVA13.R0030D000-0 is a compact size 1 synchronous servo motor equipped with R0 resolver feedback. It is designed for small industrial positioning axes requiring a robust feedback system and minimal installation space.
The motor operates at a nominal speed of 3000 rpm and provides approximately 101 W nominal power, 0.32 Nm nominal torque, 0.36 Nm stall torque and up to 1 Nm maximum torque.
Main Features
- Compact 8LVA size 1 motor
- Nominal output power of approximately 101 W
- Nominal speed of 3000 rpm
- Maximum speed up to 6600 rpm
- Stall torque of 0.36 Nm
- Maximum torque of 1 Nm
- R0 resolver feedback
- Smooth shaft without oil seal
- Without integrated holding brake
- Self-cooled construction
Technical Specifications
| Brand | B&R |
| Complete Model | 8LVA13.R0030D000-0 |
| Series | 8LVA |
| Motor Size | Size 1, Length 3 |
| Motor Type | Permanent-Magnet Synchronous Servo Motor |
| Nominal Power | Approximately 101 W |
| Nominal Speed | 3000 rpm |
| Maximum Speed | 6600 rpm |
| Nominal Torque | Approximately 0.32 Nm |
| Stall Torque | Approximately 0.36 Nm |
| Maximum Torque | Approximately 1 Nm |
| Feedback System | R0 Resolver |
| Shaft Configuration | Smooth Shaft, Without Oil Seal |
| Holding Brake | No |
| Cooling | Self-Cooling |
Compatible System and Applications
The motor is suitable for small indexing devices, testing equipment, compact packaging machinery, laboratory automation and light positioning axes. The servo drive must provide the correct resolver interface and appropriate motor current capacity.
Maintenance and Replacement Notes
Do not substitute this resolver motor with the B1 encoder version without checking the drive interface and cable set. Verify the complete model, motor revision, shaft, brake configuration, connector direction and Automation Studio device configuration.
Related Models
Related models include 8LVA13.B1030D000-0 with B1 EnDat feedback, 8LVA13.B1030D200-0 with a brake and larger 8LVA23 resolver configurations.
Inquiry and Supply Notes
Please provide the motor nameplate, drive model and feedback cable information. Confirm condition, hardware revision and regional availability before quotation.
