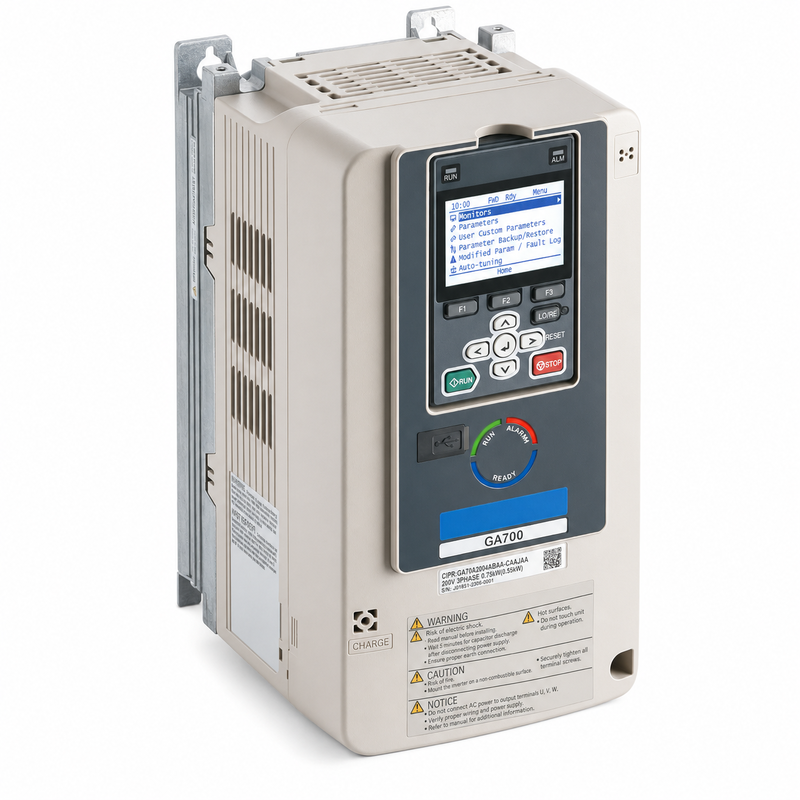

Yaskawa CIPR-GA70C4023BBAA-BAAAAA GA700 Vector VFD 400V 11kW 23.4A

Product Overview

The Yaskawa CIPR-GA70C4023BBAA-BAAAAA is a European GA700 vector drive rated for three-phase 380-480 VAC systems. It supplies 11 kW and 23.4 A under Normal Duty operation or 7.5 kW and 18 A under Heavy Duty operation. The drive combines advanced motor control, integrated C3 EMC filtering, functional-safety capability and flexible option-card expansion for industrial automation systems.

Main Features

• Dual-duty configuration supports both variable-torque and constant-torque loads.
• V/f and vector control for induction and compatible synchronous motors.
• 23.4 A Normal Duty output with 110% overload capability.
• 18 A Heavy Duty output with 150% overload capability.
• Integrated C3 EMC filter reduces the need for a separate external filter.
• Built-in braking transistor supports controlled dynamic deceleration.
• Dual-channel Safe Torque Off supports SIL3 and PL e safety designs.
• LCD keypad and diagnostic functions simplify commissioning and maintenance.

Technical Specifications

Compatible System and Applications

This model is suitable for conveyors, mixers, pumps, compressors, packaging lines, production machines and process equipment. Heavy Duty selection is recommended for impact loads, frequent acceleration or applications requiring sustained low-speed torque.

Maintenance and Replacement Notes

Compare the complete order code, not only the GA70C4023 rating code. Confirm motor current, regional EMC requirements, braking resistor, option cards, communication network and control-terminal arrangement. Parameter backup and motor autotuning may be required during drive replacement.

Related Models

Related capacities include CIPR-GA70C4018BBAA-BAAAAA, CIPR-GA70C4031BBAA-BAAAAA and higher-rated GA700 C-version drives.

Inquiry and Supply Notes

Please provide the complete nameplate and information about the motor, load profile, braking cycle and network interface for compatibility confirmation.
