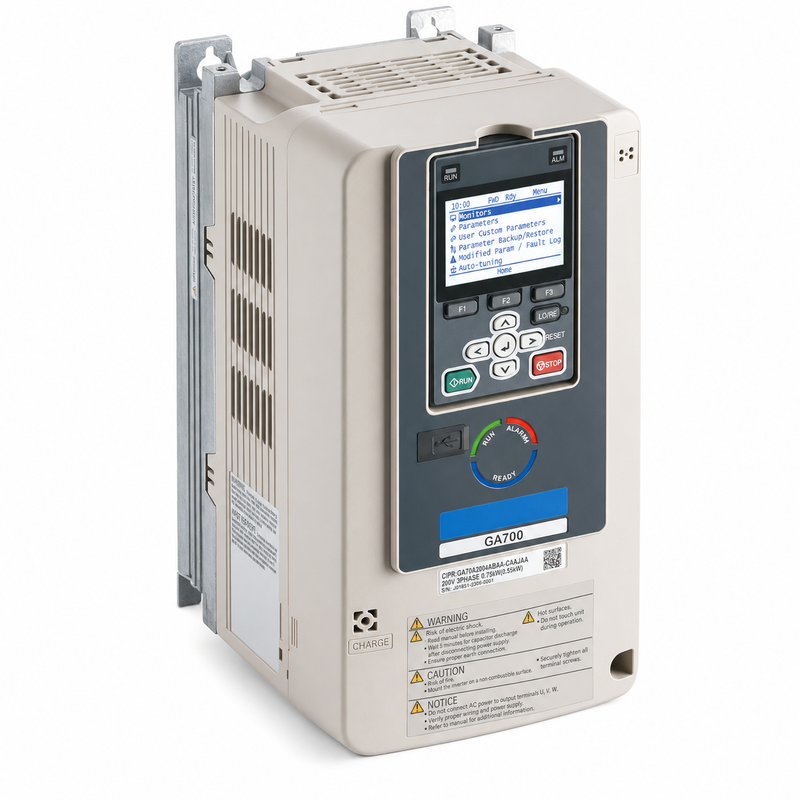

Yaskawa CIPR-GA70C4031BBAA-BAAAAA GA700 Vector VFD 400V 15kW 31A

Product Overview

The Yaskawa CIPR-GA70C4031BBAA-BAAAAA is a medium-power GA700 industrial AC drive with a 15 kW and 31 A Normal Duty rating and an 11 kW and 24 A Heavy Duty rating. Designed for European 400 V class installations, it includes an integrated C3 EMC filter and provides flexible control of induction, permanent-magnet and synchronous reluctance motors.

Main Features

• 15 kW Normal Duty rating for pumps, fans and moderate-overload machinery.
• 11 kW Heavy Duty rating for constant-torque and high-starting-torque loads.
• V/f, sensorless vector and supported closed-loop vector control.
• Integrated C3 EMC filter for industrial electromagnetic compatibility.
• 110% ND or 150% HD overload capability for 60 seconds.
• Built-in braking transistor for compatible external braking resistors.
• Dual-channel Safe Torque Off supports SIL3 and PL e applications.
• Expandable communication and encoder-feedback option architecture.

Technical Specifications

Compatible System and Applications

Typical applications include conveyors, mixers, compressors, pumps, fans, processing machinery and automated production lines. The drive must be selected using output current and actual overload demand rather than motor power alone.

Maintenance and Replacement Notes

Verify the complete suffix, motor current, control method, EMC filter arrangement, braking requirements and installed communication cards. Confirm cabinet cooling and installation clearances before commissioning. Back up the existing drive parameters and check whether motor autotuning is required after replacement.

Related Models

Related lower-capacity models include CIPR-GA70C4023BBAA-BAAAAA and CIPR-GA70C4018BBAA-BAAAAA. Higher capacities should be selected according to motor current and duty classification.

Inquiry and Supply Notes

Please provide the complete nameplate, motor specifications, application load and option-card requirements when requesting a quotation.
